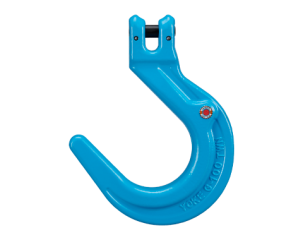

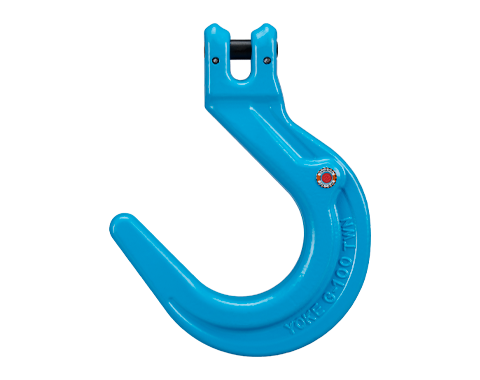

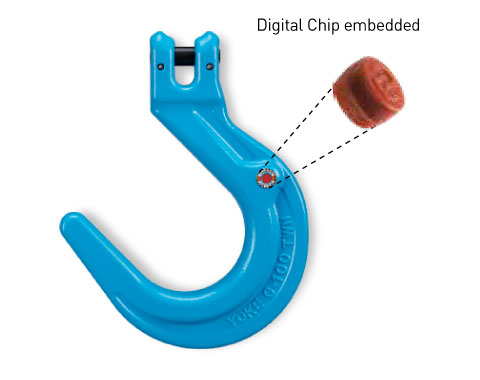

G-100 Clevis Foundry Hook

Item No.X-046

• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with DIN PAS 1061 and
ASTM A952/A 952M,EN 1677- 1.
• Certified by DGUV GS-OA-15-05
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Designed for the assembly of chain slings where
wide throat openings are necessary.
• Before using the hook, check whether hooks
without safety latches are allowed to be used for
the particular application.

Compare Datasheet

Metric (mm)
Imperial (inch)

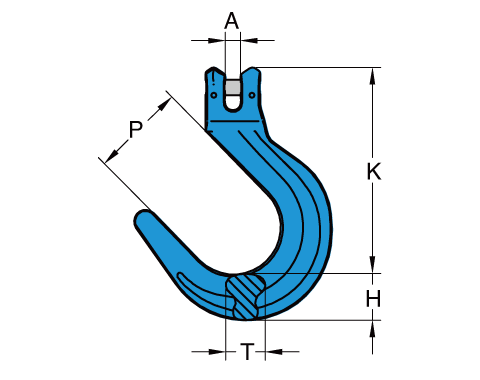

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions					N.W.
		tonnes	mm	A	H	K	P	T	kg
X-046-07	Compare	2.5	7, 8	10	30	133	62	20	0.95
X-046-10	Compare	4.0	10	12	35	162	74	29	1.80
X-046-13	Compare	6.7	13	15	39	180	88	32	3.60
X-046-16	Compare	10.0	16	18	46	216	101	41	6.40
X-046-20	Compare	16.0	20	24	59	279	116	57	11.20

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions					N.W.
		lbs	inch	A	H	K	P	T	lbs
X-046-07	Compare	5700	1/4-5/16	0.39	1.18	5.24	2.44	0.79	2.1
X-046-10	Compare	8800	3/8	0.47	1.38	6.38	2.91	1.14	4.0
X-046-13	Compare	15000	1/2	0.59	1.54	7.09	3.46	1.26	7.9
X-046-16	Compare	22600	5/8	0.71	1.81	8.50	3.98	1.61	14.1
X-046-20	Compare	35300	3/4	0.94	2.32	10.98	4.57	2.24	24.7
