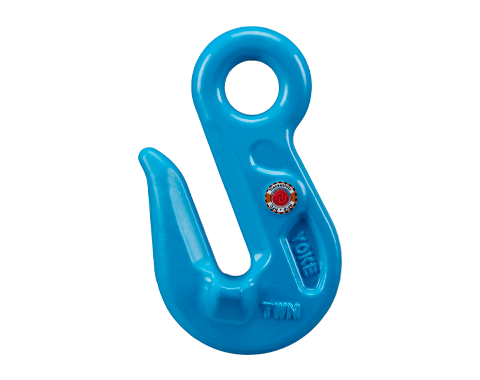

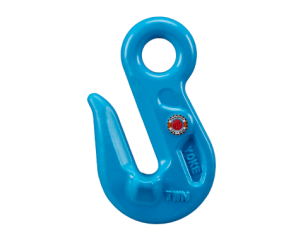

G-100 Eye Grab Hook

Item No.X-041

• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with DIN 5692, EN
1677-1 and ASTM A952/A 952M.
• Certified by DGUV GS-OA-15-05.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Not for use with Omega Link
• Enables full WLL while in use, thanks to supporting
wings which prevent chain link deformation.

Compare Datasheet

Metric (mm)
Imperial (inch)

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions						N.W.
		tonnes	mm	A	B	F	G	K	P	kg
X-041-06	Compare	1.4	6	13	7	26	8	50	8	0.2
X-041-07	Compare	2.5	7, 8	16	10	30	9	62	10	0.3
X-041-10	Compare	4.0	10	20	13	40	13	82	13	0.6
X-041-13	Compare	6.7	13	26	16	52	16	107	17	1.4
X-041-16	Compare	10.0	16	30	18	70	20	132	21	2.4
X-041-20	Compare	16.0	20	40	22	73	24	148	23	4.0
X-041-22	Compare	19.0	22	42	24	86	26	166	26	5.0
X-041-26	Compare	26.5	26	50	30	110	32	207	33	10.0
X-041-32	Compare	40.0	32	62	37	130	42	266	40	24.0

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions						N.W.
		lbs	inch	A	B	F	G	K	P	lbs
X-041-06	Compare	3200	7/32	0.51	0.28	1.02	0.31	1.97	0.31	0.4
X-041-07	Compare	5700	1/4 - 5/16	0.63	0.39	1.18	0.35	2.44	0.39	0.7
X-041-10	Compare	8800	3/8	0.79	0.51	1.57	0.51	3.23	0.51	1.3
X-041-13	Compare	15000	1/2	1.02	0.63	2.05	0.63	4.21	0.67	3.1
X-041-16	Compare	22600	5/8	1.18	0.71	2.76	0.79	5.20	0.83	5.3
X-041-20	Compare	35300	3/4	1.57	0.87	2.87	0.94	5.83	0.91	8.8
X-041-22	Compare	42700	7/8	1.65	0.94	3.39	1.02	6.54	1.02	11.0
X-041-26	Compare	59700	1	1.97	1.18	4.33	1.26	8.15	1.30	22.0
X-041-32	Compare	90400	1-1/4	2.44	1.46	5.12	1.65	10.47	1.57	52.9
