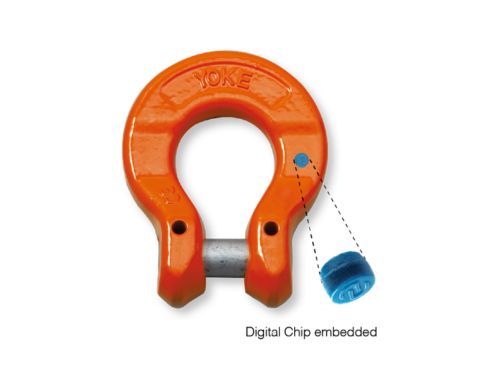

DA Omega Link DA-018
Item No.DA-018
● Forged alloy steel quenched and tempered.
● Tested and manufactured in accordance with DNV- ST-E271, DNV-ST-E273 and EN 1677-1.
● Charpy tested in accordance with DNV-ST-E271.
● Certified by DNV-ST-E271 and DNV-ST-E273.
● Design factor 4:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -20°C (-4°F).
● Tested and manufactured in accordance with DNV- ST-E271, DNV-ST-E273 and EN 1677-1.
● Charpy tested in accordance with DNV-ST-E271.
● Certified by DNV-ST-E271 and DNV-ST-E273.
● Design factor 4:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -20°C (-4°F).

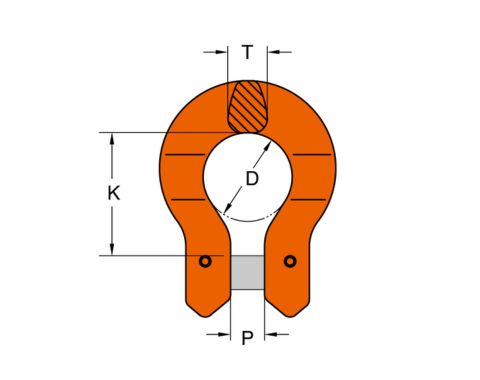

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | |||
|---|---|---|---|---|---|---|---|
| tonnes | D | K | P | T | |||
| DA-018-06 | Compare | 1.12 | 6 | 21 | 29 | 7 | 9 |
| DA-018-07 | Compare | 2 | 7,8 | 27 | 36 | 9 | 11 |
| DA-018-10 | Compare | 3.15 | 10 | 32 | 44 | 12 | 15 |
| DA-018-13 | Compare | 5.3 | 13 | 42 | 55 | 16 | 17 |
| DA-018-16 | Compare | 8 | 16 | 50 | 69 | 18 | 22 |
| DA-018-20 | Compare | 12.5 | 18,20 | 58 | 83 | 22 | 28 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | |||
|---|---|---|---|---|---|---|---|
| lbs | D | K | P | T | |||
| DA-018-06 | Compare | 2500 | 7/32 | 0.83 | 1.15 | 0.26 | 0.35 |
| DA-018-07 | Compare | 4500 | 1/4-5/16 | 1.04 | 1.41 | 0.37 | 0.43 |
| DA-018-10 | Compare | 7100 | 45724 | 1.26 | 1.73 | 0.46 | 0.57 |
| DA-018-13 | Compare | 12000 | 45659 | 1.65 | 2.18 | 0.61 | 0.67 |
| DA-018-16 | Compare | 18100 | 45785 | 1.97 | 2.73 | 0.71 | 0.87 |
| DA-018-20 | Compare | 28300 | 45720 | 2.28 | 3.27 | 0.85 | 1.08 |
