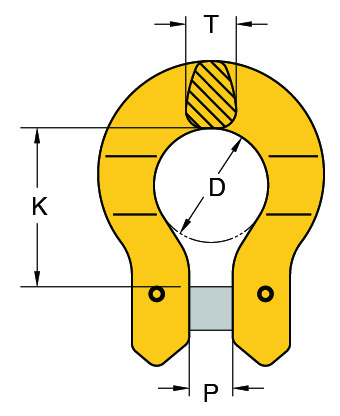

| Item NO. | file download | Compare | For Grade 80 Chain | Working Load Limit | Dimensions | N.W. | |||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonnes | D | K | P | T | kg | |||
| 8-018-06 | Download | Compare | 6 | 1.12 | 22 | 29 | 7 | 9 | 0.1 |
| 8-018-07 | Download | Compare | 7, 8 | 2 | 27 | 36 | 9 | 11 | 0.2 |
| 8-018-10 | Download | Compare | 10 | 3.15 | 32 | 44 | 12 | 15 | 0.4 |
| 8-018-13 | Download | Compare | 13 | 5.3 | 42 | 55 | 16 | 17 | 0.8 |
| 8-018-16 | Download | Compare | 16 | 8 | 50 | 69 | 18 | 22 | 1.6 |
| 8-018-20 | Download | Compare | 18, 20 | 12.5 | 58 | 81 | 22 | 28 | 2.1 |
| Item NO. | file download | Compare | For Grade 80 Chain | Working Load Limit | Dimensions | N.W. | |||
|---|---|---|---|---|---|---|---|---|---|
| inch | lbs | D | K | P | T | lbs | |||
| 8-018-06 | Download | Compare | 7/32 | 2,500 | 0.87 | 1.14 | 0.28 | 0.35 | 0.2 |
| 8-018-07 | Download | Compare | 1/4-5/16 | 4,500 | 1.06 | 1.42 | 0.35 | 0.43 | 0.4 |
| 8-018-10 | Download | Compare | 3/8 | 7,100 | 1.26 | 1.73 | 0.47 | 0.59 | 0.9 |
| 8-018-13 | Download | Compare | 1/2 | 12,000 | 1.65 | 2.17 | 0.63 | 0.67 | 1.8 |
| 8-018-16 | Download | Compare | 5/8 | 18,100 | 1.97 | 2.72 | 0.71 | 0.87 | 3.5 |
| 8-018-20 | Download | Compare | 3/4 | 28,300 | 2.28 | 3.19 | 0.87 | 1.1 | 4.6 |
