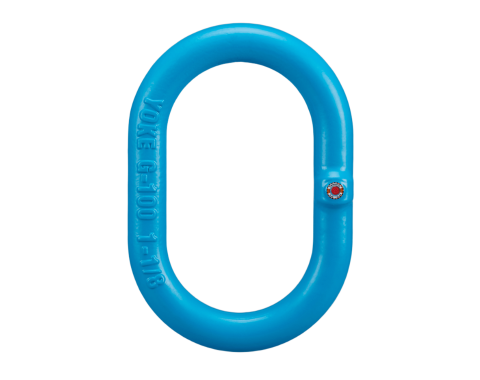

G-100 Forged Oblong Master Link
Item No.X-003
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with ASTM A952/A952M,
ASME B30.9, ASME B30.26, EN 1677-4 and OSHA
1910.184.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Designed for 1-2 legs Chain, Wire Rope and Webbing
Slings.
• Each link is marked with batch number that links
to the test certificate with full tracebility to raw
materials.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with ASTM A952/A952M,
ASME B30.9, ASME B30.26, EN 1677-4 and OSHA
1910.184.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Designed for 1-2 legs Chain, Wire Rope and Webbing
Slings.
• Each link is marked with batch number that links
to the test certificate with full tracebility to raw
materials.

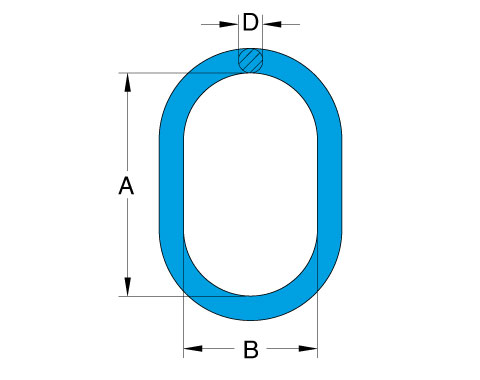

| Item NO. | Compare | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
| 1-leg | 2-leg | tonnes | kN | A | D | |||
| X-003-06 | Compare | 6 | - | 1.4 | 34 | 2.5 | 100 | 11 |
| X-003-0806 | Compare | 7,8 | 6 | 2.9 | 71 | 4 | 120 | 14 |
| X-003-1008 | Compare | 10 | 7,8 | 5.3 | 130 | 5 | 140 | 17 |
| X-003-13 | Compare | 13 | - | 6.7 | 164 | 6 | 150 | 19 |
| X-003-1310 | Compare | 13 | 10 | 8.4 | 206 | 6 | 160 | 22 |
| X-003-16 | Compare | 16 | - | 10 | 245 | 10 | 190 | 25 |
| X-003-1613 | Compare | 16 | 13 | 14.1 | 345 | 8 | 180 | 28 |
| X-003-19 | Compare | 19,20 | - | 16 | 392 | 10 | 200 | 30 |
| X-003-2216 | Compare | 22 | 16 | 21 | 515 | 16 | 240 | 34 |
| X-003-26 | Compare | 26 | - | 26.5 | 649 | 16 | 250 | 38 |
| X-003-2619 | Compare | 26 | 19,20 | 33.6 | 823 | 16 | 250 | 40 |
| X-003-3222 | Compare | 32 | 22 | 39.9 | 978 | 25 | 300 | 45 |
| Item NO. | Compare | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
| 1-leg | 2-leg | lbs | lbs | A | D | |||
| X-003-06 | Compare | 7/32 | - | 3000 | 7500 | 2.5 | 3.94 | 0.43 |
| X-003-0806 | Compare | 1/4-5/16 | 7/32 | 6300 | 15750 | 4 | 4.72 | 0.55 |
| X-003-1008 | Compare | 45724 | 1/4-5/16 | 11600 | 29000 | 5 | 5.51 | 0.67 |
| X-003-13 | Compare | 45659 | - | 14700 | 36750 | 6 | 5.91 | 0.75 |
| X-003-1310 | Compare | 45659 | 45724 | 18500 | 46250 | 6 | 6.3 | 0.87 |
| X-003-16 | Compare | 45785 | - | 22000 | 55000 | 10 | 7.48 | 0.98 |
| X-003-1613 | Compare | 45785 | 45659 | 31000 | 77500 | 8 | 7.09 | 1.1 |
| X-003-19 | Compare | 45720 | - | 35200 | 88000 | 10 | 7.87 | 1.18 |
| X-003-2216 | Compare | 45846 | 45785 | 46200 | 115500 | 16 | 9.45 | 1.34 |
| X-003-26 | Compare | 1 | - | 58400 | 146000 | 16 | 9.84 | 1.5 |
| X-003-2619 | Compare | 1 | 45720 | 74000 | 185000 | 16 | 9.84 | 1.57 |
| X-003-3222 | Compare | 1-1/4 | 45846 | 87900 | 219750 | 25 | 11.81 | 1.77 |
