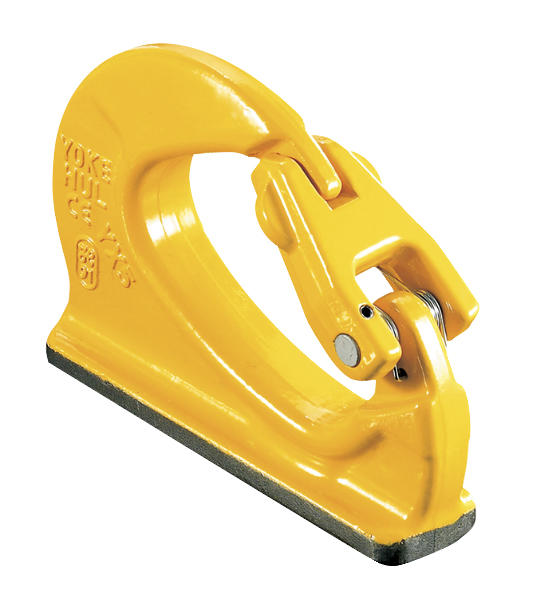

• Manufactured from forged alloy steel, quenched and tempered.
• Tested and certified by DGUV GS-HM-36.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• WLL forged onto each product for quick and easy identification.
• Lugs designed to assist the welding process.
| Item NO. | Compare | Rope Size | Wire Line Size | Normina Size | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

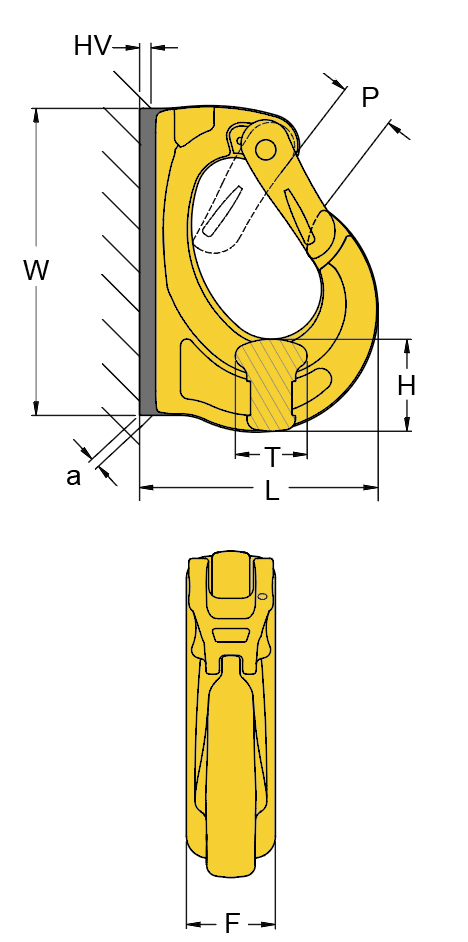

| a | F | H | HV | L | P | T | W | |||||
| 8-081-01 | Compare | 2.13 | 230 | 10.1 | 4 | 25 | 27 | 7 | 72 | 18 | 18 | 95 |
| 8-081-02 | Compare | 2.27 | 470 | 14.5 | 5 | 30 | 30 | 8 | 85 | 25 | 20 | 115 |
| 8-081-03 | Compare | 3.36 | 800 | 35.2 | 6 | 35 | 30 | 9 | 105 | 28 | 23 | 133 |
| 8-081-04 | Compare | 3.36 | 1100 | 35.2 | 7 | 42 | 38 | 10 | 111 | 28 | 30 | 142 |
| 8-081-05 | Compare | - | - | - | 7 | 44 | 47 | 12 | 132 | 30 | 31 | 167 |
| 8-081-08 | Compare | - | - | - | 8 | 50 | 52 | 12 | 134 | 32 | 39 | 176 |
| 8-081-10 | Compare | - | - | - | 8 | 56 | 56 | 13 | 168 | 44 | 42 | 222 |
| 8-081-15 | Compare | - | - | - | 10 | 61 | 67 | 14 | 184 | 54 | 45 | 242 |
| Item NO. | Compare | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| a | F | H | HV | L | P | T | W | ||
| 8-081-01 | Compare | 0.16 | 0.98 | 1.06 | 0.28 | 2.83 | 0.71 | 0.71 | 3.74 |
| 8-081-02 | Compare | 0.2 | 1.18 | 1.18 | 0.31 | 3.35 | 0.98 | 0.79 | 4.53 |
| 8-081-03 | Compare | 0.24 | 1.38 | 1.18 | 0.35 | 4.13 | 1.1 | 0.91 | 5.24 |
| 8-081-04 | Compare | 0.28 | 1.65 | 1.5 | 0.39 | 4.37 | 1.1 | 1.18 | 5.59 |
| 8-081-05 | Compare | 0.28 | 1.73 | 1.85 | 0.47 | 5.2 | 1.18 | 1.22 | 6.57 |
| 8-081-08 | Compare | 0.31 | 1.97 | 2.05 | 0.47 | 5.28 | 1.26 | 1.54 | 6.93 |
| 8-081-10 | Compare | 0.31 | 2.2 | 2.2 | 0.51 | 6.61 | 1.73 | 1.65 | 8.74 |
| 8-081-15 | Compare | 0.39 | 2.4 | 2.64 | 0.55 | 7.24 | 2.13 | 1.77 | 9.53 |
