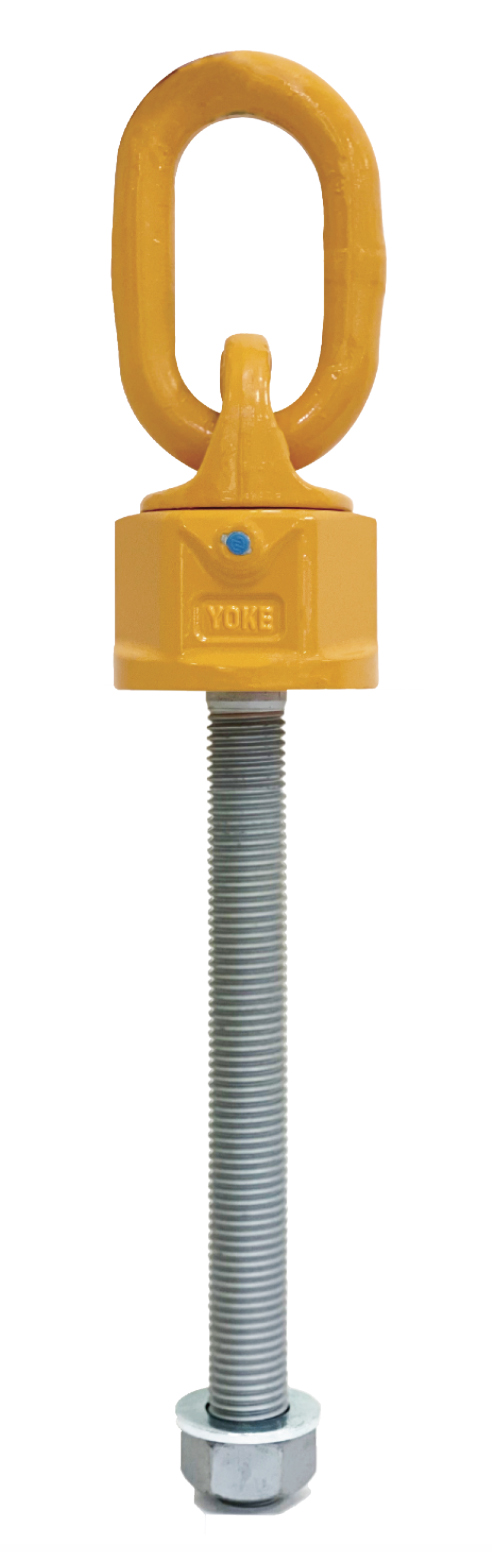

Swivel Point, Long Bolt
Item No.8-273 and 8-274

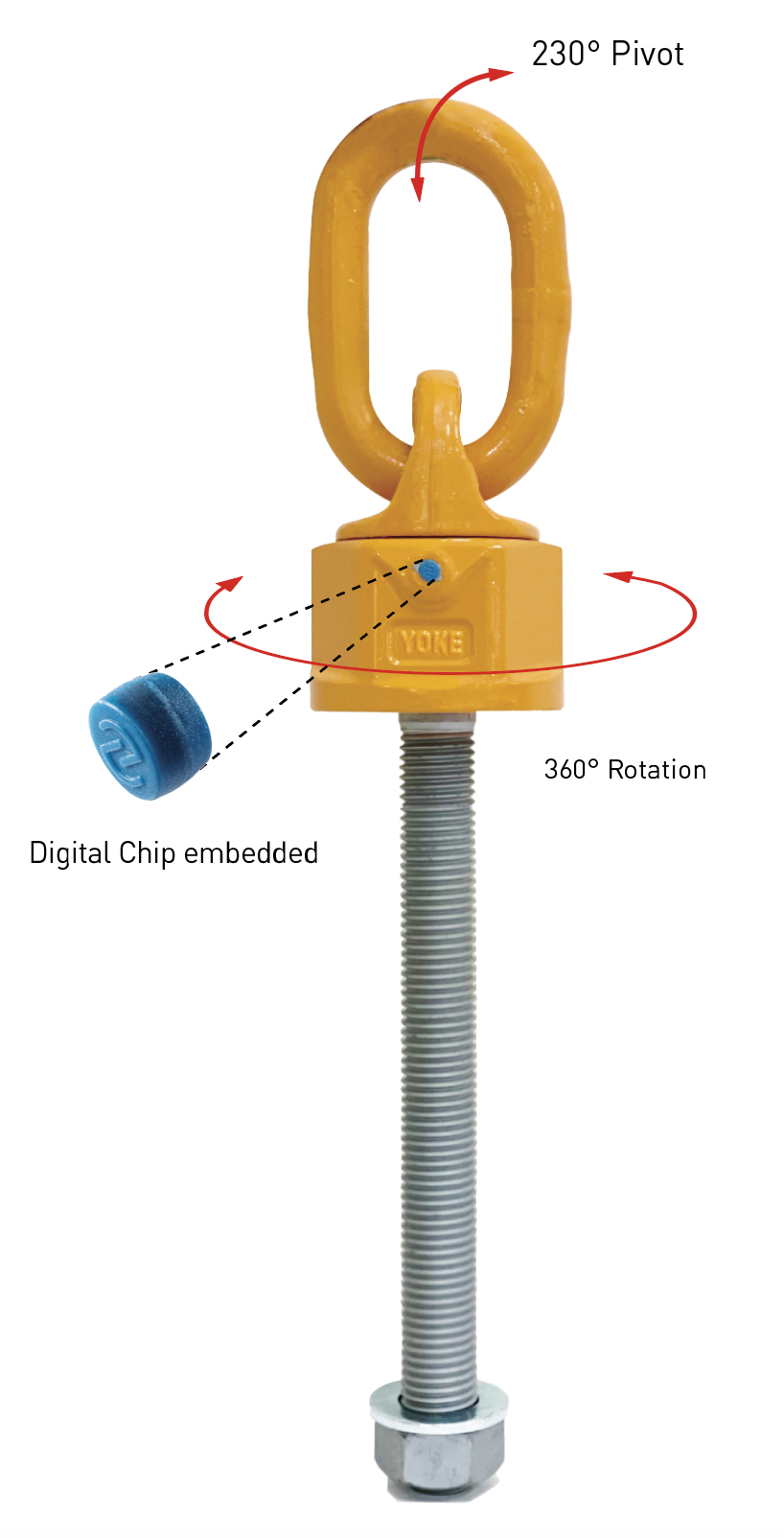

• Pivots to 230°, rotates through 360° due to its unique ball bearing design.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1 and EN 1677-4.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and Traceability Code links to Test Certificate sheet.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged hexagon-shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn continuously in a 90-degree direction at full load.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1 and EN 1677-4.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and Traceability Code links to Test Certificate sheet.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged hexagon-shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn continuously in a 90-degree direction at full load.
