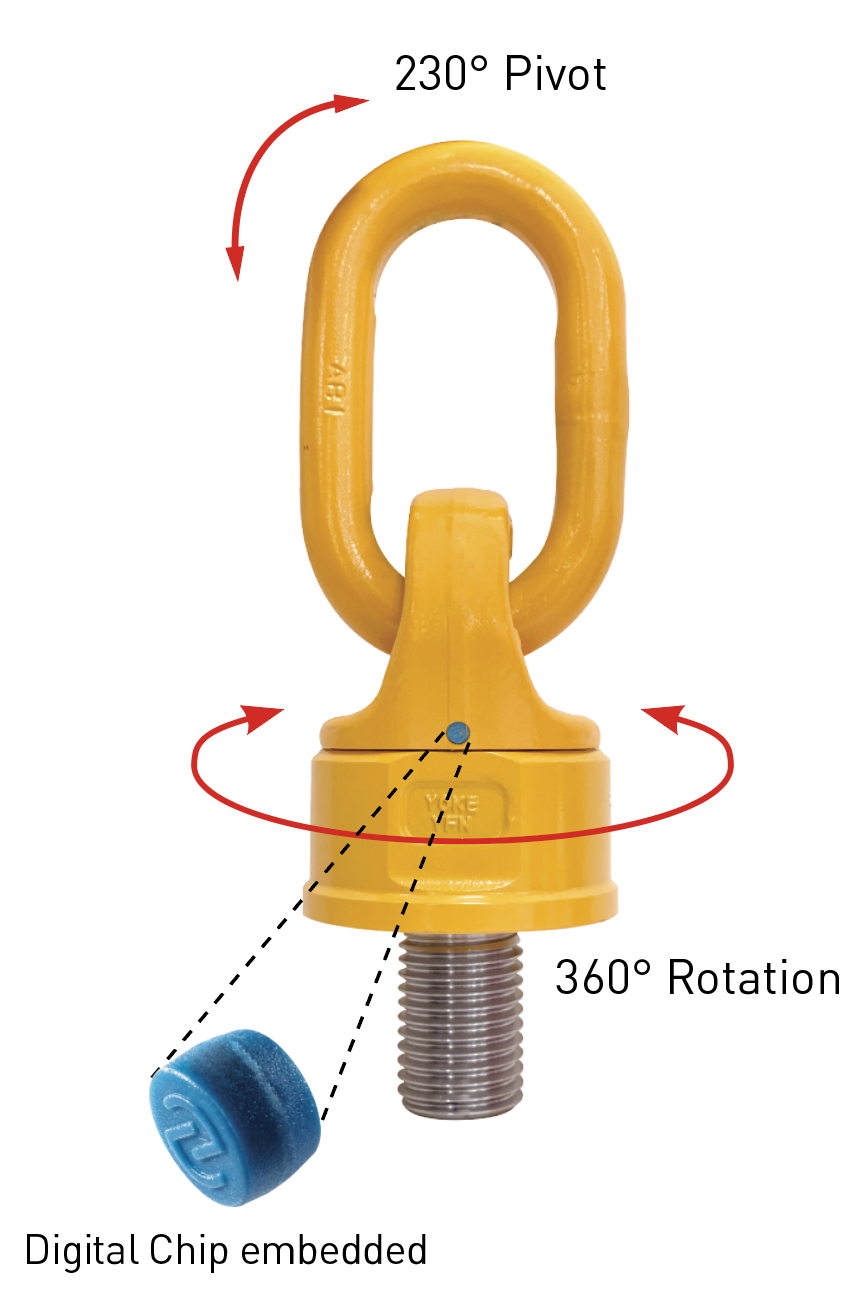

•Pivots to 230°, rotates through 360° due to its
unique ball bearing design.
• Manufactured from forged alloy steel, quenched
and tempered.
• Tested in accordance with EN 1677-1 and EN
1677-4.
• Load rated parts are 100% magnaflux crack
detected.
• Individual forged parts and Traceability Code
links to Test Certificate sheet.
• Bolts are UNC thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• All YOKE Lifting points meet or exceed all the
requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged
hexagon shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn
continuously in 90 degree direction at full load.
United States Patent: 10607128
» UK Patent: 3627396
» German Patent: 602018032891.2
» Italy Patent: 3627396
» Japan Patent: 3219858
| Item NO. | Compare |
|---|---|
