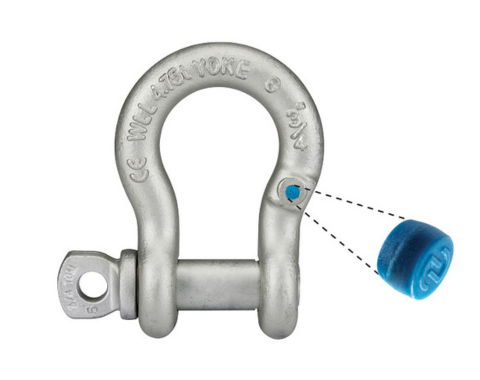

Shackle 8-837
Item No.8-837
● Shackles are forged carbon steel with alloy pin,
quenched and tempered.
● Meet the performance requirements of US Federal
Specification RR-C-271, Type IVA, Grade A, Class 2.
● Shackles are Type Approved by CE & UKCA.
● Size and the Working Load Limit permanently shown on
each shackle.
● All shackles with Traceability Code which links to Test
Certificate and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 6:1
● 20,000 cycle fatigue rated to 1.5 times Working Load
Limit.
● 100% magnaflux crack detection during manufacturing.
● Hot dip galvanized.
quenched and tempered.
● Meet the performance requirements of US Federal
Specification RR-C-271, Type IVA, Grade A, Class 2.
● Shackles are Type Approved by CE & UKCA.
● Size and the Working Load Limit permanently shown on
each shackle.
● All shackles with Traceability Code which links to Test
Certificate and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 6:1
● 20,000 cycle fatigue rated to 1.5 times Working Load
Limit.
● 100% magnaflux crack detection during manufacturing.
● Hot dip galvanized.
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | D | E | G | H | W | |||
| 8-837-05 | Compare | 0.3 | 5 | 22 | 6 | 17 | 15 | 38 | 10 |
| 8-837-06 | Compare | 0.5 | 6 | 28 | 8 | 20 | 16 | 47 | 12 |
| 8-837-08 | Compare | 0.75 | 8 | 31 | 9.5 | 21 | 19 | 54 | 12 |
| 8-837-10 | Compare | 1 | 10 | 36 | 11 | 26 | 23 | 65 | 16 |
| 8-837-11 | Compare | 1.5 | 11 | 43 | 13 | 30 | 27 | 75 | 19 |
| 8-837-13 | Compare | 2 | 13 | 47 | 16 | 33 | 30 | 85 | 20 |
| 8-837-16 | Compare | 3.25 | 16 | 61 | 19 | 43 | 38 | 106 | 27 |
| 8-837-19 | Compare | 4.75 | 19 | 72 | 22 | 50 | 46 | 126 | 33 |
| 8-837-22 | Compare | 6.5 | 22 | 86 | 26 | 58 | 53 | 148 | 38 |
| 8-837-26 | Compare | 8.5 | 26 | 96 | 28 | 69 | 61 | 166 | 44 |
| 8-837-28 | Compare | 9.5 | 28 | 111 | 32 | 74 | 68 | 190 | 46 |
| 8-837-32 | Compare | 12 | 32 | 121 | 36 | 84 | 76 | 210 | 54 |
| 8-837-36 | Compare | 13.5 | 36 | 134 | 38 | 92 | 84 | 232 | 59 |
| 8-837-38 | Compare | 17 | 38 | 146 | 42 | 99 | 92 | 254 | 60 |
| 8-837-45 | Compare | 25 | 45 | 178 | 51 | 127 | 106 | 313 | 73 |
| 8-837-50 | Compare | 35 | 50 | 197 | 57 | 146 | 122 | 347 | 83 |
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | D | E | G | H | W | |||
| 8-837-05 | Compare | 0.3 | 45732 | 0.87 | 0.24 | 0.67 | 0.59 | 1.5 | 0.39 |
| 8-837-06 | Compare | 0.5 | 45661 | 1.1 | 0.31 | 0.79 | 0.63 | 1.85 | 0.47 |
| 8-837-08 | Compare | 0.75 | 45793 | 1.22 | 0.37 | 0.83 | 0.75 | 2.13 | 0.47 |
| 8-837-10 | Compare | 1 | 45724 | 1.42 | 0.43 | 1.02 | 0.91 | 2.56 | 0.63 |
| 8-837-11 | Compare | 1.5 | 45854 | 1.69 | 0.51 | 1.18 | 1.06 | 2.95 | 0.75 |
| 8-837-13 | Compare | 2 | 45659 | 1.85 | 0.63 | 1.3 | 1.18 | 3.35 | 0.79 |
| 8-837-16 | Compare | 3.25 | 45785 | 2.4 | 0.75 | 1.69 | 1.5 | 4.17 | 1.06 |
| 8-837-19 | Compare | 4.75 | 45720 | 2.83 | 0.87 | 1.97 | 1.81 | 4.96 | 1.3 |
| 8-837-22 | Compare | 6.5 | 45846 | 3.39 | 1.02 | 2.28 | 2.09 | 5.83 | 1.5 |
| 8-837-26 | Compare | 8.5 | 1 | 3.78 | 1.1 | 2.72 | 2.4 | 6.54 | 1.73 |
| 8-837-28 | Compare | 9.5 | 1 - 1/8 | 4.37 | 1.26 | 2.91 | 2.68 | 7.48 | 1.81 |
| 8-837-32 | Compare | 12 | 1 - 1/4 | 4.76 | 1.42 | 3.31 | 2.99 | 8.27 | 2.13 |
| 8-837-36 | Compare | 13.5 | 1 - 3/8 | 5.28 | 1.5 | 3.62 | 3.31 | 9.13 | 2.32 |
| 8-837-38 | Compare | 17 | 1 - 1/2 | 5.75 | 1.65 | 3.9 | 3.62 | 10 | 2.36 |
| 8-837-45 | Compare | 25 | 1 - 3/4 | 7.01 | 2.01 | 5 | 4.17 | 12.32 | 2.87 |
| 8-837-50 | Compare | 35 | 2 | 7.76 | 2.24 | 5.75 | 4.8 | 13.66 | 3.27 |
