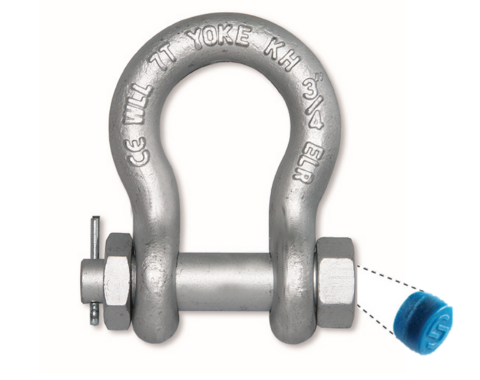

Shackle 8-808
Item No.8-808
● Shackles are forged carbon steel with alloy pin,
quenched and tempered.
● Meet the performance requirements of US Federal
Specification RR-C-271, Type IVA, Grade B, Class 3.
● Shackles are Type Approved by CE & UKCA.
● Size and the Working Load Limit permanently shown on
each shackle.
● All shackles with Traceability Code which links to Test
Certificate and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 5:1.
● 20,000 cycle fatigue rated to 1.5 times Working Load
Limit.
● 100% magnaflux crack detection during manufacturing.
● Hot dip galvanized.
quenched and tempered.
● Meet the performance requirements of US Federal
Specification RR-C-271, Type IVA, Grade B, Class 3.
● Shackles are Type Approved by CE & UKCA.
● Size and the Working Load Limit permanently shown on
each shackle.
● All shackles with Traceability Code which links to Test
Certificate and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 5:1.
● 20,000 cycle fatigue rated to 1.5 times Working Load
Limit.
● 100% magnaflux crack detection during manufacturing.
● Hot dip galvanized.
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | C | D | E | G | H | K | N | W | |||
| 8-808-08 | Compare | 45793 | 8 | 31 | - | 10 | 21 | 19 | 54 | - | - | 12 |
| 8-808-10 | Compare | 45724 | 10 | 36 | - | 11 | 26 | 23 | 65 | - | - | 16 |
| 8-808-11 | Compare | 45854 | 11 | 43 | - | 13 | 30 | 27 | 75 | - | - | 19 |
| 8-808-13 | Compare | 45659 | 13 | 47 | - | 16 | 33 | 30 | 85 | - | - | 20 |
| 8-808-16 | Compare | 45785 | 16 | 61 | - | 19 | 43 | 38 | 106 | - | - | 27 |
| 8-808-19 | Compare | 45720 | 19 | 72 | - | 22 | 50 | 46 | 126 | - | - | 33 |
| 8-808-22 | Compare | 45846 | 22 | 86 | - | 26 | 58 | 53 | 148 | - | - | 38 |
| 8-808-26 | Compare | 1 | 26 | 96 | - | 28 | 69 | 61 | 166 | - | - | 44 |
| 8-808-28 | Compare | 1 1/8 | 28 | 111 | - | 32 | 74 | 68 | 190 | - | - | 46 |
| 8-808-32 | Compare | 1 1/4 | 32 | 121 | - | 36 | 84 | 76 | 210 | - | - | 54 |
| 8-808-36 | Compare | 1 3/8 | 36 | 134 | - | 38 | 92 | 84 | 232 | - | - | 59 |
| 8-808-38 | Compare | 1 1/2 | 38 | 146 | - | 42 | 99 | 92 | 254 | - | - | 60 |
| 8-808-45 | Compare | 1 3/4 | 45 | 178 | - | 51 | 127 | 106 | 313 | - | - | 73 |
| 8-808-50 | Compare | 2 | 50 | 197 | - | 57 | 146 | 122 | 347 | - | - | 83 |
| 8-809-19 | Compare | 7 | 19 | 91 | 18 | 22 | 32 | 46 | 150 | 104 | 32 | 33 |
| 8-809-26 | Compare | 12.5 | 26 | 118 | 23 | 29 | 41 | 61 | 194 | 140 | 35 | 44 |
| 8-809-32 | Compare | 18 | 32 | 148 | 30 | 36 | 51 | 68 | 238 | 172 | 38 | 54 |
| 8-809-38 | Compare | 30 | 38 | 176 | 35 | 42 | 64 | 89 | 289 | 216 | 45 | 60 |
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | C | D | E | G | H | K | R | W | |||
| 8-808-08 | Compare | 45793 | 45793 | 1.22 | - | 0.37 | 0.83 | 0.75 | 2.13 | - | - | 0.47 |
| 8-808-10 | Compare | 45724 | 45724 | 1.42 | - | 0.43 | 1.02 | 0.91 | 2.56 | - | - | 0.63 |
| 8-808-11 | Compare | 45854 | 45854 | 1.69 | - | 0.51 | 1.18 | 1.06 | 2.95 | - | - | 0.75 |
| 8-808-13 | Compare | 45659 | 45659 | 1.85 | - | 0.63 | 1.3 | 1.18 | 3.35 | - | - | 0.79 |
| 8-808-16 | Compare | 45785 | 45785 | 2.4 | - | 0.75 | 1.69 | 1.5 | 4.17 | - | - | 1.06 |
| 8-808-19 | Compare | 45720 | 45720 | 2.83 | - | 0.87 | 1.97 | 1.81 | 4.96 | - | - | 1.3 |
| 8-808-22 | Compare | 45846 | 45846 | 3.39 | - | 1.02 | 2.28 | 2.09 | 5.83 | - | - | 1.5 |
| 8-808-26 | Compare | 1 | 1 | 3.78 | - | 1.1 | 2.72 | 2.4 | 6.54 | - | - | 1.73 |
| 8-808-28 | Compare | 1 1/8 | 1 1/8 | 4.37 | - | 1.26 | 2.91 | 2.68 | 7.48 | - | - | 1.81 |
| 8-808-32 | Compare | 1 1/4 | 1 1/4 | 4.76 | - | 1.42 | 3.31 | 2.99 | 8.27 | - | - | 2.13 |
| 8-808-36 | Compare | 1 3/8 | 1 3/8 | 5.28 | - | 1.5 | 3.62 | 3.31 | 9.13 | - | - | 2.32 |
| 8-808-38 | Compare | 1 1/2 | 1 1/2 | 5.75 | - | 1.65 | 3.9 | 3.62 | 10 | - | - | 2.36 |
| 8-808-45 | Compare | 1 3/4 | 1 3/4 | 7.01 | - | 2.01 | 5 | 4.17 | 12.32 | - | - | 2.87 |
| 8-808-50 | Compare | 2 | 2 | 7.76 | - | 2.24 | 5.75 | 4.8 | 13.66 | - | - | 3.27 |
| 8-809-19 | Compare | 7 | 45720 | 3.58 | 0.71 | 0.87 | 1.26 | 1.81 | 5.91 | 4.09 | 1.26 | 1.3 |
| 8-809-26 | Compare | 12.5 | 1 | 4.65 | 0.91 | 1.14 | 1.61 | 2.4 | 7.64 | 5.51 | 1.38 | 1.73 |
| 8-809-32 | Compare | 18 | 1 - 1/4 | 5.83 | 1.18 | 1.42 | 2.01 | 2.68 | 9.37 | 6.77 | 1.5 | 2.13 |
| 8-809-38 | Compare | 21 | 1 - 1/2 | 6.93 | 1.38 | 1.65 | 2.52 | 3.5 | 11.38 | 8.5 | 1.77 | 2.36 |
