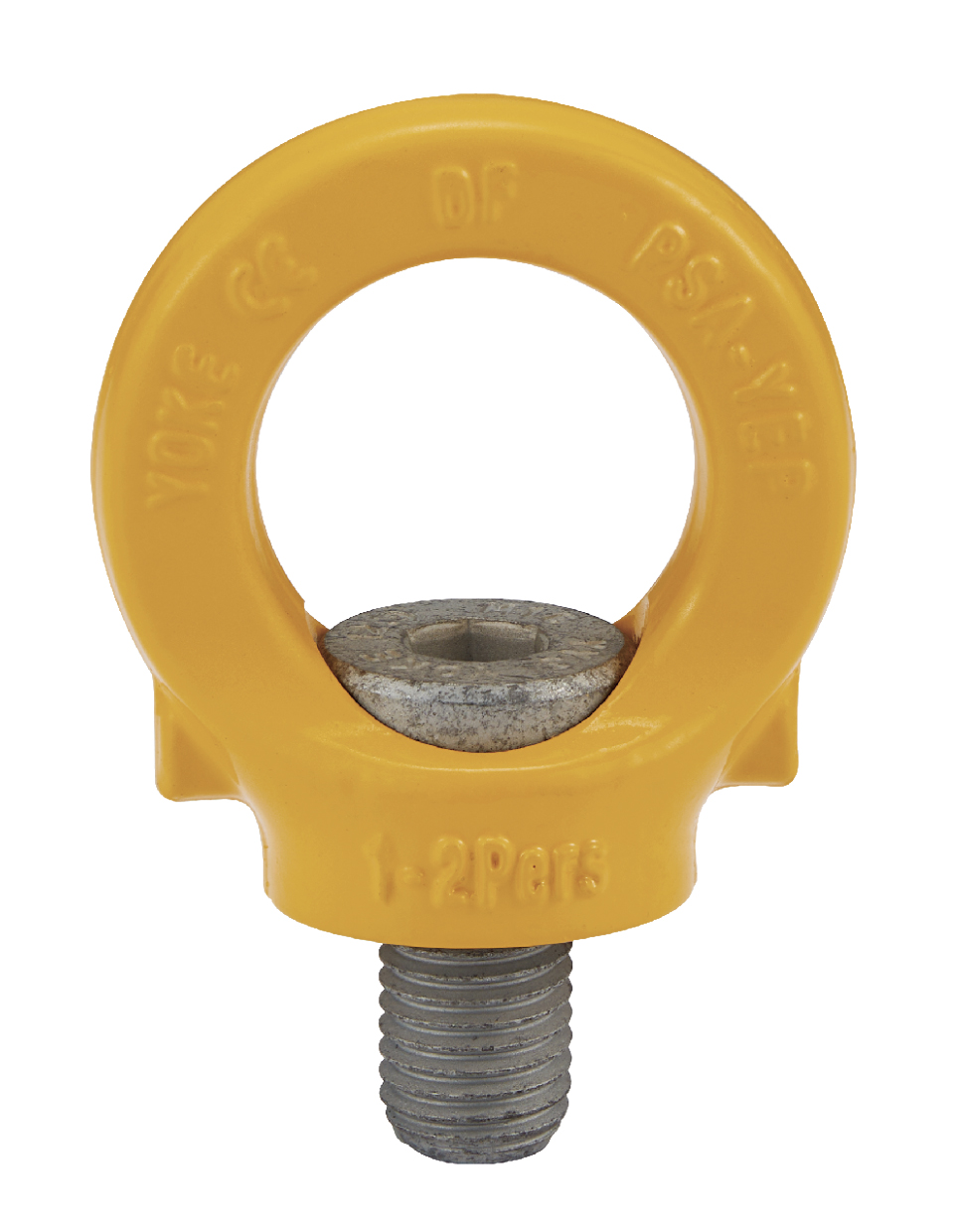

PSA-YEP
Item No.8-281

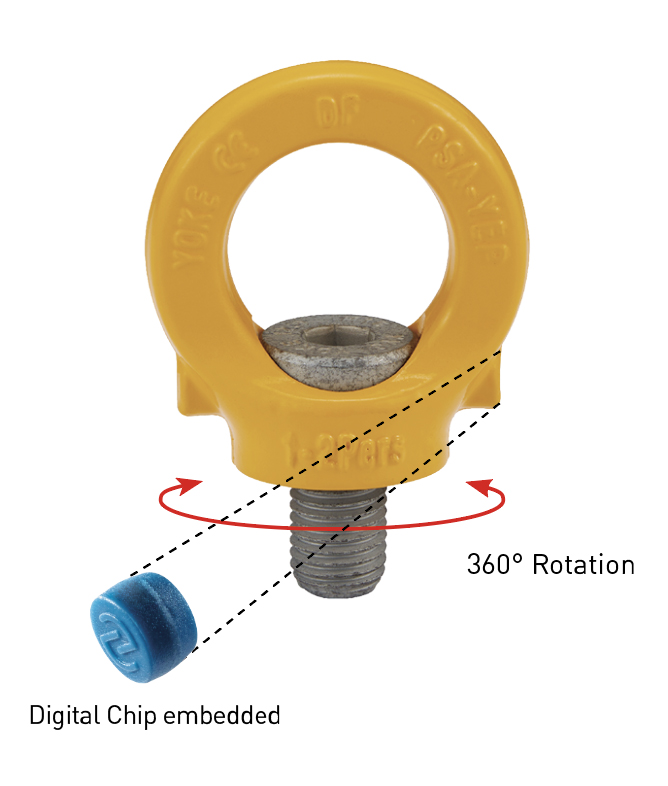

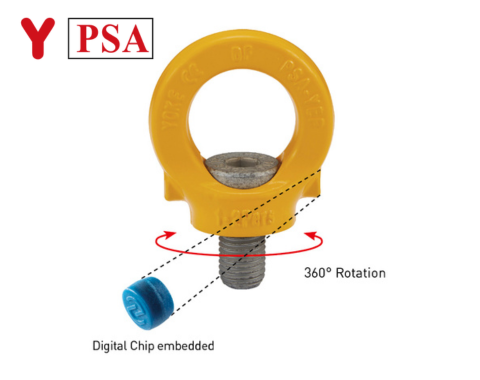

• Rotates through 360° adjustable in the direction of the load.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 795 or TS16415.
• Certified by PSA of DGUV.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Passed 22.2 KN/person Load testing.
• Passed 100kg or 150 kg dynamic fall testing (EU standard is 100 kg).
• Meets all requirements of the German BG BAU (Employer's insurance association of the building industry).
• Meets all requirements of DIN EN 795, DIN EN 50308, OSHA1926.502.
• Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons.
• YOKE yellow powder coating for high visibility.

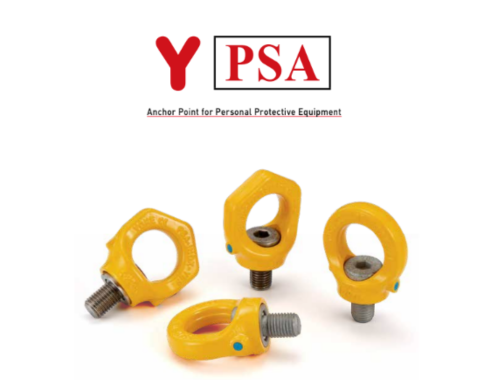

• PSA - Lifting point to be as an anchor point for personal protective equipment.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 795 or TS16415.
• Certified by PSA of DGUV.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Passed 22.2 KN/person Load testing.
• Passed 100kg or 150 kg dynamic fall testing (EU standard is 100 kg).
• Meets all requirements of the German BG BAU (Employer's insurance association of the building industry).
• Meets all requirements of DIN EN 795, DIN EN 50308, OSHA1926.502.
• Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons.
• YOKE yellow powder coating for high visibility.
• PSA - Lifting point to be as an anchor point for personal protective equipment.

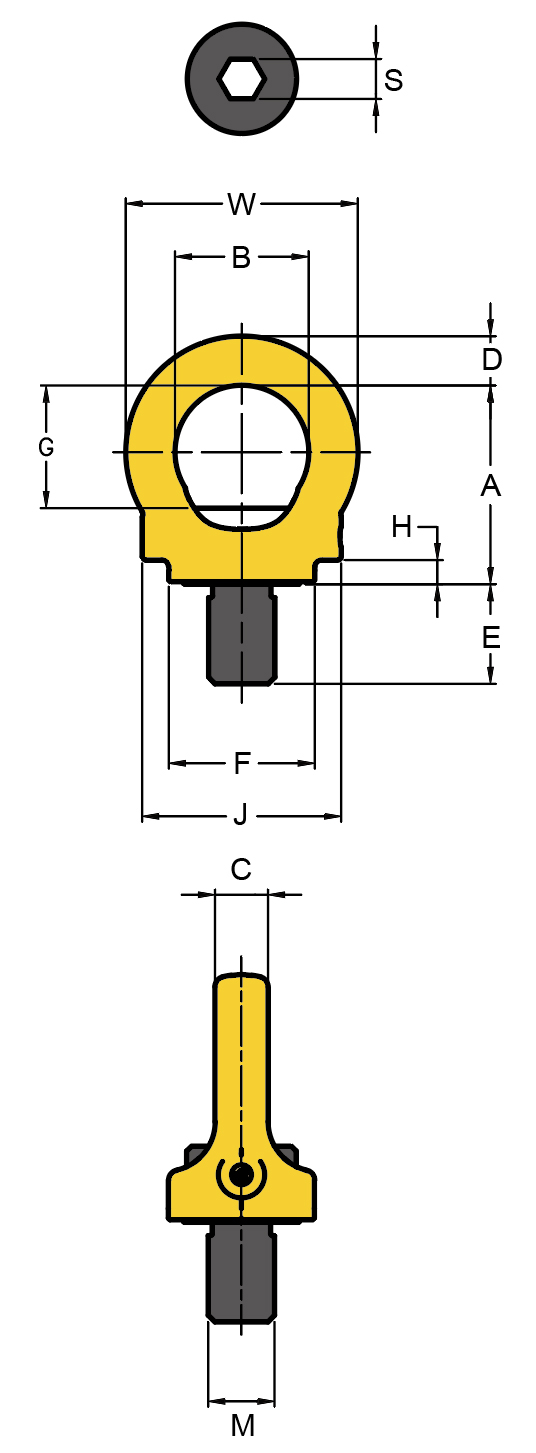

| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | A | C | D | E | F | G | H | J | S | W | Nm | kg | ||
| 8-281-007 | Compare | 1 Pers | M12x1.75 | 45 | 10 | 11 | 18 | 33 | 29 | 5 | 45 | 8 | 52 | 10 | 0.2 |
| 8-281-015 | Compare | 1-2 Pers | M16x2.0 | 52 | 14 | 13 | 24 | 35 | 33 | 8 | 52 | 10 | 61 | 30 | 0.3 |
| 8-281-023 | Compare | 1-2 Pers | M20x2.5 | 60 | 16 | 15 | 30 | 44 | 37 | 7 | 60 | 12 | 70 | 70 | 0.6 |
| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | A | C | D | E | F | G | H | J | S | W | ft.lbs | lbs | ||
| 8-281-007 | Compare | 1 Pers | M12x1.75 | 1.8 | 0.4 | 0.4 | 0.7 | 1.3 | 1.1 | 0.2 | 1.8 | 0.3 | 2 | 7 | 0.4 |
| 8-281-015 | Compare | 1-2 Pers | M16x2.0 | 2.0 | 0.6 | 0.5 | 0.9 | 1.4 | 1.3 | 0.3 | 2 | 0.4 | 2.4 | 20 | 0.7 |
| 8-281-023 | Compare | 1-2 Pers | M20x2.5 | 2.4 | 0.6 | 0.6 | 1.2 | 1.7 | 1.5 | 0.3 | 2.4 | 0.5 | 2.8 | 50 | 1.3 |
