Home Products Fall Protection Components Components-Overmolded Overmolded Alum D Ring

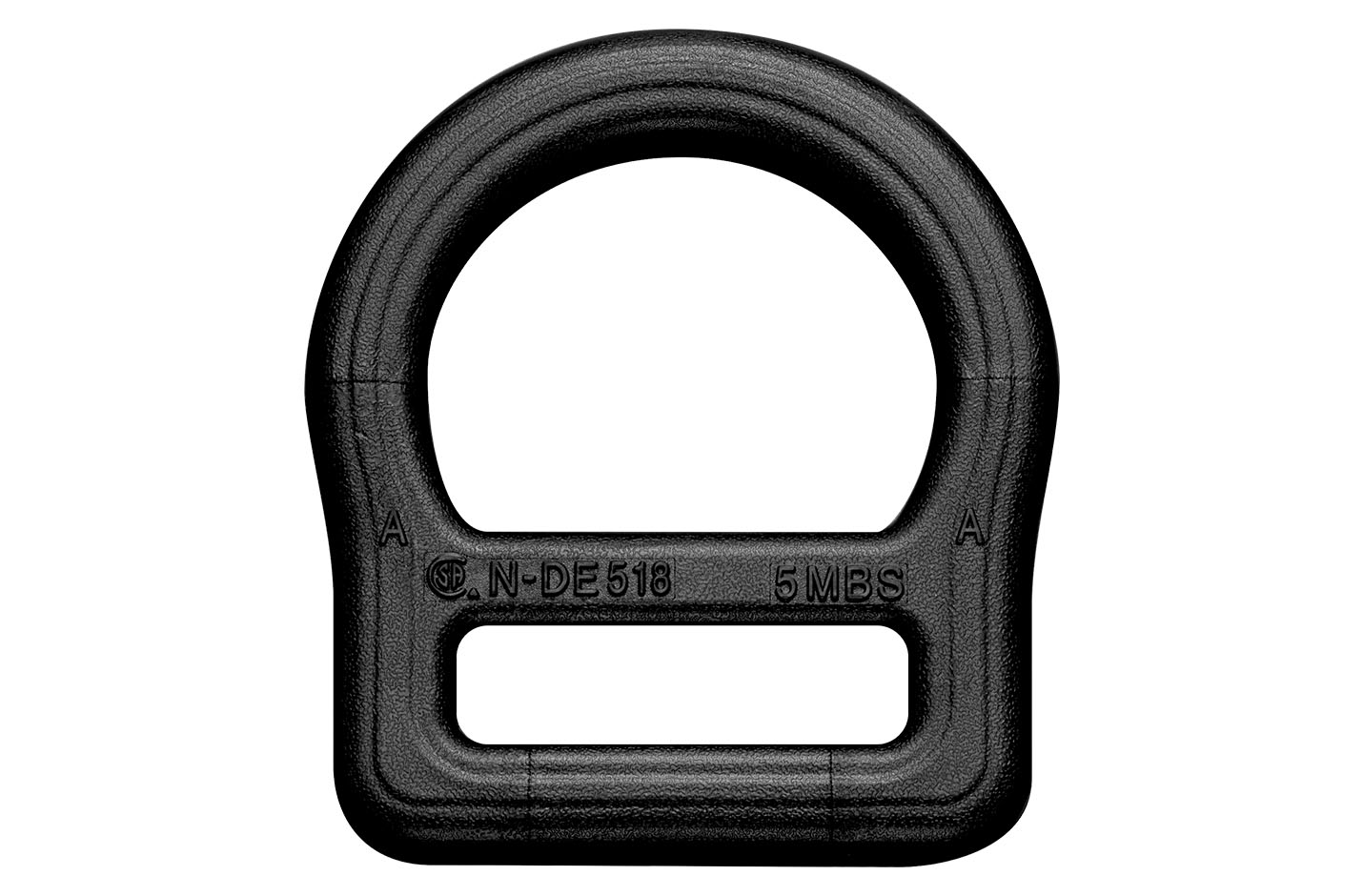

Overmolded Alum D Ring

Item No.N-DE518

Core:Aluminum alloy / Overmold: Reinforced nylon
Min. Breaking load : 5000 lbs / 23 kN
Meets:
● ANSI Z359.12-2019
● CSA Z259.12-16
Maximum 4kV Dielectric Resistance
Net weight : 2.9 oz. / 84 g

Compare Datasheet

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		g		ANSI Z359.12-2019	CSA Z259.12-16
N-DE518	Compare	84	5000 lbs / 23 kN	✔	✔	4kV	Aluminum alloy

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		oz.		ANSI Z359.12-2019	CSA Z259.12-16
N-DE518	Compare	2.9	5000 lbs / 23 kN	✔	✔	4kV	Aluminum alloy
