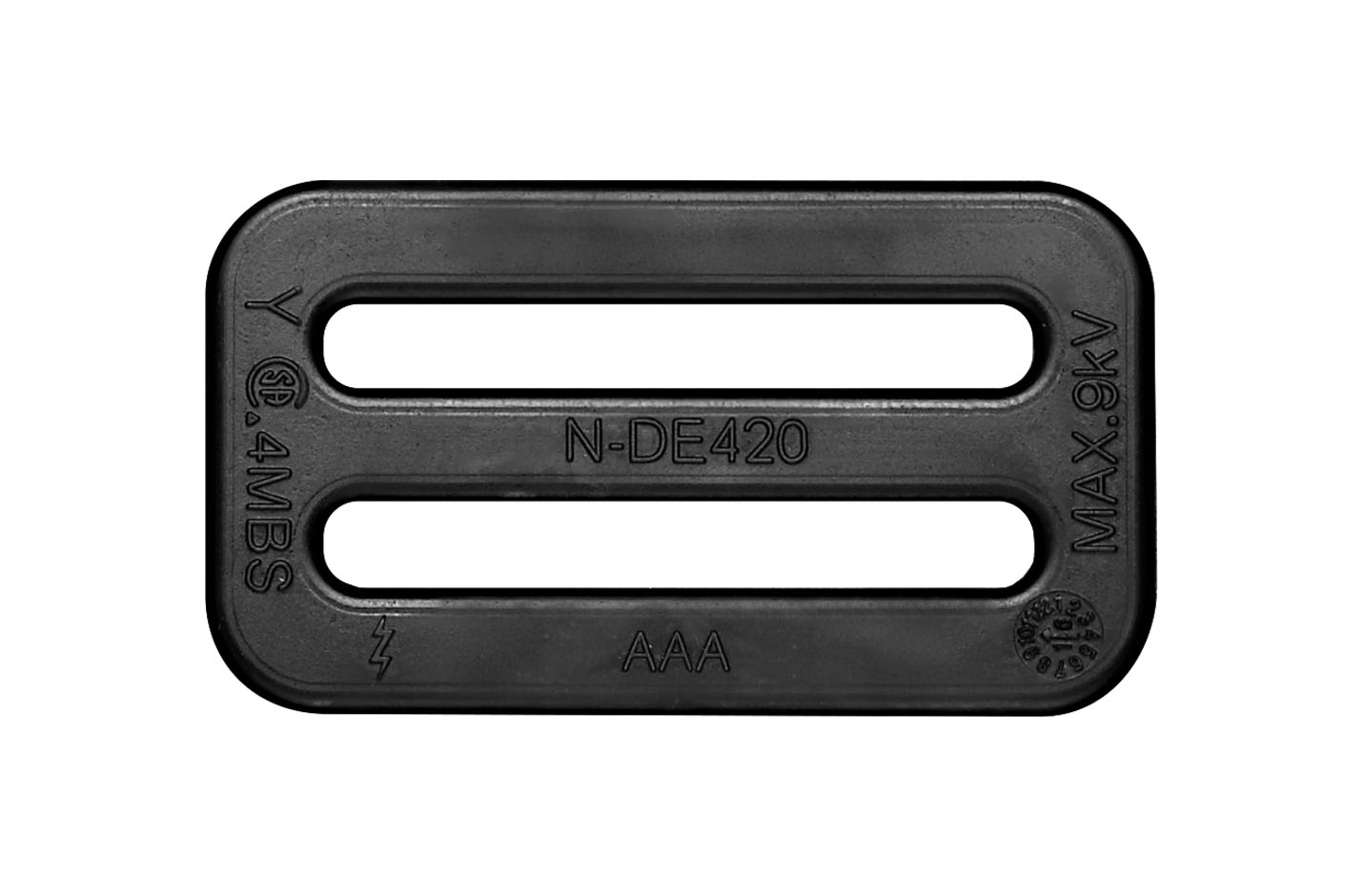

Overmolded Quick Buckle

Item No.N-DE420

Core:Sheet steel / Overmold: Reinforced nylon
Min. Breaking load : 4000 lbs / 18 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
Maximum 4kV Dielectric Resistance
Net weight : 1.3 oz. / 36 g

Compare Datasheet

Sales Sheet

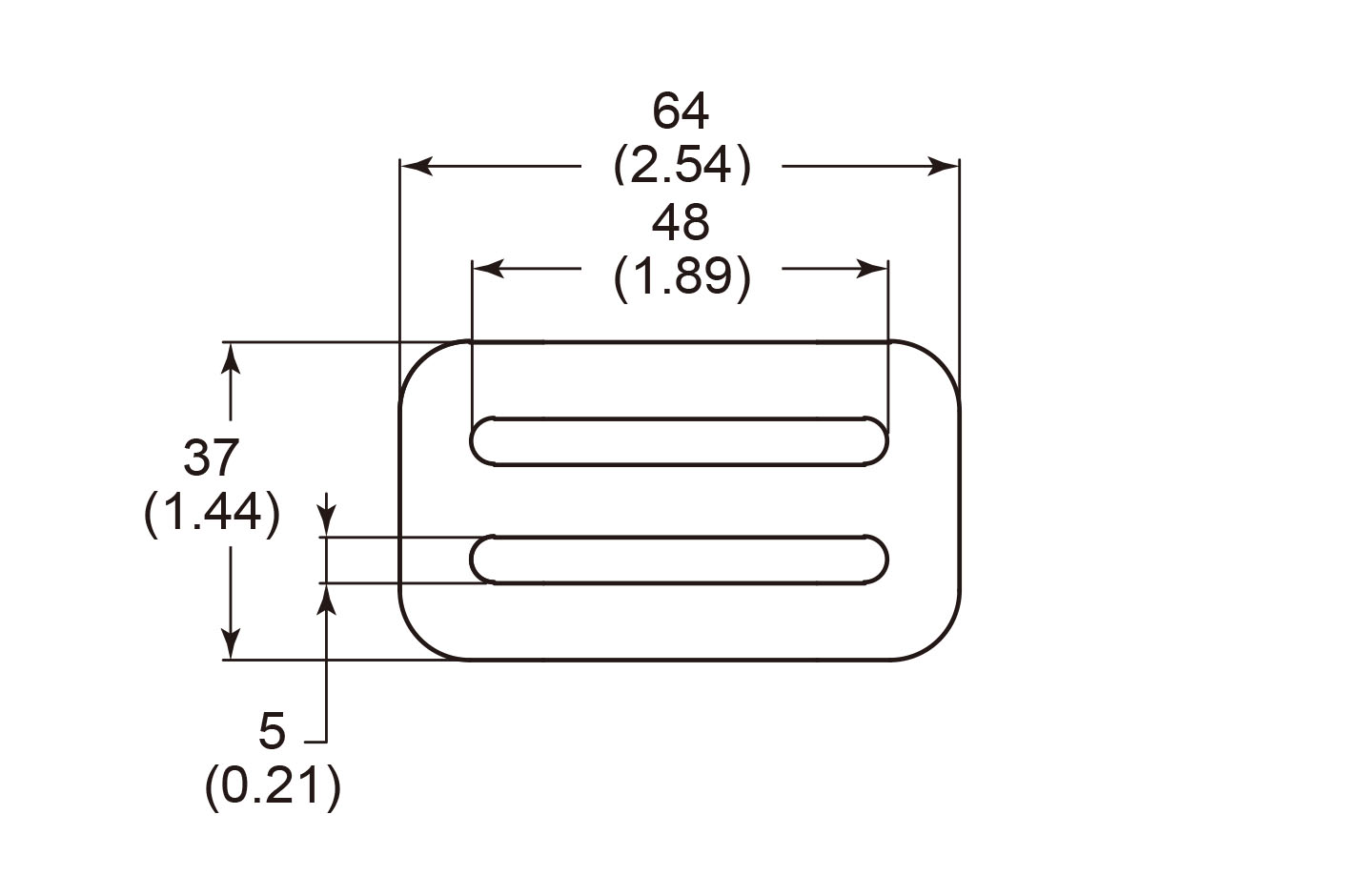

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		g		ANSI Z359.12-2019	CSA Z259.12-16
N-DE420	Compare	36	4000 lbs / 18 kN	✔	✔	4kV	Sheet steel

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		oz.		ANSI Z359.12-2019	CSA Z259.12-16
N-DE420	Compare	1.3	4000 lbs / 18 kN	✔	✔	4kV	Sheet steel
