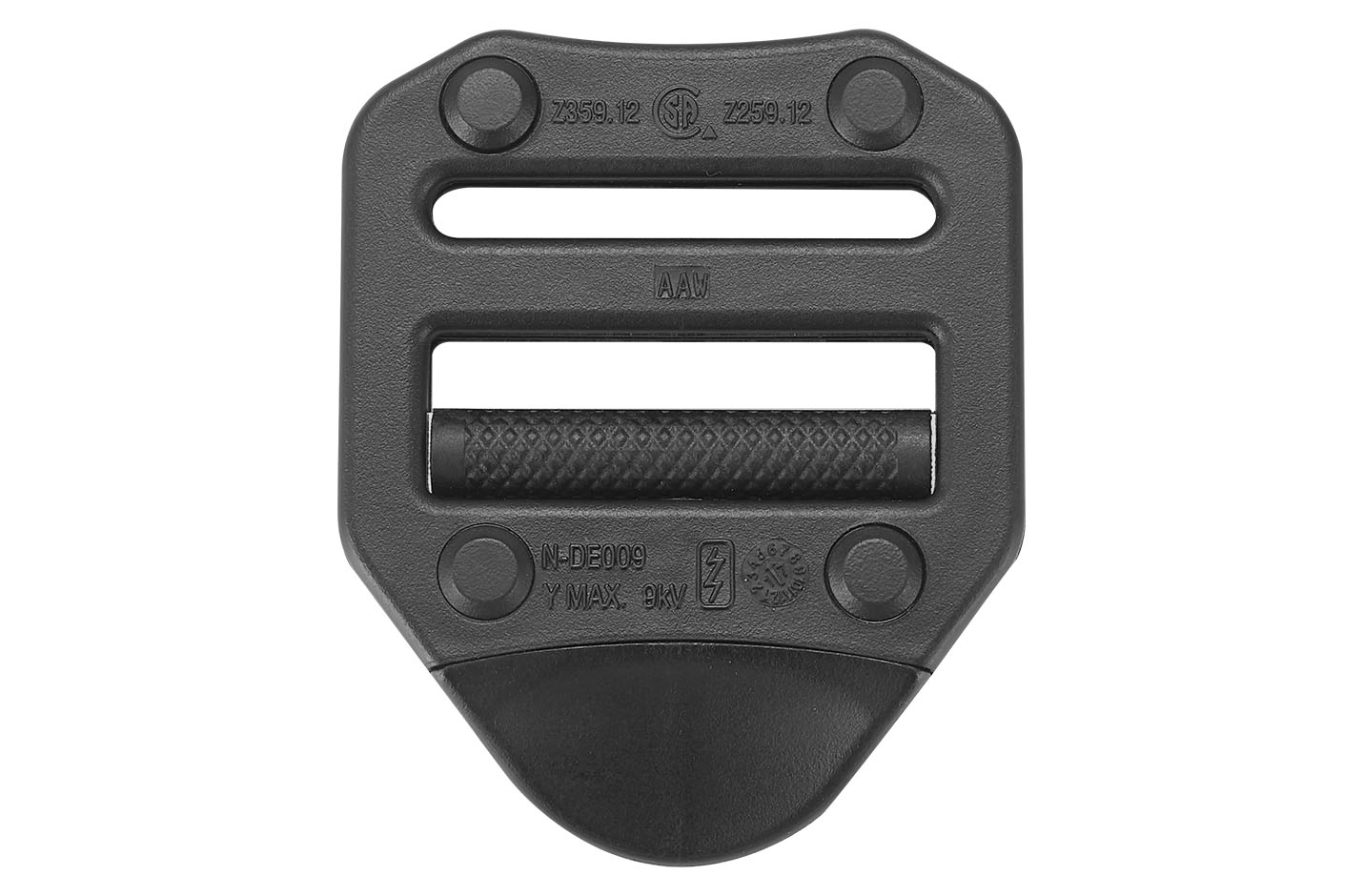

Overmolded O-Ring

Item No.N-DE009

Core:Sheet steel / Overmold: Glass fiber reinforced nylon
Min. Breaking load : 4000 lbs / 18 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
Maximum 9kV Dielectric Resistance
Net weight : 2.98 oz. / 85g

Compare Datasheet

Sales Sheet

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		g		ANSI Z359.12-2019	CSA Z259.12-16
N-DE009	Compare	85	4000 lbs / 18 kN	✔	✔	9kV	Sheet steel

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		oz.		ANSI Z359.12-2019	CSA Z259.12-16
N-DE009	Compare	2.98	4000 lbs / 18 kN	✔	✔	9kV	Sheet steel
