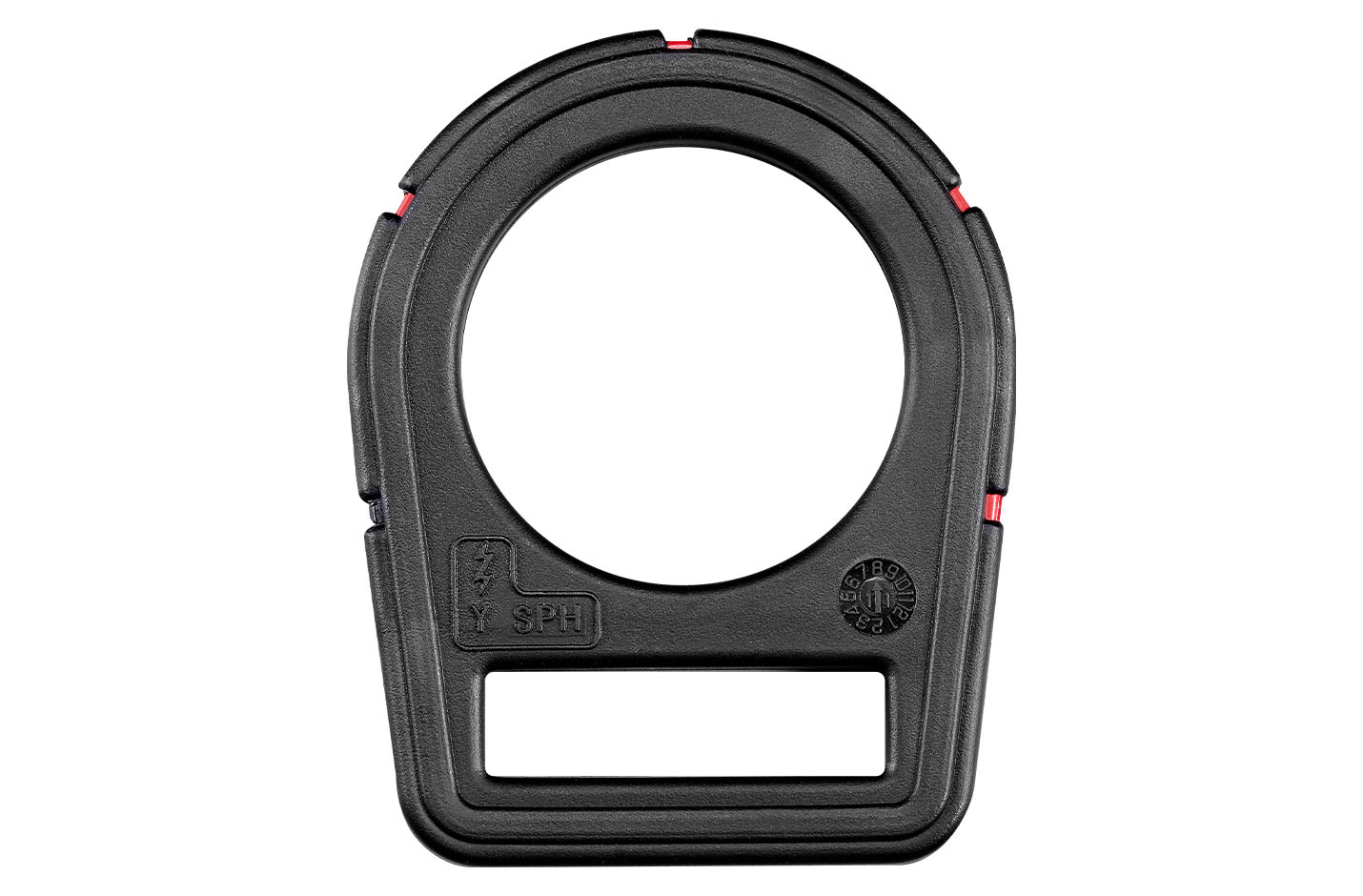

Overmolded D-Ring

Item No.N-DE001

Core: Sheet steel / Overmold: Glass fiber reinforced nylon
100% proof loaded to 3600lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
Maximum 9kV Dielectric Resistance
Net weight : 5.8 oz. / 164 g

Compare Datasheet

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	100% proof loaded	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		g			ANSI Z359.12-2019	CSA Z259.12-16
N-DE001	Compare	164	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	9kV	Sheet steel

Item NO.	Compare	Net Weight	100% proof loaded	Min. Breaking load	Meets		Maximum Dielectric Resistance	Body
		oz.			ANSI Z359.12-2019	CSA Z259.12-16
N-DE001	Compare	5.8	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	9kV	Sheet steel
