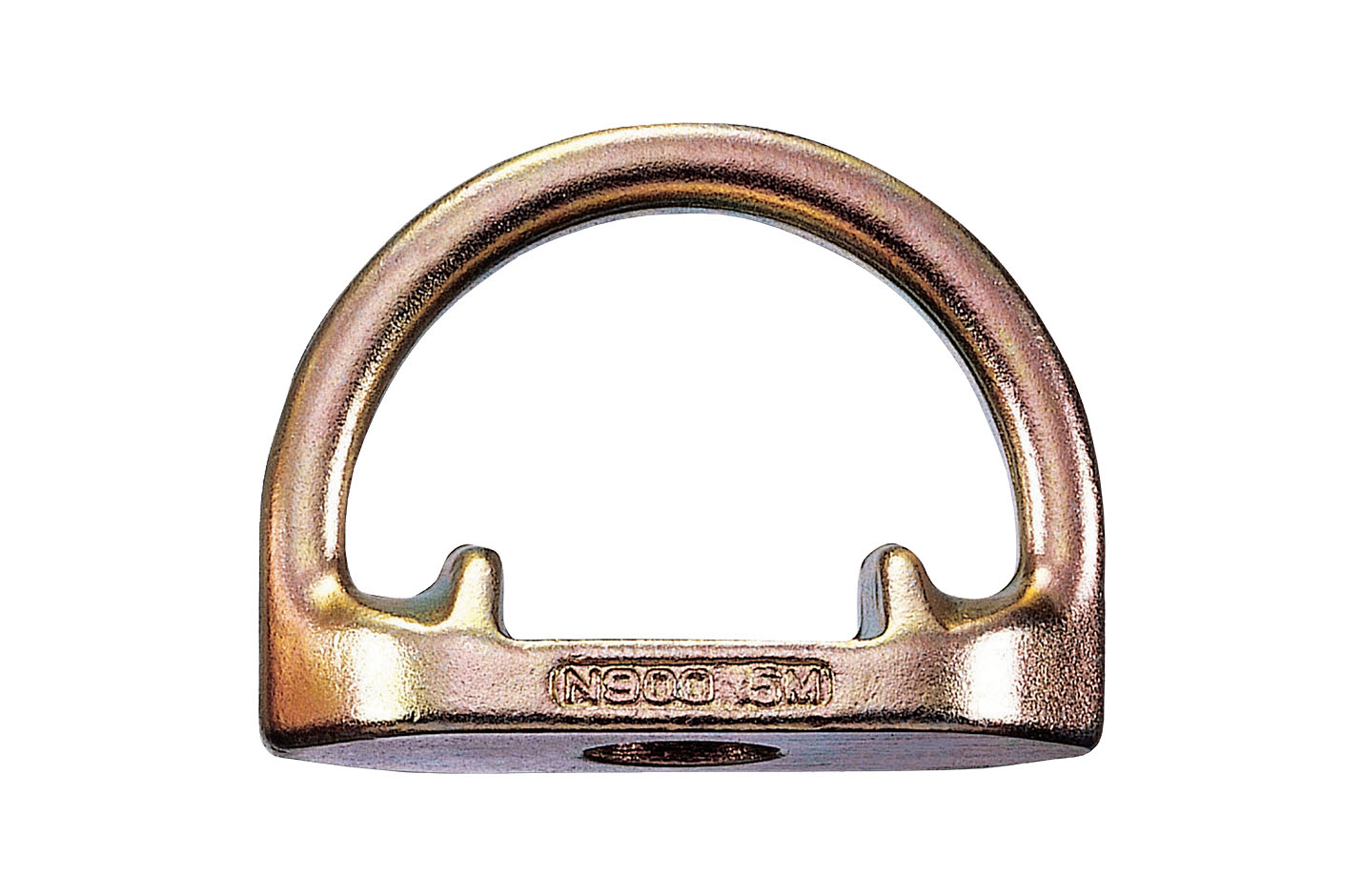

Anchorage Connector (3 / 4")

Item No.N-905
Forged steel, heat treated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
for 3 / 4 : (M19) bolt.

Net weight : 19.6 oz. / 563 g
Zinc Plated
Item NO. Compare Net Weight100% proof loadedMin. Breaking loadColorBody
g
N-905 Compare 563 3600 lbs / 16 kN 5000 lbs / 23 kN Zinc Plated Forged steel
Item NO. Compare Net Weight100% proof loadedMin. Breaking loadColorBody
oz.
N-905 Compare 19.6 3600 lbs / 16 kN 5000 lbs / 23 kN Zinc Plated Forged steel
