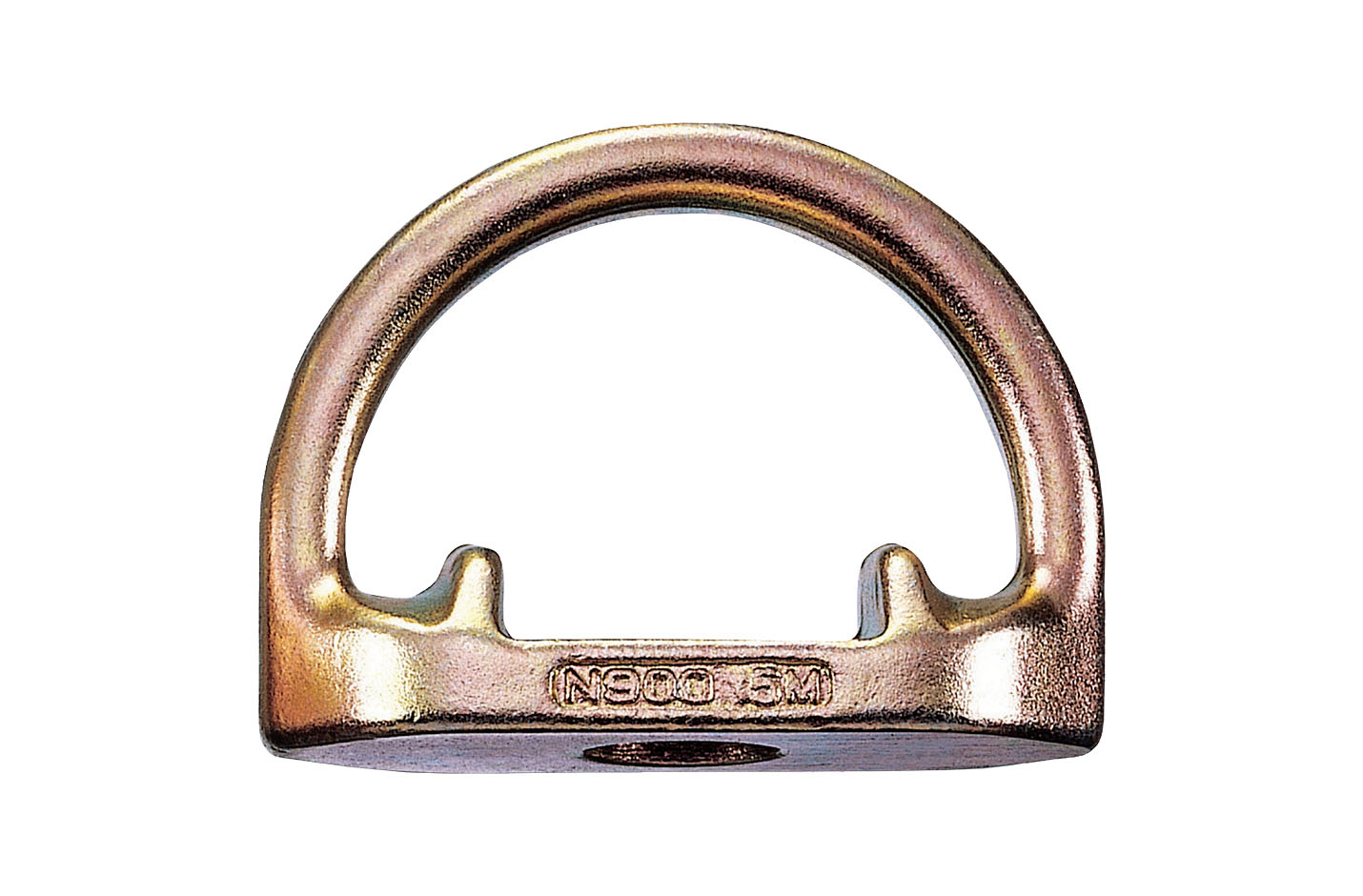

Anchorage Connector (5 / 8")

Item No.N-904
Forged steel, heat treated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
for 5 / 8 : (M16) bolt.

Net weight : 21.3 oz. / 582 g
Zinc Plated
Item NO. Compare Net Weight100% proof loadedMin. Breaking loadColorBody
g
N-904 Compare 582 3600 lbs / 16 kN 5000 lbs / 23 kN Zinc Plated Forged steel
Item NO. Compare Net Weight100% proof loadedMin. Breaking loadColorBody
oz.
N-904 Compare 21.3 3600 lbs / 16 kN 5000 lbs / 23 kN Zinc Plated Forged steel
