Home Products Fall Protection Components Components-Aluminum Alum Bent D-Ring-5M Middle Bar

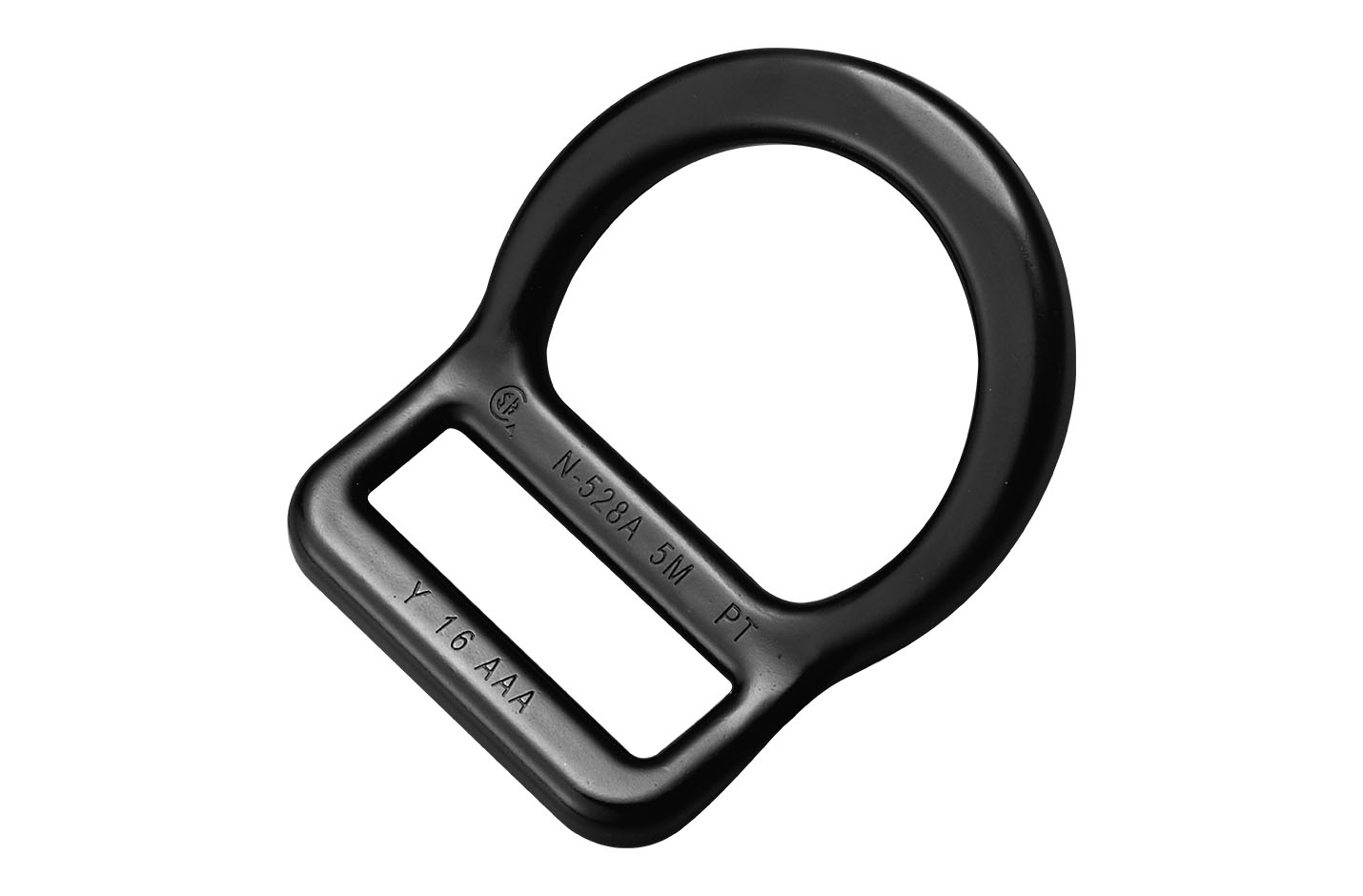

Alum Bent D-Ring-5M Middle Bar

Item No.N-529A

Forged aluminum alloy
100% proof loaded to 3600 lbs / 16kN
Min. Breaking load : 5000 lbs / 23 kN

Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16

Net weight : 3.3 oz. / 94 g
Anodized

Compare Datasheet

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	100% proof loaded	Min. Breaking load	Meets		Color	Body
		g			ANSI Z359.12-2019	CSA Z259.12-16
N-529A	Compare	94	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	Anodized	Forged aluminum alloy

Item NO.	Compare	Net Weight	100% proof loaded	Min. Breaking load	Meets		Color	Body
		oz.			ANSI Z359.12-2019	CSA Z259.12-16
N-529A	Compare	3.3	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	Anodized	Forged aluminum alloy
