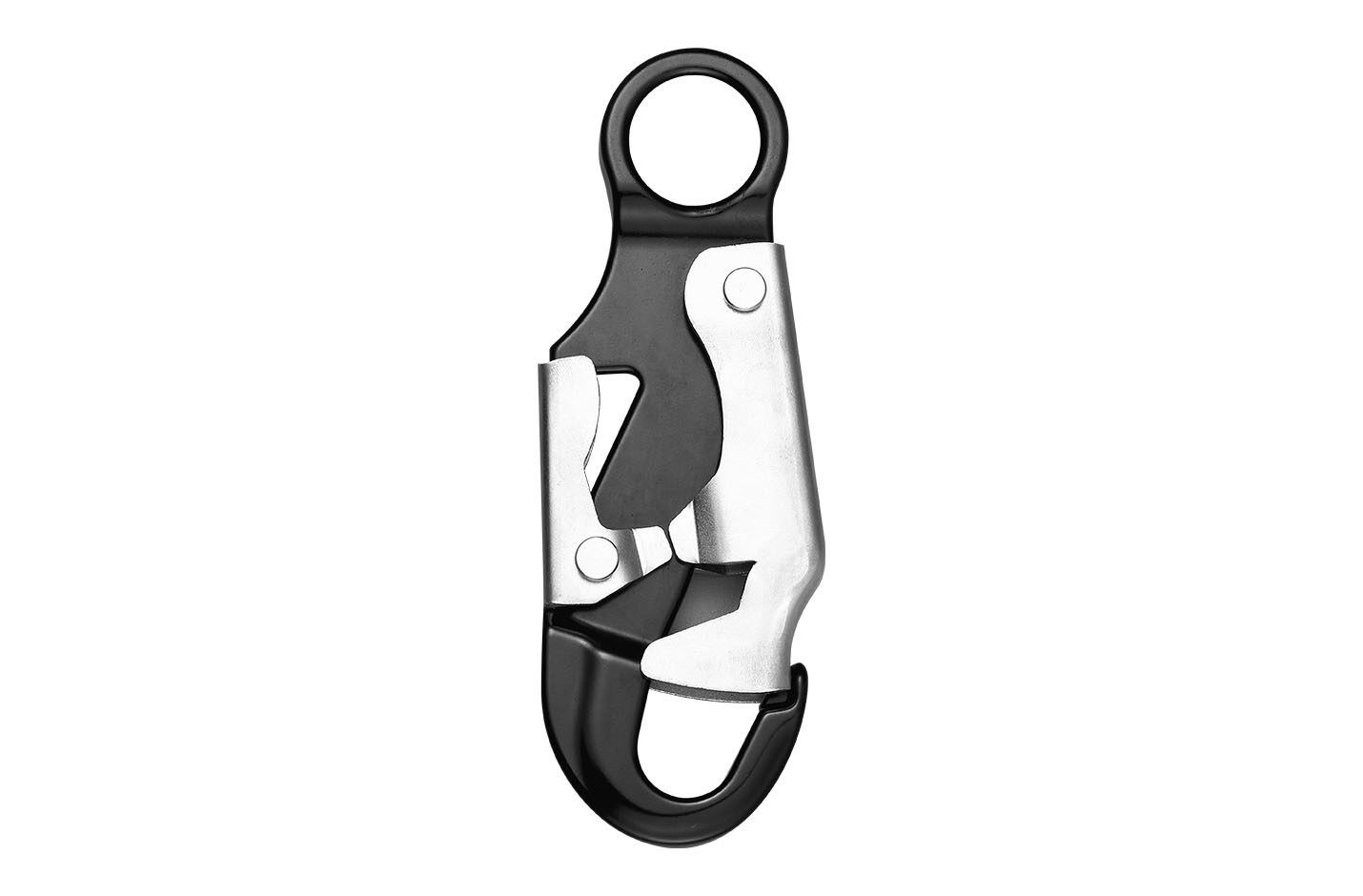

Aluminum Step Bolt Hook
Item No.N-5268
Specifically designed for step bolts 16 mm diameter
Forged aluminum alloy
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004
Net weight : 14.5 oz. / 414 g
Anodized
Forged aluminum alloy
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004
Net weight : 14.5 oz. / 414 g
Anodized
Gate Srength
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded | Min. Breaking load | Meets | Color | Body | ||
|---|---|---|---|---|---|---|---|---|---|---|
| g | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | EN 362 : 2004 | ||||||
| N-5268 | Compare | 414 | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Anodized | Forged aluminum alloy |
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded | Min. Breaking load | Meets | Color | Body | ||
|---|---|---|---|---|---|---|---|---|---|---|
| oz. | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | EN 362 : 2004 | ||||||
| N-5268 | Compare | 14.5 | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Anodized | Forged aluminum alloy |
