Home Products Fall Protection Components D Rings/Buckles/Adjusters Triple Lock QR Buckle

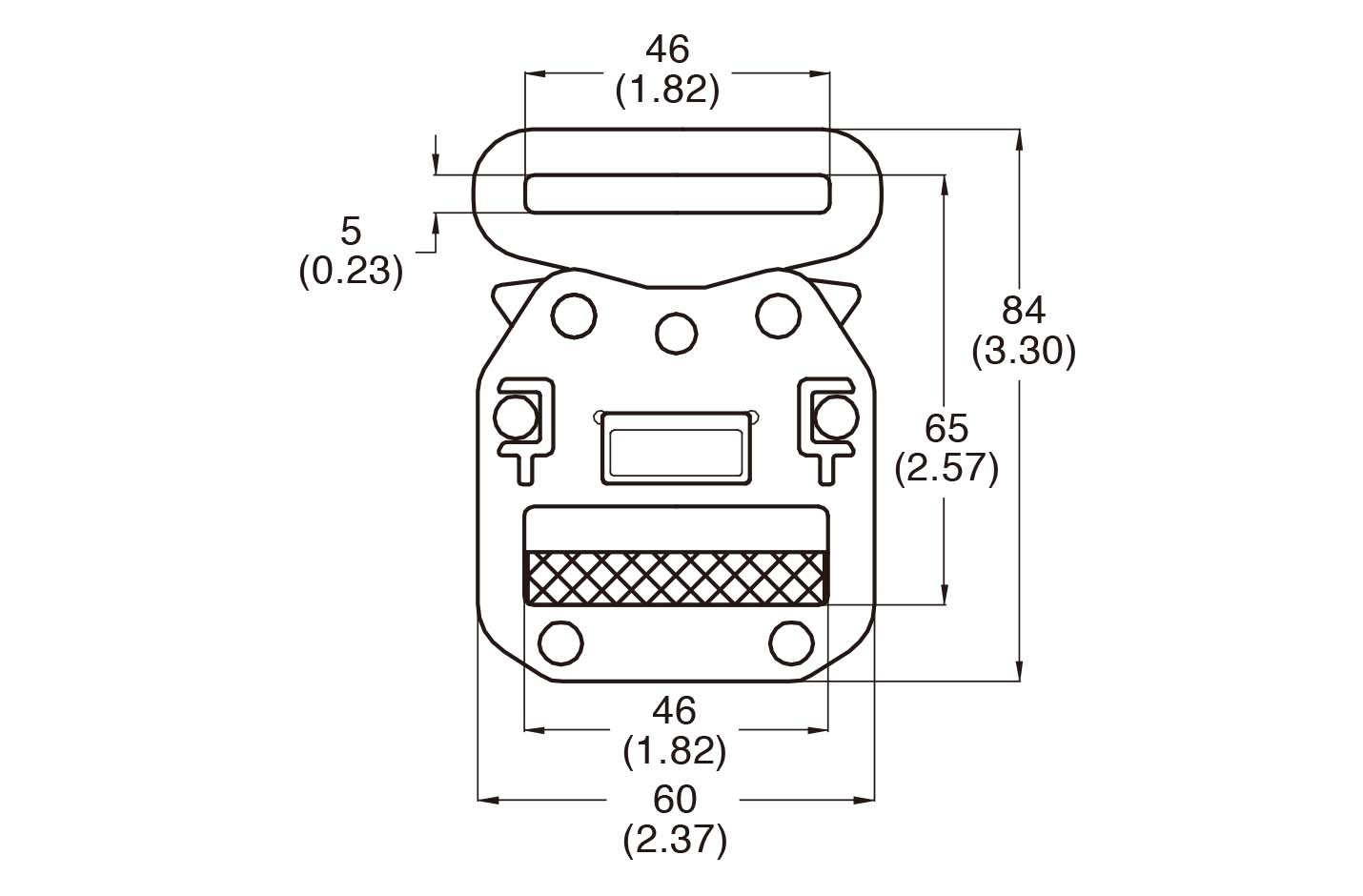

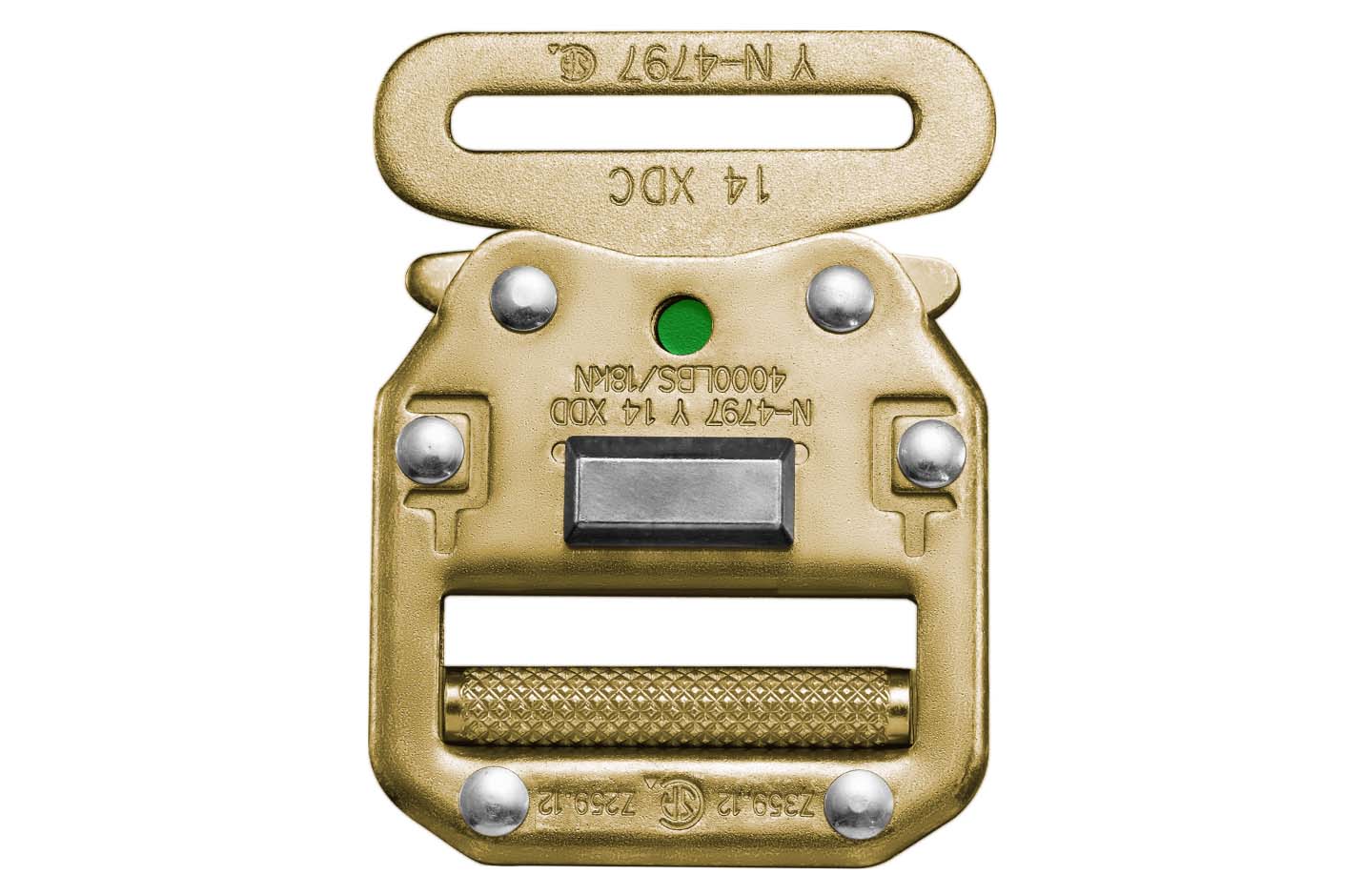

Triple Lock QR Buckle

Item No.N-4797

Sheet steel, heat treated
Min. Breaking Load : 4000 lbs / 18 kN

Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16

Net weight : 5.5 oz. / 156 g
Patent US 9578929
Zinc Plated

Compare Datasheet

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Body
		g		ANSI Z359.12-2019	CSA Z259.12-16
N-4797	Compare	156	4000 lbs / 18 kN	✔	✔	Sheet steel

Item NO.	Compare	Net Weight	Min. Breaking load	Meets		Body
		oz.		ANSI Z359.12-2019	CSA Z259.12-16
N-4797	Compare	5.5	4000 lbs / 18 kN	✔	✔	Sheet steel
