Gate Srength
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded | Min. Breaking load | Meets | Color | Body | |
|---|---|---|---|---|---|---|---|---|---|
| g | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | ||||||

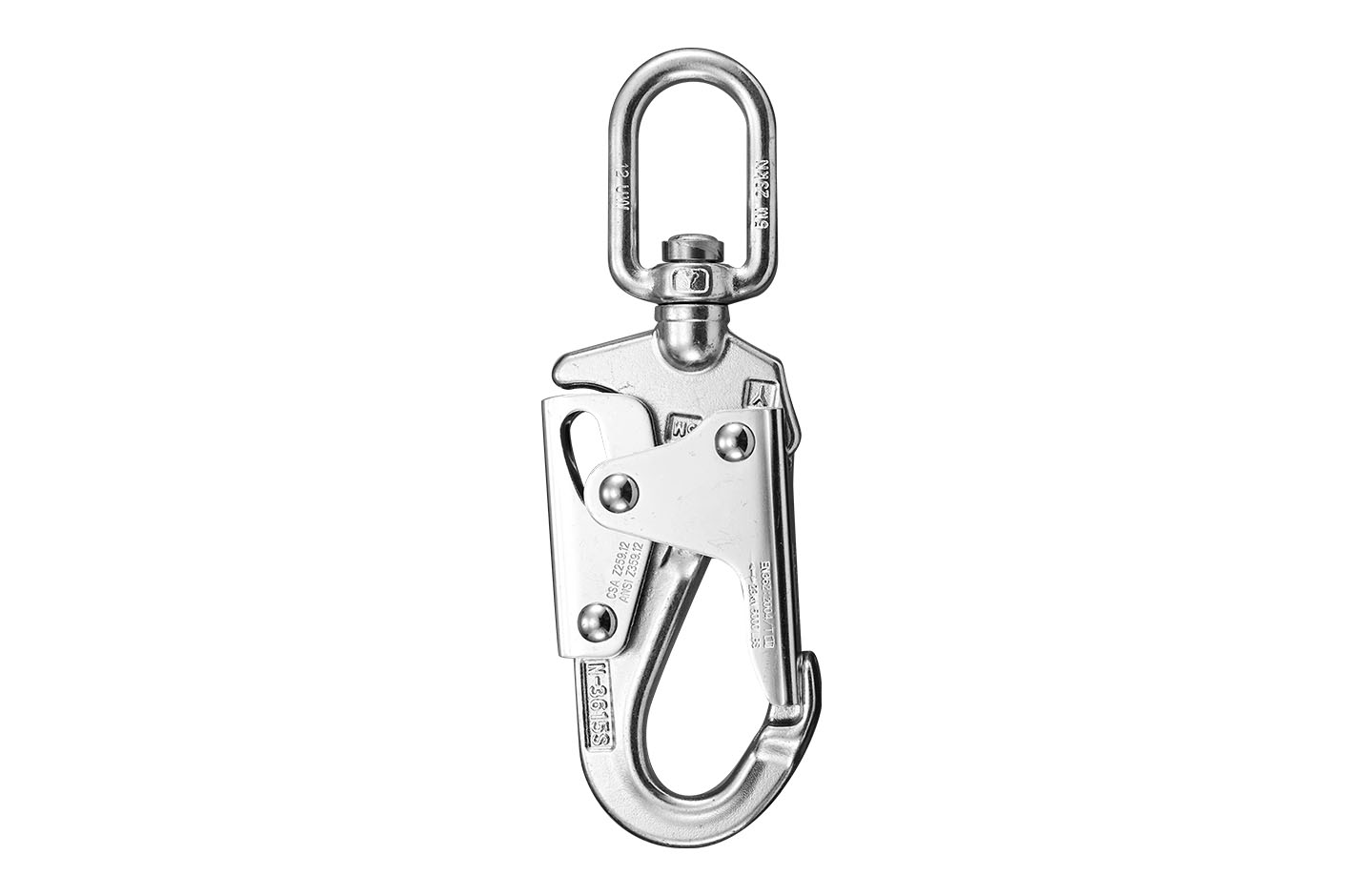

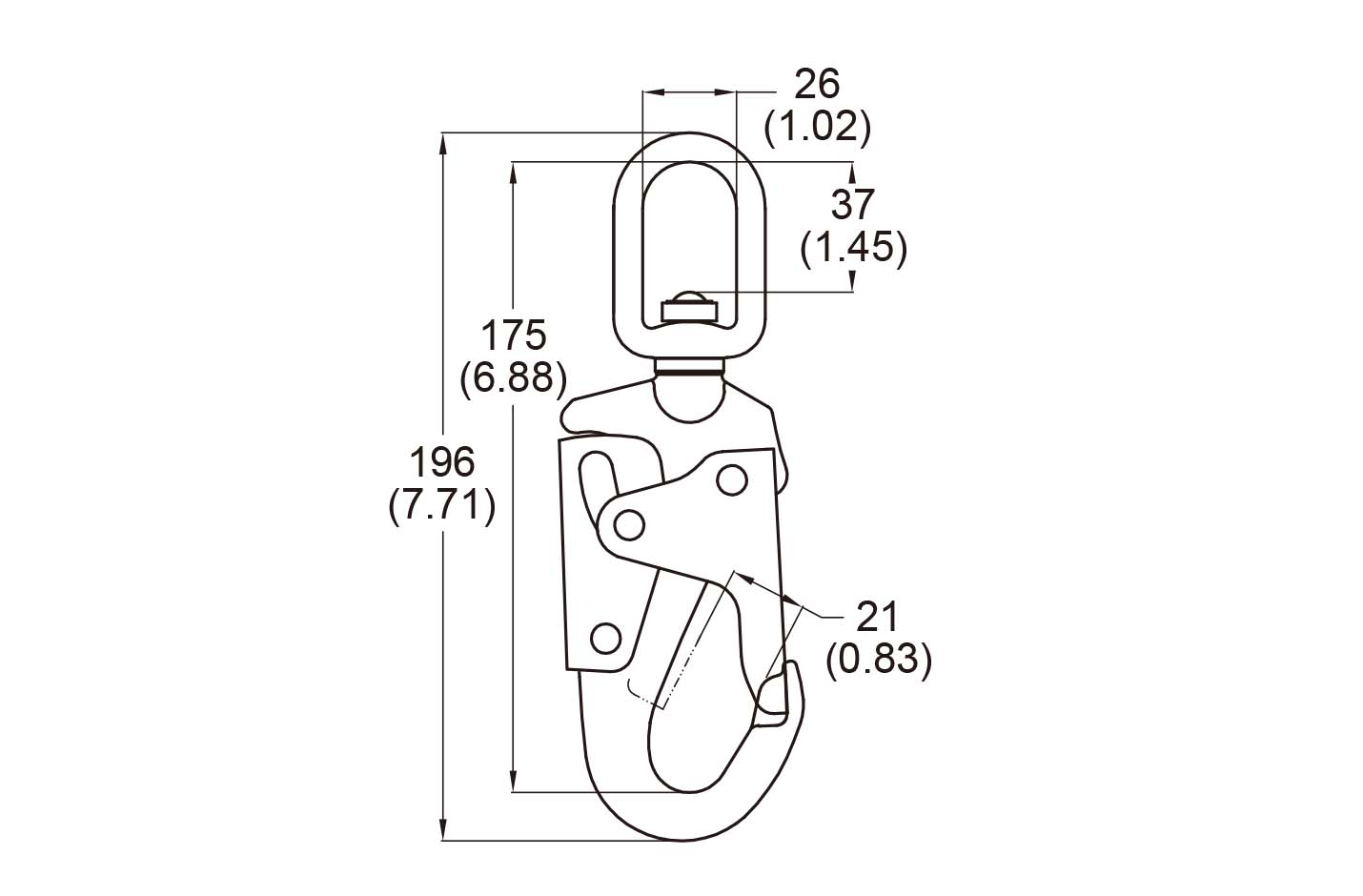

| N-3616-S | Compare | 504 | ✔ | 3600 lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | Polished | Forged Stainless steel, SUS 420 |
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded | Min. Breaking load | Meets | Color | Body | |
|---|---|---|---|---|---|---|---|---|---|
| oz. | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | ||||||
| N-3616-S | Compare | 17.6 | ✔ | 3600 lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | Polished | Forged Stainless steel, SUS 420 |
