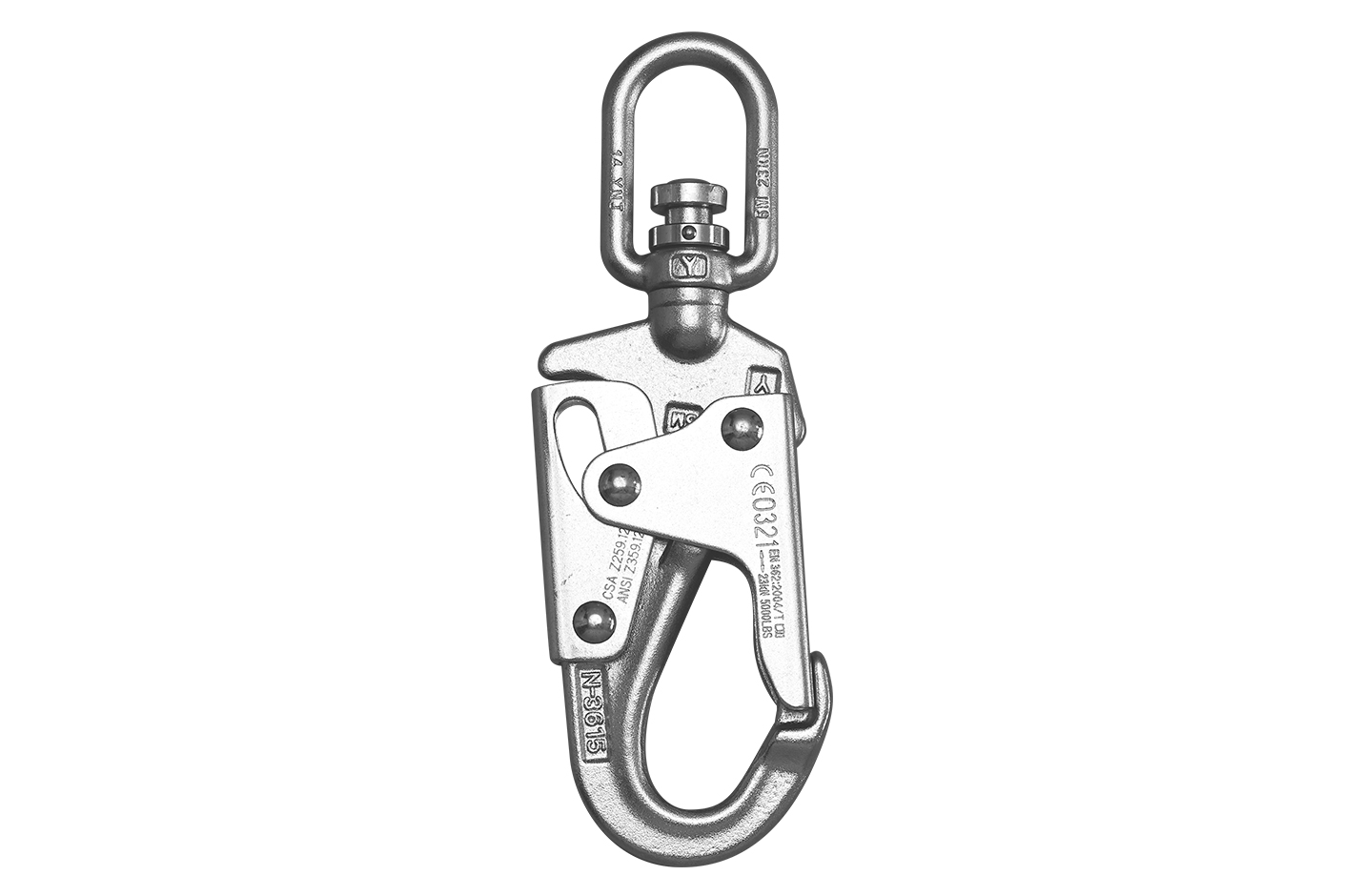

Indicator Swivel Hook
Item No.N-3615
Forged steel, heat treated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004
Indicator Strength Options: ① 500 lbs ② 750 lbs
Net weight : 17.5 oz. / 501 g
Zinc Plated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004
Indicator Strength Options: ① 500 lbs ② 750 lbs
Net weight : 17.5 oz. / 501 g
Zinc Plated
Gate Strength
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded | Min. Breaking load | Color | Body |
|---|---|---|---|---|---|---|---|
| g | 3600 Lbs Gate Strength | ||||||
| N-3615 | Compare | 501 | ✔ | 3600 lbs / 16 kN | 5000 lbs / 23 kN | Zinc Plated | Forged steel |
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded | Min. Breaking load | Color | Body |
|---|---|---|---|---|---|---|---|
| oz. | 3600 Lbs Gate Strength | ||||||
| N-3615 | Compare | 17.5 | ✔ | 3600 lbs / 16 kN | 5000 lbs / 23 kN | Zinc Plated | Forged steel |
