Gate Srength
Snag Free
| Item NO. | Compare | Net Weight | Gate Feature | Body | Snag Free | Gate Strength | 100% proof loaded | Min. Breaking load | Meets | Color | Body | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| g | Twist Locking | TripleLocking | Captive Pin | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | EN 362 : 2004 | |||||||

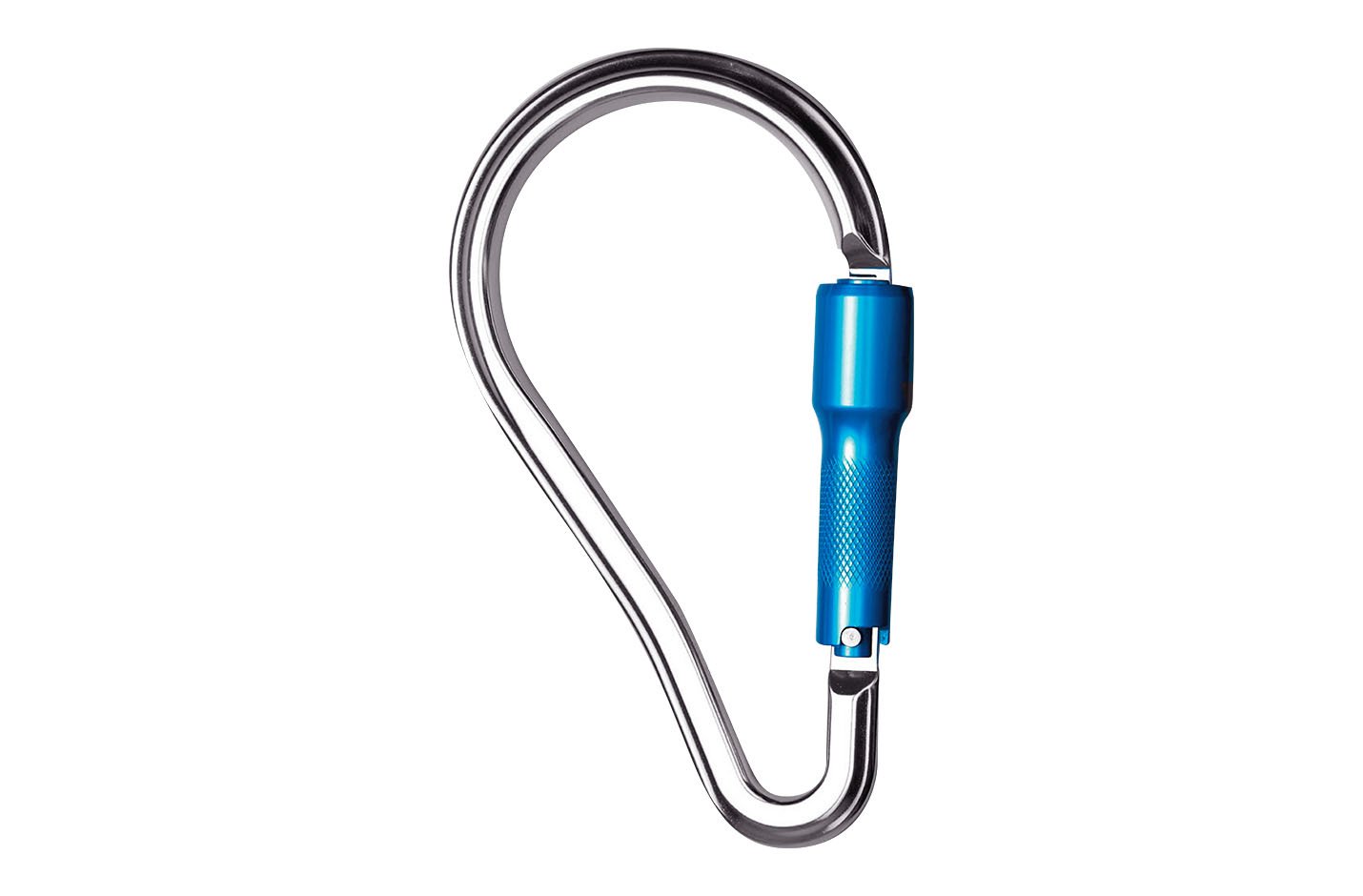

| N-2868G-CP | Compare | 450 | ✔ | - | ✔ | ✔ | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Anodized | Aluminum alloy, SAE 7075 |
| N-2868GL-CP | Compare | 450 | - | ✔ | ✔ | ✔ | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Anodized | Aluminum alloy, SAE 7075 |
| Item NO. | Compare | Net Weight | Gate Feature | Body | Snag Free | Gate Strength | 100% proof loaded | Min. Breaking load | Meets | Color | Body | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| oz. | Twist Locking | TripleLocking | Captive Pin | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | EN 362 : 2004 | |||||||
| N-2868G-TRCP | Compare | 15.9 | ✔ | - | ✔ | ✔ | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Anodized | Aluminum alloy, SAE 7075 |
| N-2868GL-CP | Compare | 15.9 | - | ✔ | ✔ | ✔ | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Anodized | Aluminum alloy, SAE 7075 |
