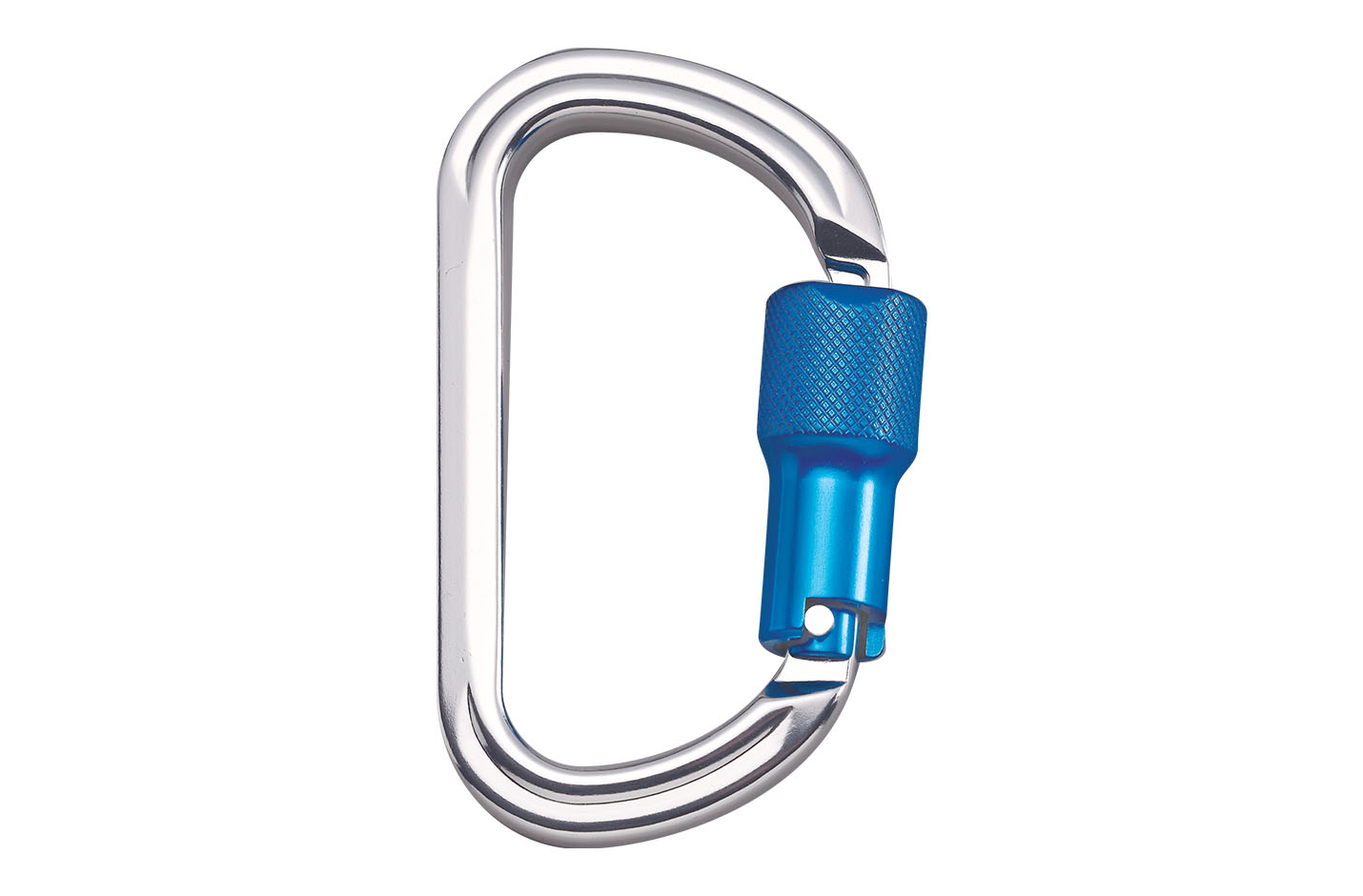

Aluminum Carabiner

Item No.N-2852G

Aluminum alloy, SAE 7075
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN

Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004

Net weight : 4.6 oz. / 131 g
Anodized

Compare Datasheet

Gate Srength

Snag Free

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Gate Feature		Body	Snag Free	Gate Strength	100% proof loaded	Min. Breaking load	Meets			Color	Body
		g	Twist Locking	TripleLocking	Captive Pin		3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-2852G	Compare	131	✔	-	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
N-2852G-TR	Compare	131	-	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
N-2852G-CP	Compare	131	✔	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
N-2852G-TRCP	Compare	131	-	✔	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075

Item NO.	Compare	Net Weight	Gate Feature		Body	Snag Free	Gate Strength	100% proof loaded	Min. Breaking load	Meets			Color	Body
		oz.	Twist Locking	TripleLocking	Captive Pin		3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-2852G	Compare	4.6	✔	-	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
N-2852G-TR	Compare	4.6	-	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
N-2852G-CP	Compare	4.6	✔	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
N-2852G-TRCP	Compare	4.6	-	✔	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Anodized	Aluminum alloy, SAE 7075
