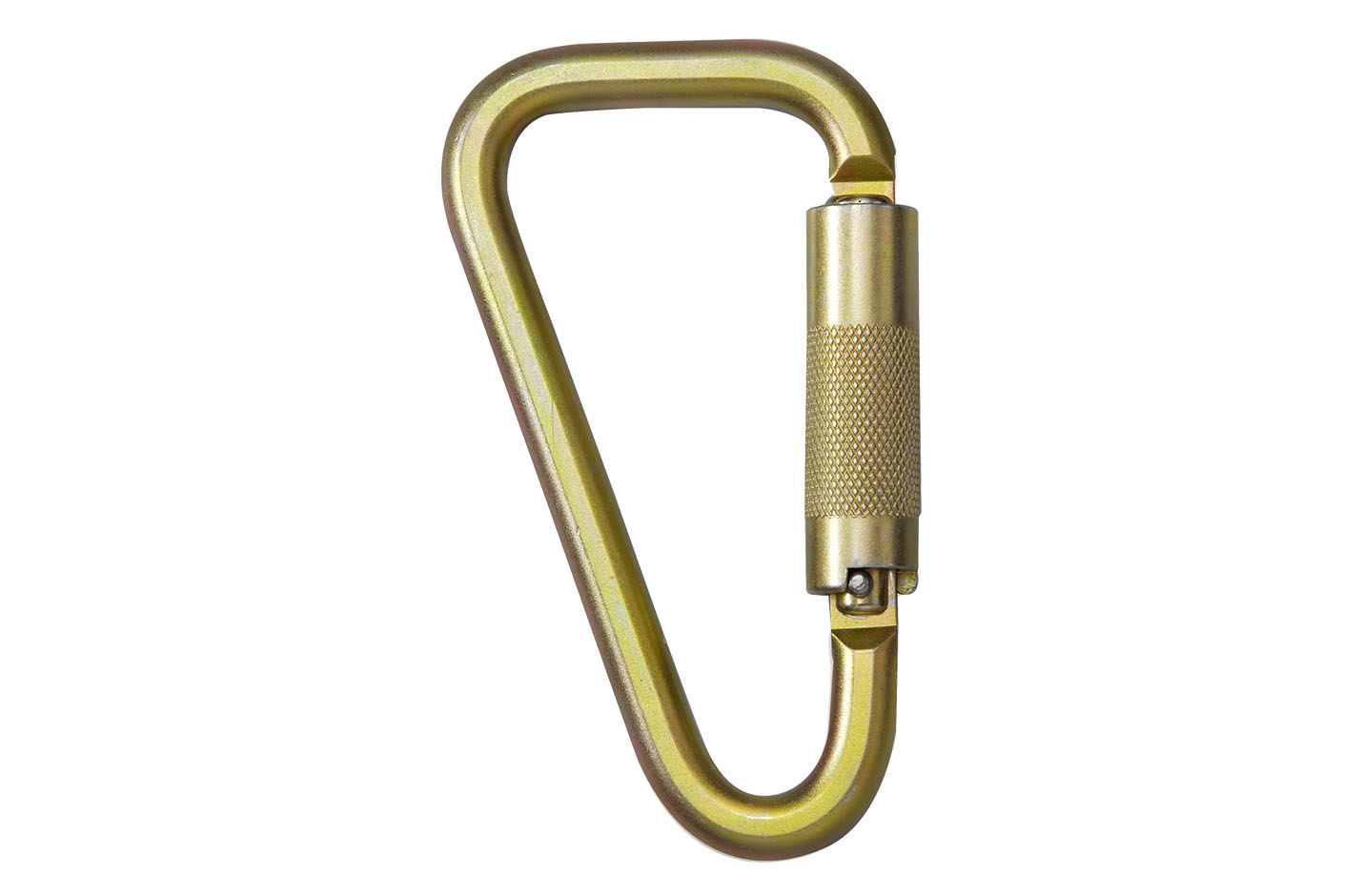

Steel Carabiner

Item No.N-258G-CP

Alloy steel, heat treated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN

Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004

Net weight : 22.0 oz. / 625 g.
Zinc Plated

Compare Datasheet

Gate Srength

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Gate Feature		Body	Gate Strength	100% proof loaded	Min. Breaking load	Meets			Color	Body
		g	Twist Locking	TripleLocking	Captive Pin	3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-258	Compare	625	✔	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-258G-CP	Compare	625	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-258G-TRCP	Compare	625	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel

Item NO.	Compare	Net Weight	Gate Feature		Body	Gate Strength	100% proof loaded	Min. Breaking load	Meets			Color	Body
		oz.	Twist Locking	TripleLocking	Captive Pin	3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-258	Compare	22	✔	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-258G-CP	Compare	22	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-258G-TRCP	Compare	22	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
