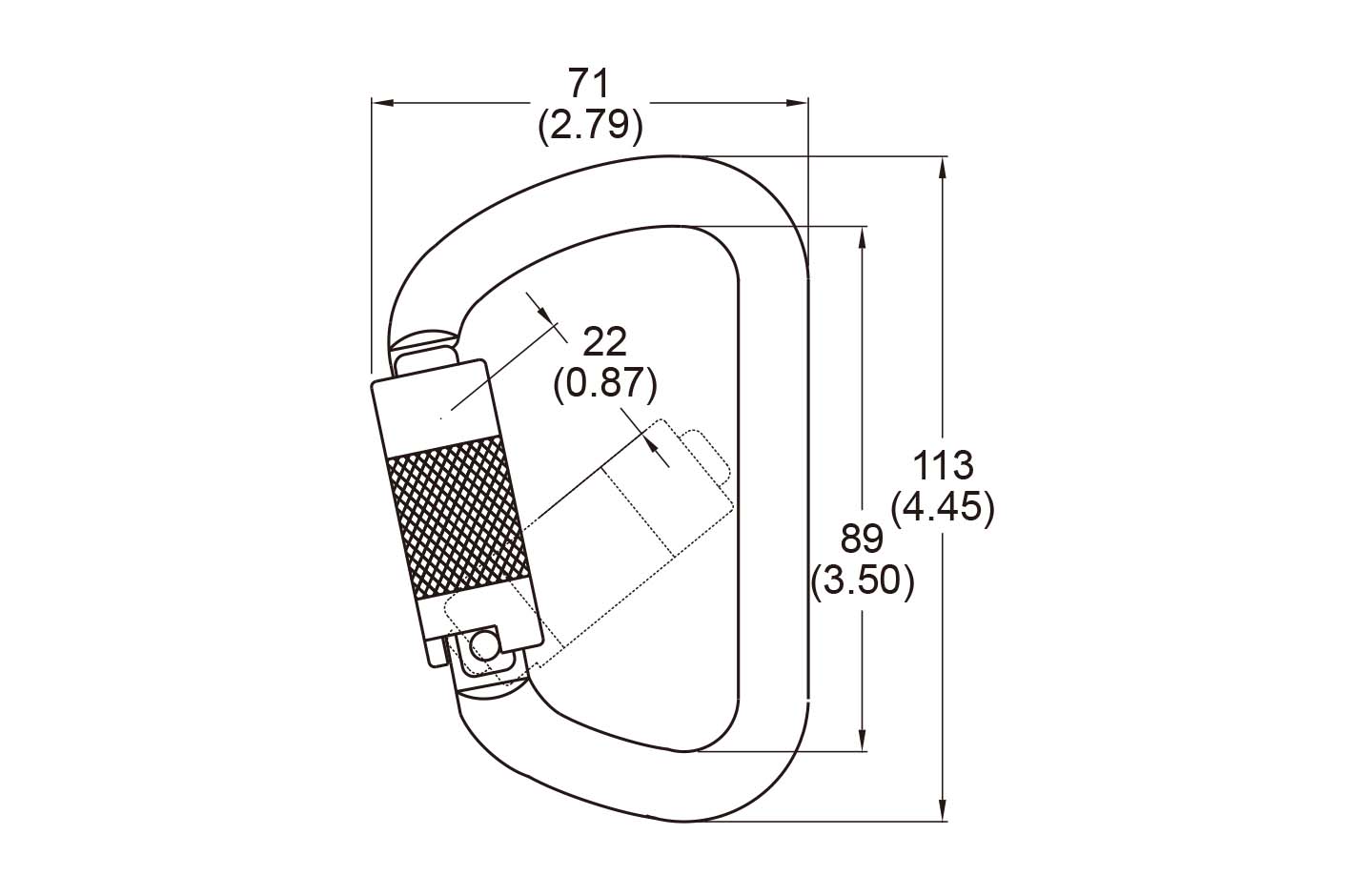

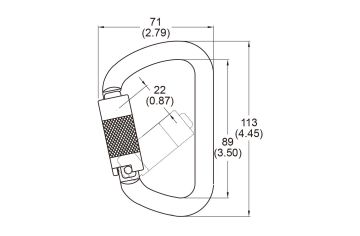

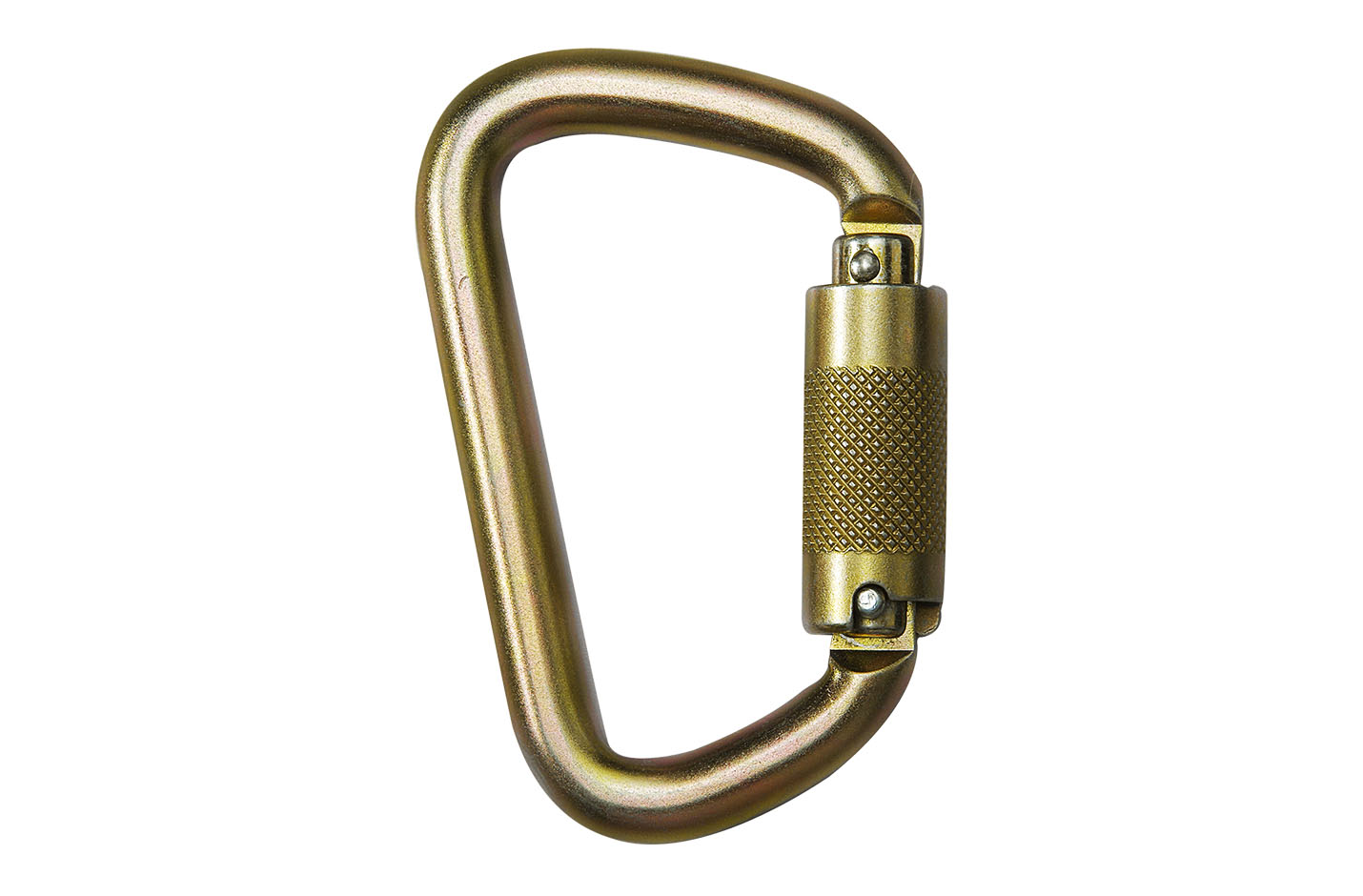

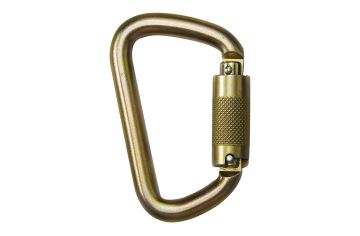

Steel Carabiner

Item No.N-246G

Alloy steel, heat treated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN

Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004

Net weight : 10.1 oz. / 288 g.
Zinc Plated

Compare Datasheet

Gate Srength

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Gate Feature			Body	Gate Strength	100% proof loaded	Min. Breaking load	Meets			Color	Body
		g	Screw gate	Twist Locking	TripleLocking	Captive Pin	3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-246-0	Compare	288	✔	-	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246	Compare	288	-	✔	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G	Compare	288	-	✔	-	-	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G-TR	Compare	288	-	-	✔	-	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G-CP	Compare	288	-	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G-TRCP	Compare	288	-	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel

Item NO.	Compare	Net Weight	Gate Feature			Body	Gate Strength	100% proof loaded	Min. Breaking load	Meets			Color	Body
		oz.	Screw gate	Twist Locking	TripleLocking	Captive Pin	3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-246-0	Compare	10.1	✔	-	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246	Compare	10.1	-	✔	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G	Compare	10.1	-	✔	-	-	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G-TR	Compare	10.1	-	-	✔	-	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G-CP	Compare	10.1	-	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-246G-TRCP	Compare	10.1	-	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
