Lifting Point
Item No.8-S291 and 8-S292

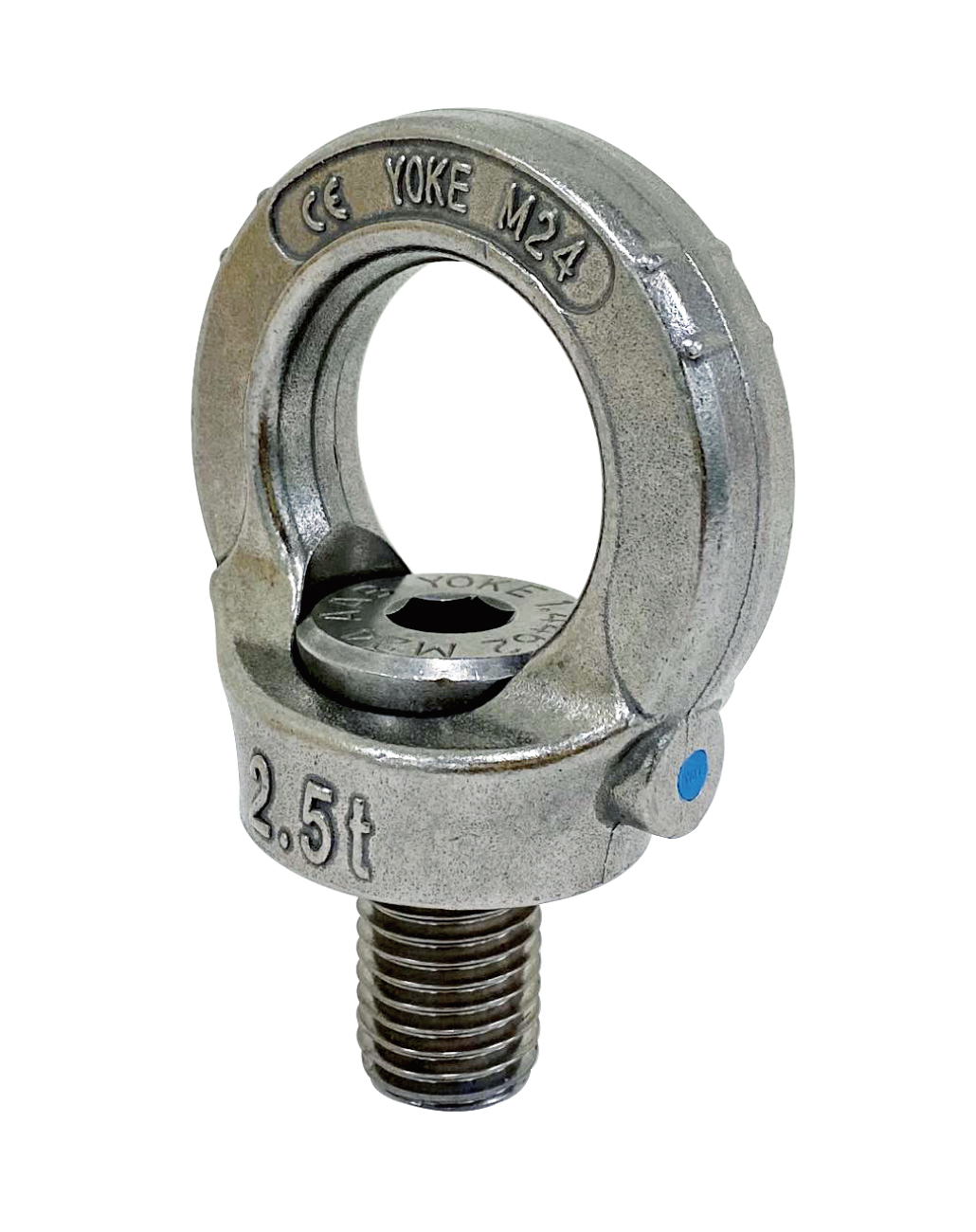

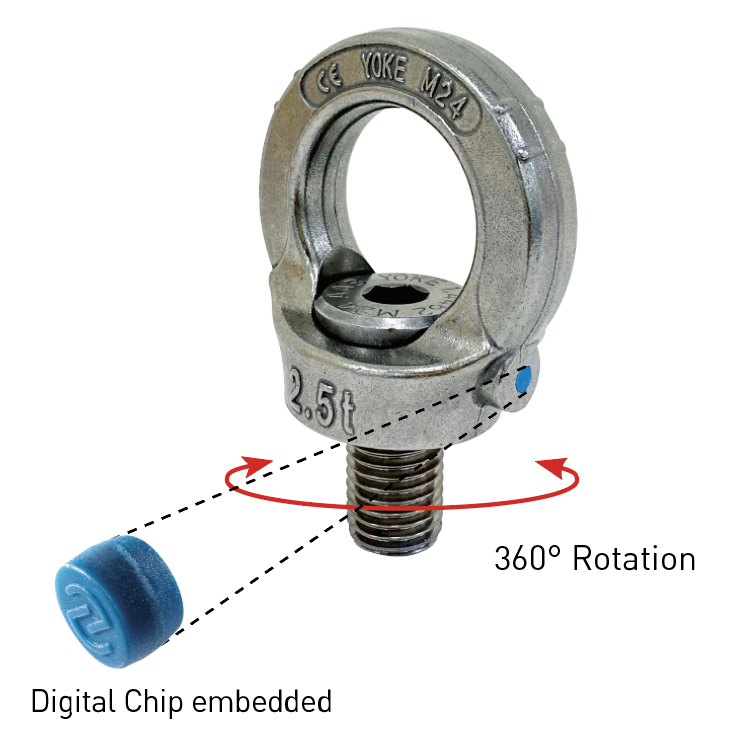

• Pivots to 230°, rotating through 360° due to its unique ball bearing design.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1 and EN 1677-4.
• Certified by DGUV GS-HM-36.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and Traceability Code links to the Test Certificate sheet.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged hexagon-shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn continuously in a 90-degree direction at full load.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1 and EN 1677-4.
• Certified by DGUV GS-HM-36.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and Traceability Code links to the Test Certificate sheet.
• Bolts are metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE lifting points meet or exceed all the requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged hexagon-shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn continuously in a 90-degree direction at full load.

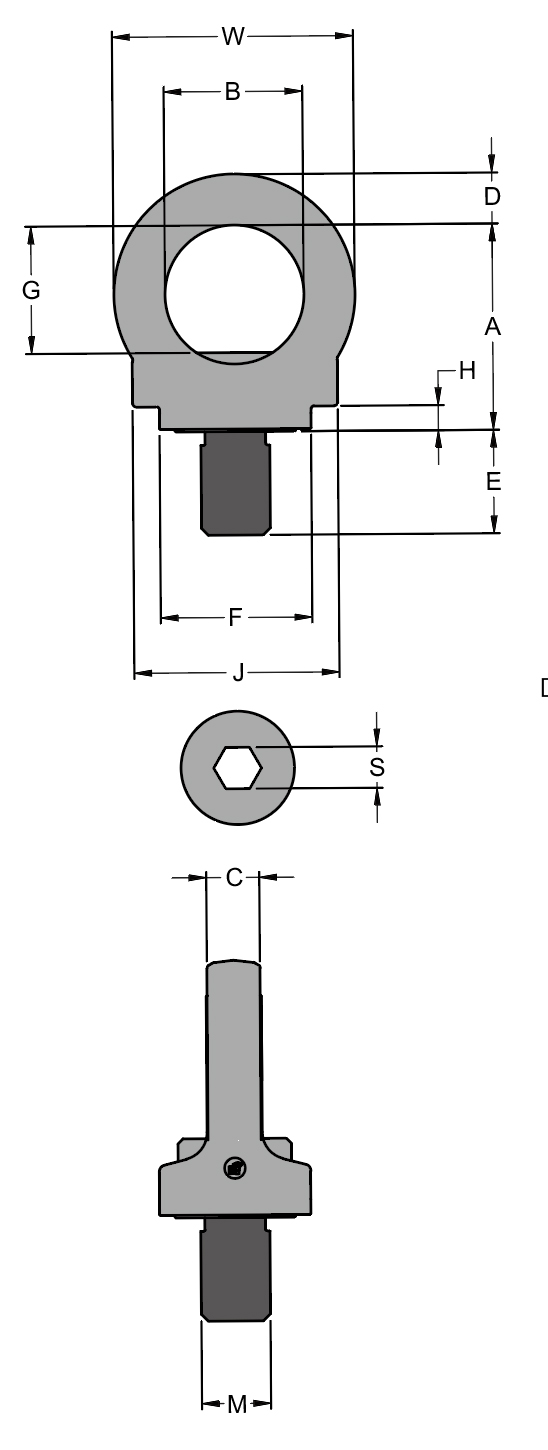

| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | C | D | F | G | H | J | K | S | W | Nm | ||
| 8-S291-005 | Compare | 0.5 | M 12 | 18 | 1.75 | 45 | 10 | 11 | 33 | 29 | 5 | 8 | 52 | 8 | 52 | 10 |
| 8-S291-010 | Compare | 1 | M 16 | 24 | 2 | 52 | 14 | 13 | 35 | 33 | 5 | 10 | 61 | 10 | 61 | 30 |
| 8-S291-020 | Compare | 2 | 60 | 30 | 2.5 | - | 16 | 15 | 44 | 37 | 7 | 12 | 70 | 12 | 70 | 70 |
| 8-S291-025 | Compare | 2.5 | M 24 | 36 | 3 | 72 | 19 | 18 | 52 | 46 | 10 | 14 | 84 | 14 | 84 | 150 |
| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | M | E | TPI | A | C | D | F | G | H | J | S | W | ft.lbs | ||
| 8-S292-005 | Compare | 1100 | 45659 | 0.75 | 13UNC | 1.77 | 0.39 | 0.43 | 1.3 | 1.14 | 0.2 | 1.73 | 0.31 | 0.31 | 7 |
| 8-S292-010 | Compare | 2200 | 45785 | 0.94 | 11UNC | 2.05 | 0.55 | 0.51 | 1.38 | 1.3 | 0.2 | 2.01 | 0.39 | 0.39 | 20 |
| 8-S292-020 | Compare | 4400 | 45720 | 1.4 | 10UNC | 2.36 | 0.63 | 0.59 | 1.73 | 1.46 | 0.28 | 2.36 | 0.47 | 0.47 | 50 |
| 8-S292-025 | Compare | 5500 | 1 | 1.52 | 8UNC | 2.83 | 0.75 | 0.71 | 2.05 | 1.81 | 0.39 | 2.83 | 0.55 | 0.55 | 110 |
