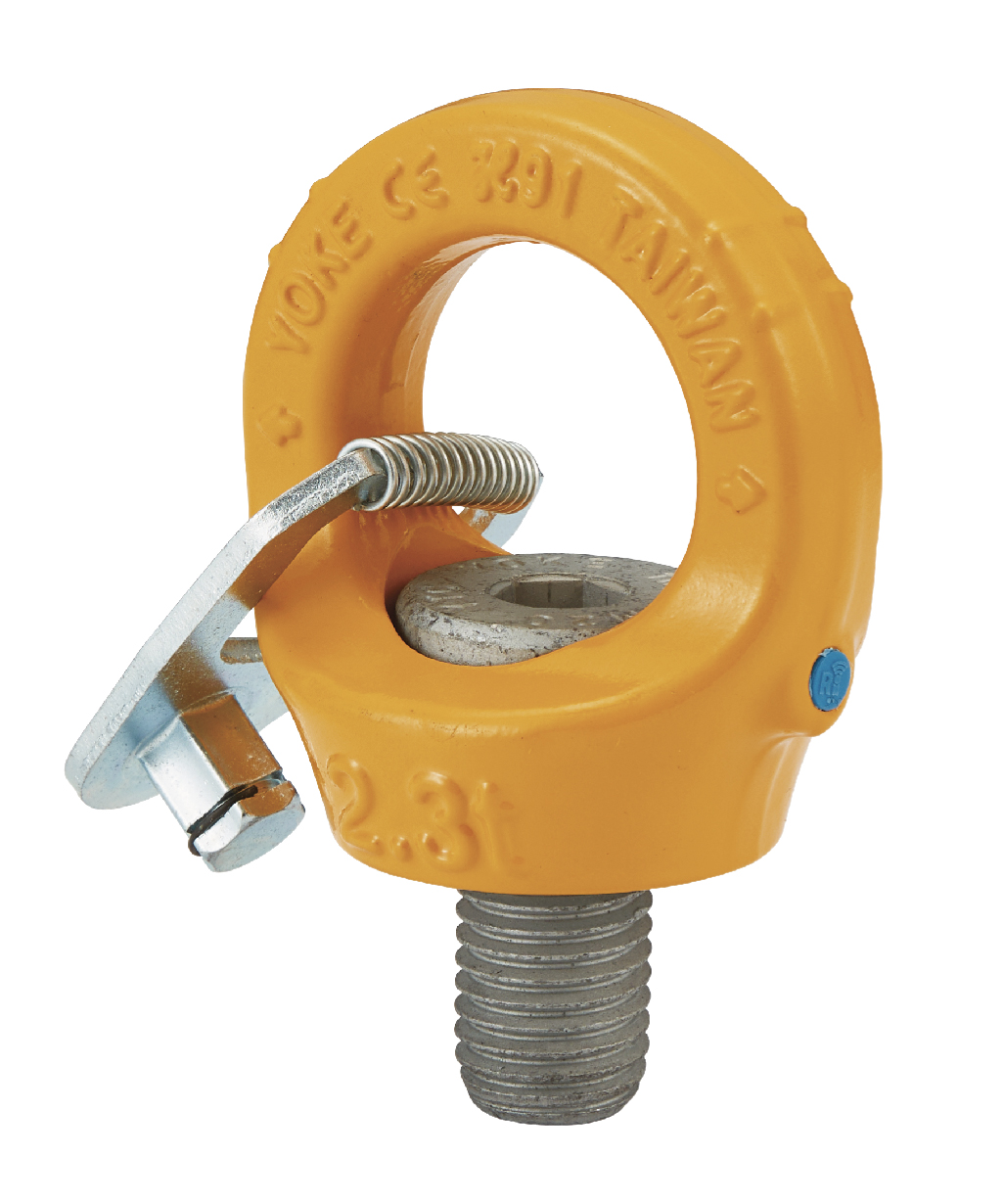

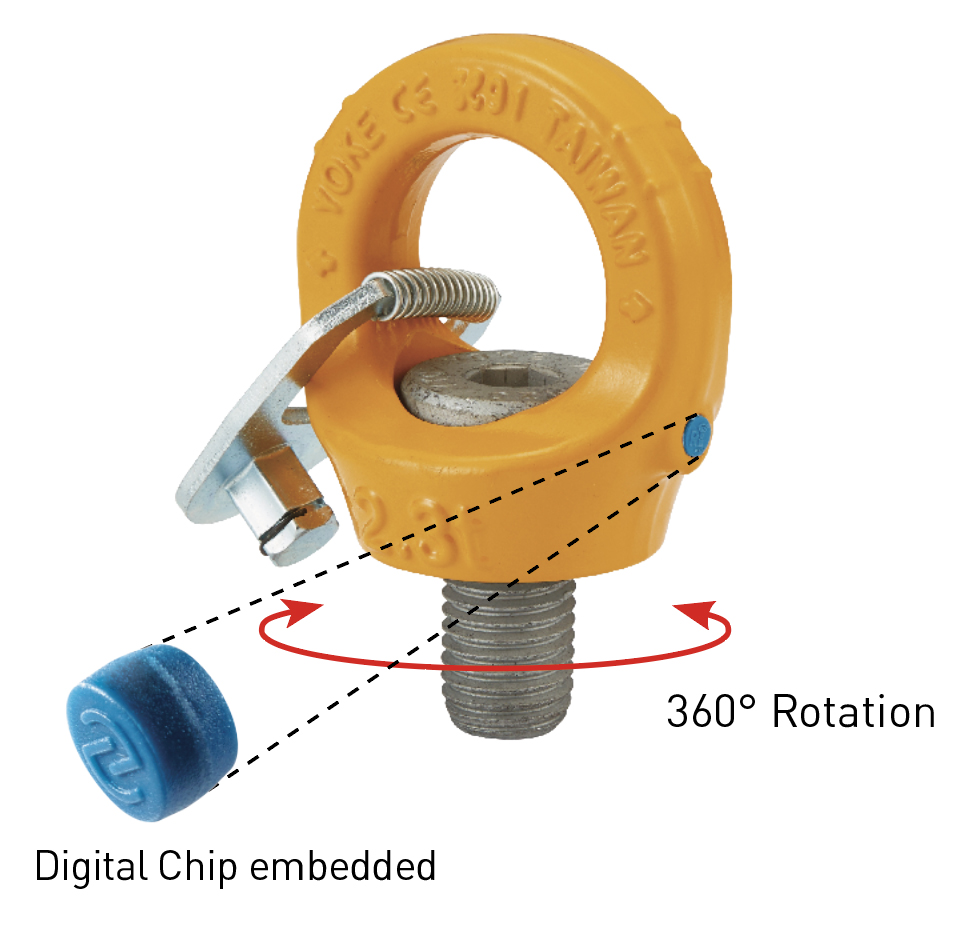

Lifting Point 8-291K and 8-292K

Item No.8-291K and 8-292K
Compare Datasheet

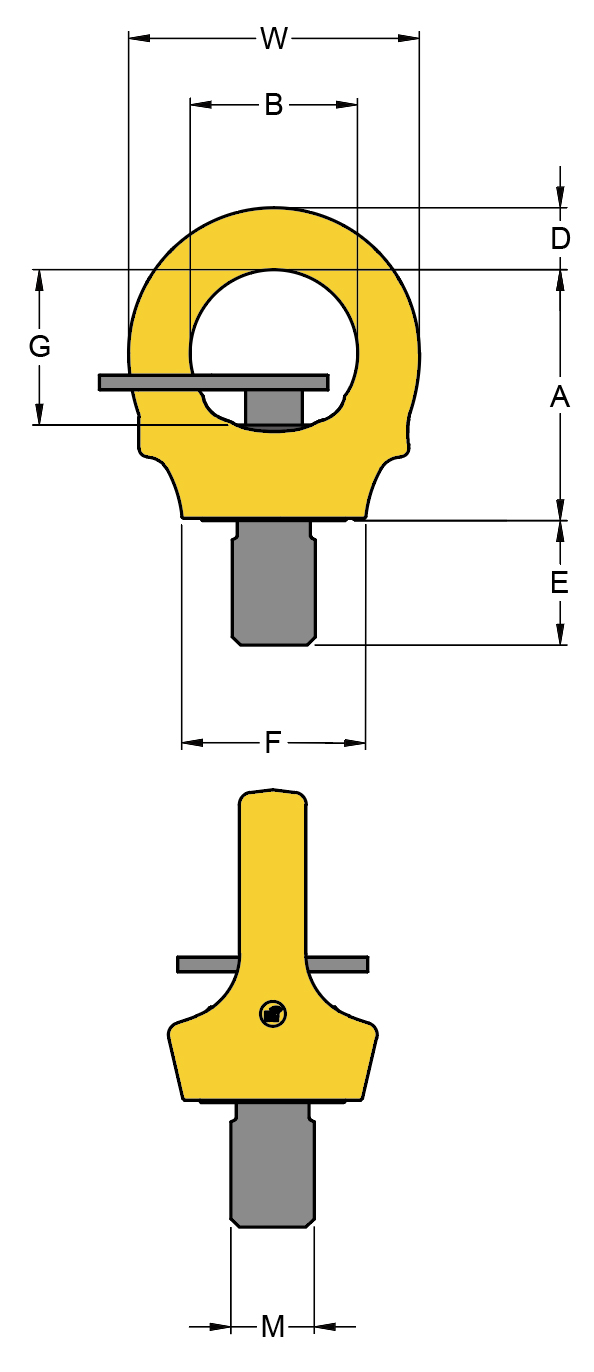

Item NO. Compare Working Load LimitThread versionDimensionsTorque in
tonnesMEPitch DIN13ACDFGHJSWNm
8-291K-001 Compare 0.1 M6 9 1 30 7 7 23 19 4 33 6 34 5
8-291K-003 Compare 0.3 M 8 12 1.25 38 9 9 25 24 6 41 6 44 10
8-291K-004 Compare 0.4 M 10 15 1.5 38 9 9 25 24 6 41 6 44 10
8-291K-007 Compare 0.75 M 12 18 1.75 45 10 11 33 30 9 47 8 52 10
8-291K-015 Compare 1.5 M 16 24 2 52 14 13 35 34 11 56 10 61 30
8-291K-023 Compare 2.3 M 20 30 2.5 60 16 15 44 37 15 65 12 70 70
8-291K-032 Compare 3.2 M 24 36 3 72 19 18 53 47 19 78 14 84 150
8-291K-045 Compare 4.5 M 30 45 3.5 91 24 22 62 59 23 95 17 105 350
8-291K-070 Compare 7 M 36 54 4 110 29 27 76 72 31 114 22 126 410
8-291K-090 Compare 9 M 42 63 4.5 128 34 32 89 81 38 132 24 147 550
8-291K-120 Compare 12 M 48 72 5 145 38 37 105 94 44 150 27 168 550
8-291K-140 Compare 16 M 56 84 5.5 148 40 43 124 92 49 166 27 178 800
8-291K-150 Compare 18 M 64 96 6 148 40 43 124 92 49 166 27 178 800
Item NO. Compare Working Load LimitThread versionDimensionsTorque in
lbsMETPIACDFGHJSWft.lbs
8-292K-003 Compare 660 45793 0.47 18UNC 1.49 0.33 0.37 0.99 0.92 0.24 1.6 0.25 1.73 7
8-292K-004 Compare 880 45724 0.56 16UNC 1.49 0.33 0.37 0.99 0.92 0.24 1.6 0.25 1.73 7
8-292K-007 Compare 1650 45659 0.75 13UNC 1.79 0.39 0.43 1.3 1.16 0.37 1.85 0.31 2.05 7
8-292K-015 Compare 3300 45785 0.94 11UNC 2.06 0.55 0.51 1.38 1.32 0.45 2.2 0.37 2.4 20
8-292K-023 Compare 5060 45720 1.13 10UNC 2.38 0.63 0.58 1.74 1.47 0.6 2.56 0.5 2.76 50
8-292K-025 Compare 5060 45846 1.31 9UNC 2.38 0.63 0.58 1.74 1.47 0.6 2.56 0.5 2.76 50
8-292K-032 Compare 7040 1 1.5 8UNC 2.85 0.75 0.7 2.08 1.79 0.75 3.07 0.56 3.31 110
8-292K-045 Compare 9900 1 1/4 1.88 7UNC 3.57 0.94 0.88 2.43 2.23 0.91 3.75 0.63 4.13 250
8-292K-070 Compare 15400 1 1/2 2.25 6UNC 4.32 1.14 1.05 2.99 2.71 1.2 4.49 0.87 4.96 300
8-292K-090 Compare 19800 1 3/4 2.63 5UNC 5.02 1.34 1.26 3.51 3.09 1.5 5.2 1 5.79 400
