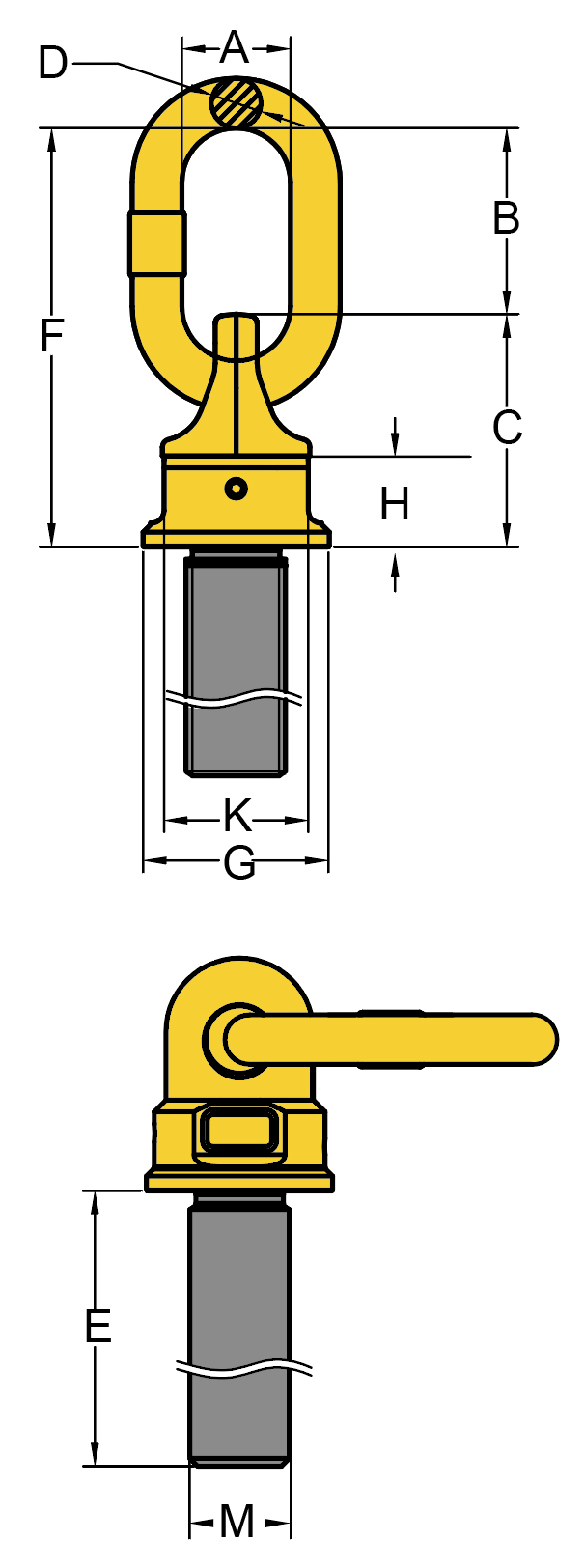

| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | C | D | F | G | H | K | Nm | ||
| 8-273-003/108L | Compare | 0.3 | M 8 | 102 | 1.25 | 29 | 47.5 | 8 | 79.5 | 35 | 23.5 | 30 | 10 |
| 8-273-004/128L | Compare | 0.45 | M 10 | 122 | 1.5 | 29 | 47.5 | 8 | 79.5 | 35 | 23.5 | 30 | 10 |
| 8-273-006/145L | Compare | 0.6 | M 12 | 140 | 1.75 | 35 | 55 | 10 | 105 | 40 | 28 | 36 | 10 |
| 8-273-013/186L | Compare | 1.3 | M 16 | 180 | 2 | 36 | 66 | 13 | 116 | 46 | 34 | 41 | 30 |
| 8-273-020/235L | Compare | 2 | M 20 | 223 | 2.5 | 36 | 83 | 13 | 137 | 62 | 44 | 55 | 70 |
| 8-273-035/267L | Compare | 3.5 | M 24 | 257 | 3 | 41 | 104 | 19 | 170 | 78 | 52 | 70 | 150 |
| 8-273-050/346L | Compare | 5 | M 30 | 330 | 3.5 | 50 | 141 | 22 | 227 | 90 | 69 | 80 | 350 |
| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | M | E | TPI | A | C | D | F | G | H | K | ft.lbs | ||
| 8-274-006/159L | Compare | 1300 | 45659 | 6.06 | 13UNC | 1.38 | 2.17 | 0.39 | 4.13 | 1.57 | 1.1 | 1.42 | 7 |
| 8-274-013/186L | Compare | 2800 | 45785 | 7.09 | 11UNC | 1.42 | 2.6 | 0.51 | 4.57 | 1.81 | 1.34 | 1.61 | 20 |
| 8-274-018/234L | Compare | 4400 | 45720 | 8.74 | 10UNC | 1.42 | 3.25 | 0.51 | 5.37 | 2.44 | 1.71 | 2.17 | 20 |
| 8-274-035/256L | Compare | 7700 | 1 | 9.69 | 8UNC | 1.61 | 4.09 | 0.75 | 6.69 | 3.07 | 2.05 | 2.76 | 110 |
| 8-274-050/347L | Compare | 11000 | 1 1/4 | 13.03 | 7UNC | 1.97 | 5.55 | 0.87 | 8.94 | 3.54 | 2.72 | 3.15 | 250 |
