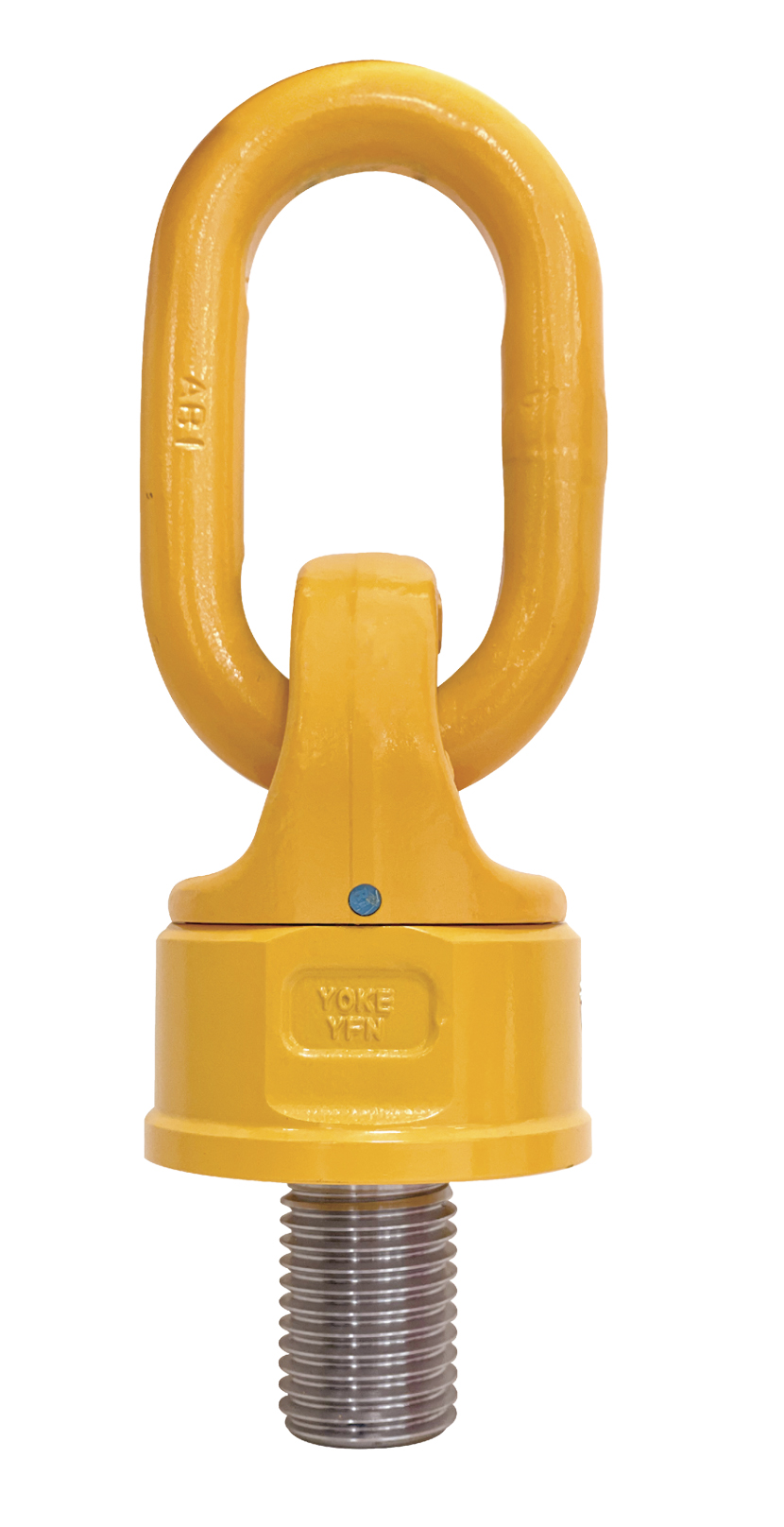

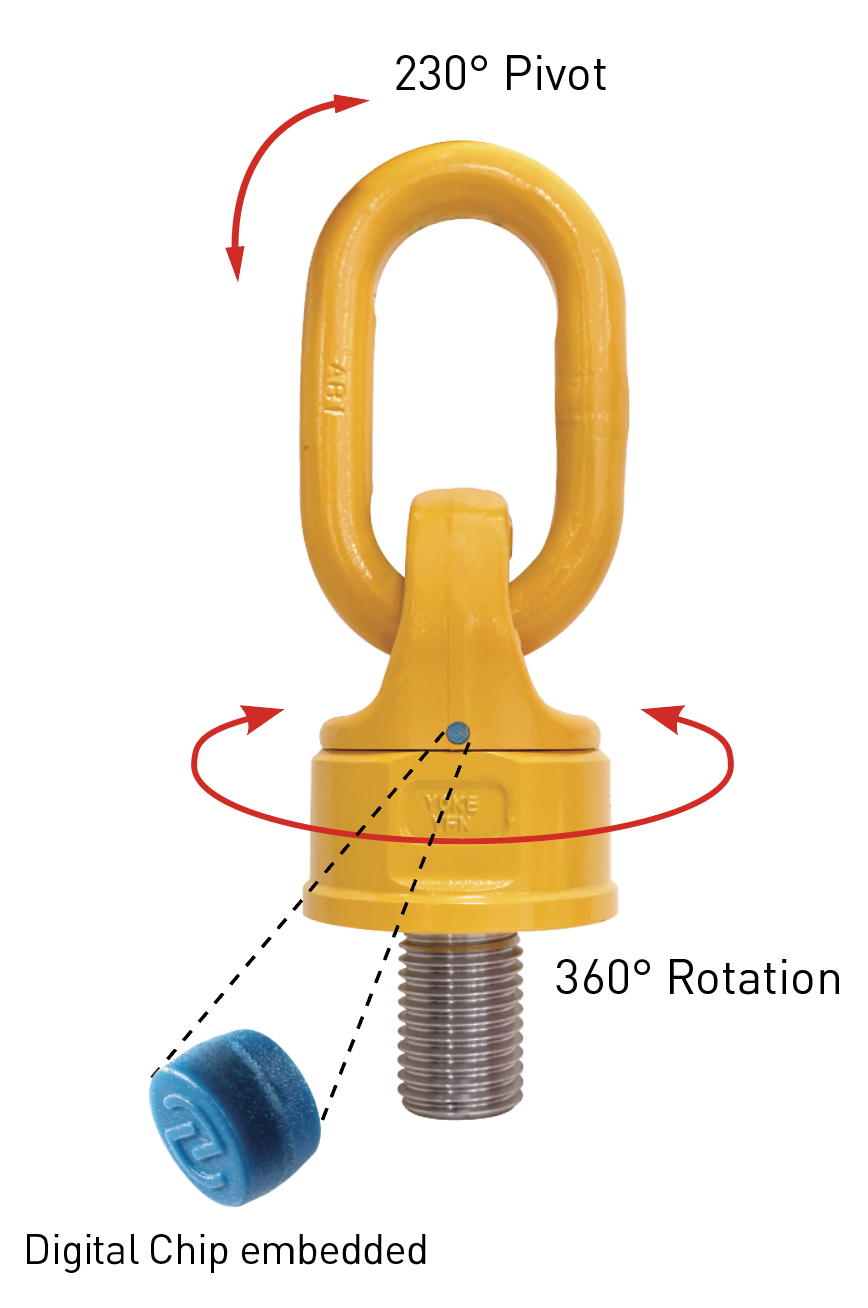

Lifting Point 8-271 and 8-272

Item No.8-271 and 8-272
Compare Datasheet

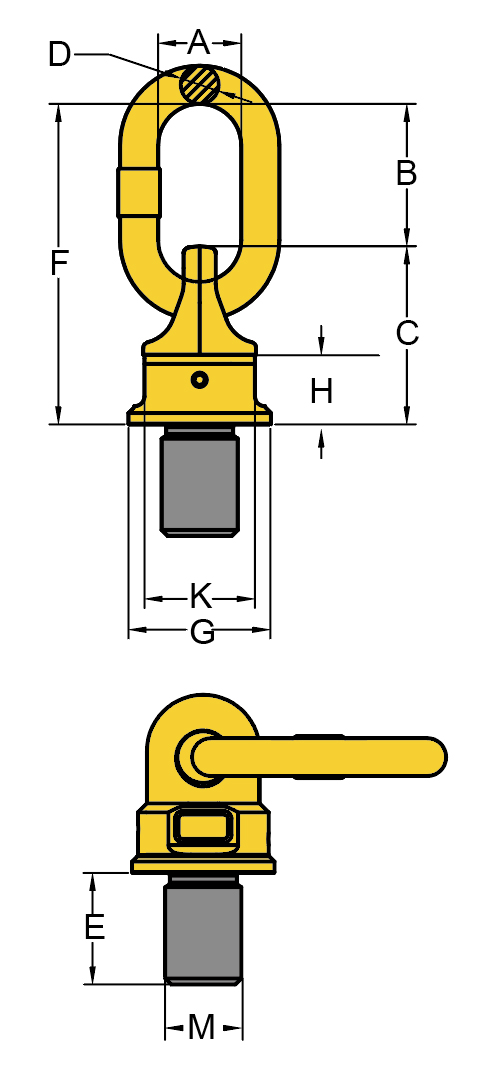

Item NO. Compare Working Load LimitThread versionDimensionsTorque in
tonnesMEPitch DIN13ACDFGHKNm
8-271-003 Compare 0.4 M 8 12 1.25 29 40 8 72 35 16 30 10
8-271-004 Compare 0.6 M 10 15 1.5 29 40 8 72 35 16 30 10
8-271-006 Compare 0.7 M 12 18 1.75 35 45 10 95 40 18 36 10
8-271-013 Compare 1.5 M 16 24 2 36 54 13 104 46 22 41 30
8-271-020 Compare 2.5 M 20 30 2.5 36 68 13 122 62 29 55 70
8-271-035 Compare 4 M 24 36 3 41 88 19 154 78 36 70 150
8-271-060 Compare 6 M 30 45 3.5 50 120 22 206 90 48 80 350
8-271-067 Compare 6.7 M 30 45 3.5 50 120 22 206 90 48 80 350
8-271-080 Compare 10 M 36 54 4 50 120 22 206 90 48 80 410
8-271-120 Compare 13 M 42 63 4.5 67 122 25 235 98 50 84 550
8-271-130 Compare 14 M 48 72 5 67 122 25 235 98 50 84 550
8-271-140 Compare 20 M 52 78 5 72 150 32 270 120 60 94 750
8-271-160 Compare 20 M 56 84 5.5 72 150 32 270 120 60 94 800
8-271-161 Compare 20 M 64 96 6 72 150 32 270 120 60 94 800
8-271-310 Compare 40 M 72 108 6 90 210 45 340 170 83 145 1200
8-271-350 Compare 40 M 80 120 6 90 210 45 340 170 83 145 1500
8-271-400 Compare 40 M 90 135 6 90 210 45 340 170 83 145 2000
Item NO. file download Compare Working Load LimitThread versionDimensionsTorque in
lbsMETPIACDFGHKft.lbs
8-272-006 Download Compare 1550 45659 0.75 13UNC 1.38 1.77 0.39 3.74 1.57 0.71 1.42 7
8-272-013 - Compare 3300 45785 0.94 11UNC 1.42 2.13 0.51 4.09 1.81 0.87 1.61 20
8-272-018 - Compare 4400 45720 1.13 10UNC 1.42 2.68 0.51 4.09 1.81 0.87 1.61 20
8-272-020 - Compare 5500 45846 1.31 9UNC 1.42 2.68 0.51 4.8 2.44 1.14 2.17 50
8-272-035 - Compare 8800 1 1.5 8UNC 1.61 3.46 0.75 6.06 3.07 1.42 2.76 110
8-272-060 - Compare 13200 1 1/4 1.88 7UNC 1.97 4.72 0.87 8.11 3.54 1.89 3.15 250
8-272-080 - Compare 22000 1 1/2 2.25 6UNC 1.97 4.72 0.87 8.11 3.54 1.89 3.15 300
8-272-120 - Compare 28600 1 3/4 2.63 5UNC 2.64 4.8 0.98 9.25 3.86 1.97 3.31 400
8-272-130 - Compare 30800 2 3 4.5UNC 2.64 4.8 0.98 9.25 3.86 1.97 3.31 400
8-272-140 - Compare 44000 2 1/4 3.38 4.5UNC 2.83 5.91 1.26 10.63 4.72 2.36 3.7 550
8-272-160 - Compare 44000 2 1/2 3.75 4UNC 2.83 5.91 1.26 10.63 4.72 2.36 3.7 590
