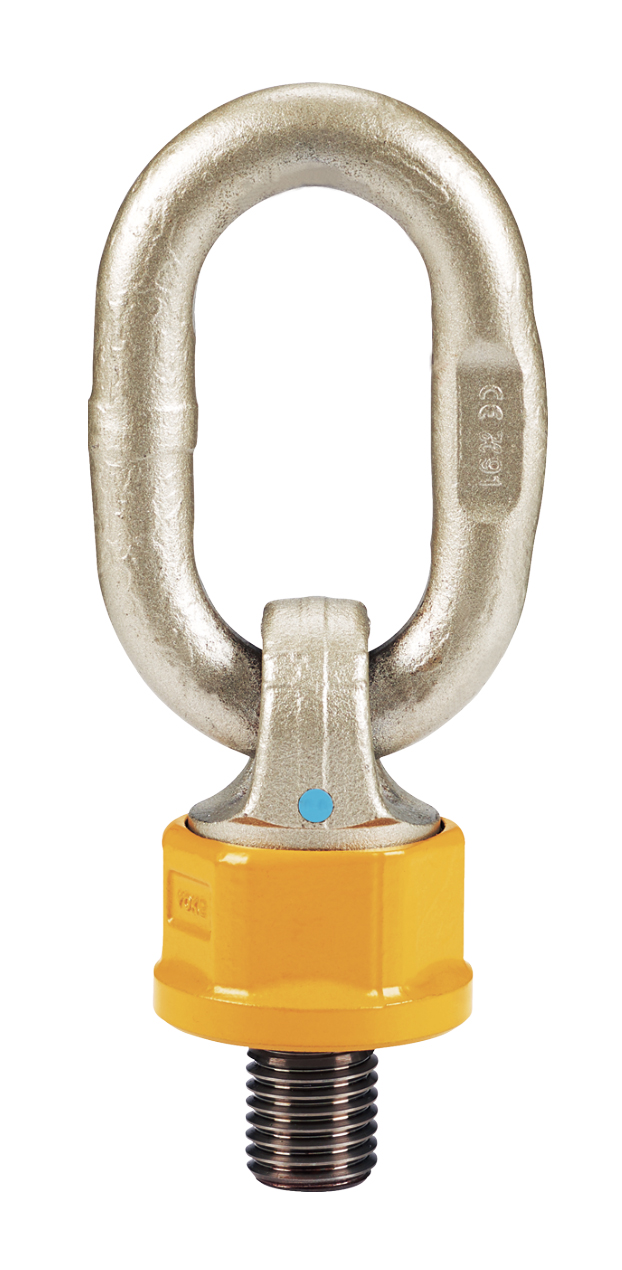

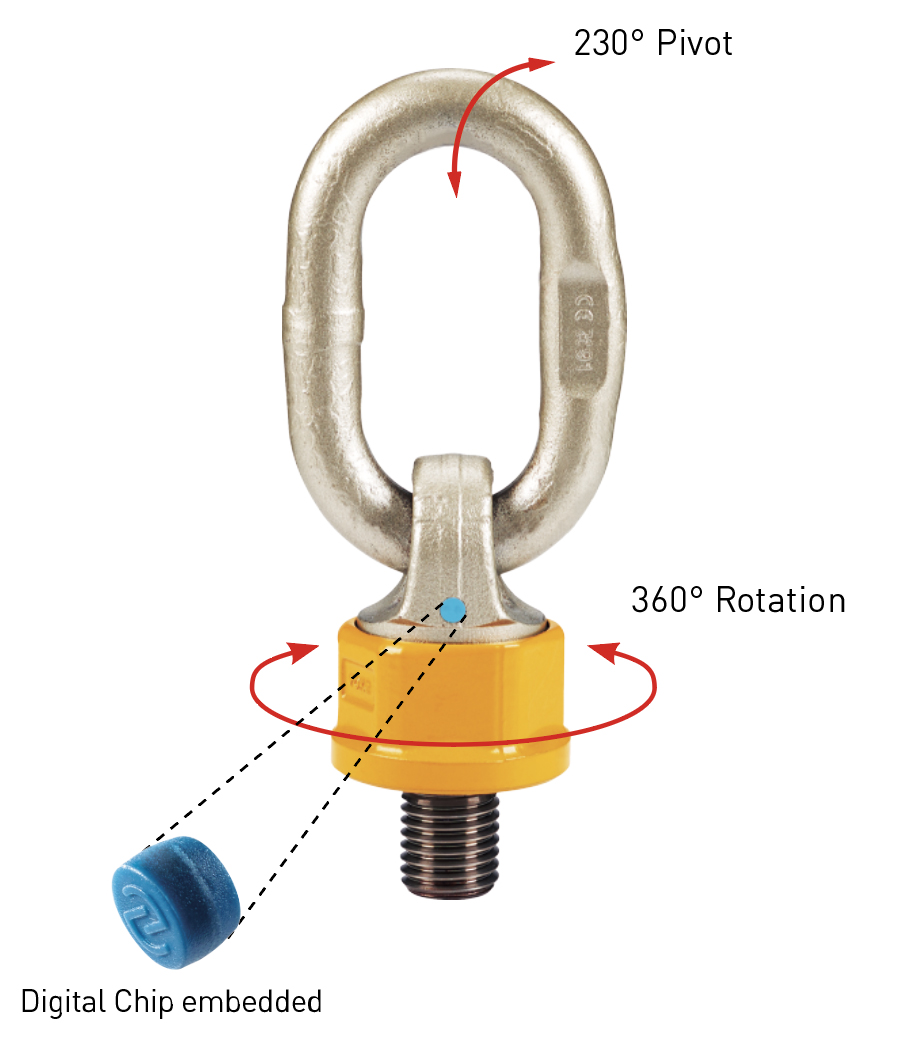

Lifting Point 8-251 and 8-252

Item No.8-251-and-8-252

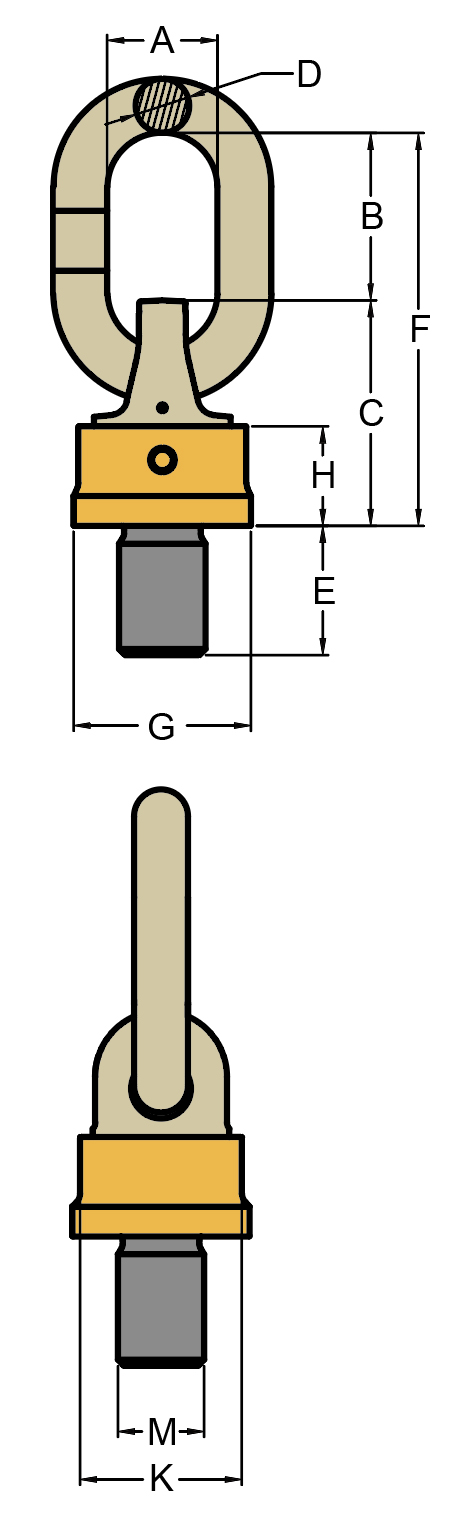

Item NO.	Compare	Working Load Limit	Thread version			Dimensions							Torque in
		tonnes	M	E	Pitch DIN13	A	C	D	F	G	H	K	Nm
8-251-004-01	Compare	0.3	M8	12	1.25	35	48	13	101	36.5	20.5	34	10 - 40
8-251-007-02	Compare	0.7	M12	18	1.75	35	48	13	101	36.5	20.5	34	15 - 40
8-251-014-02	Compare	1.4	M16	24	2	35	48	13	101	36.5	20.5	34	45 - 130
8-251-014-04	Compare	1.7	M20	30	2.5	35	48	13	101	36.5	20.5	34	75 - 130
8-251-025-01	Compare	2.5	M20	30	2.5	35	68	16	127	52	28	46	100 - 170
8-251-040-02	Compare	4	M24	36	3	40	75	19	148	57	34.5	50	190 - 280
8-251-067-02	Compare	6.7	M30	45	3.5	40	95	20	163	70	41	65	230 - 400
8-251-080-02	Compare	8	M30	45	3.5	50	106	22	201	81	48	75	270 - 600
8-251-100-02	Compare	10	M36	54	4	50	106	22	201	81	48	75	270 - 600
8-251-125-03	Compare	12.5	M42	63	4.5	50	106	22	201	81	48	75	270 - 700
8-251-125-05	Compare	12.5	M48	72	5	50	106	22	201	81	48	75	270 - 700
8-251-170-04	Compare	17	M48	72	5	70	127	32	256	104	58	95	350 - 800
8-251-170-045	Compare	17	M52	78	5	70	127	32	256	104	58	95	350 - 800
8-251-170-06	Compare	18	M56	84	5.5	70	127	32	256	104	58	95	350 - 900
8-251-200-01	Compare	20	M64	96	6	70	127	32	256	104	58	95	350 - 900
8-251-280-01	Compare	28	M64	96	6	80	174	36	305	129	78	115	500 - 1000
8-251-350-005	Compare	35	M72	108	6	92	187	45	366	148	83	135	500 - 1400
8-251-350-01	Compare	35	M80	120	6	92	187	45	366	148	83	135	500 - 1400
8-251-400-005	Compare	40	M72	108	6	92	210	45	340	170	83	145	500 - 1500
8-251-400-01	Compare	40	M80	120	6	92	210	45	340	170	83	145	500 - 1500
8-251-400-025	Compare	40	M90	135	6	92	210	45	340	170	83	145	500 - 1500
8-251-400-04	Compare	40	M100	150	6	92	210	45	340	170	83	145	500 - 1700

Item NO.	Compare	Working Load Limit	Thread version			Dimensions							Torque in
		lbs	M	E	TPI	A	C	D	F	G	H	K	ft.lbs
8-252-007-01	Compare	1100	45724	0.56	16UNC	1.38	1.89	0.51	3.98	1.44	0.81	1.34	45868
8-252-007-02	Compare	1500	45659	0.75	13UNC	1.38	1.89	0.51	3.98	1.44	0.81	1.34	45991
8-252-014-02	Compare	3000	45785	0.94	11UNC	1.38	1.89	0.51	3.98	1.44	0.81	1.34	33-90
8-252-025-01	Compare	5500	45720	1.13	10UNC	1.38	2.68	0.63	5	2.05	1.1	1.81	70-120
8-252-040-02	Compare	8800	1	1.5	8UNC	1.57	2.95	0.75	5.83	2.24	1.36	1.97	140-200
8-252-067-02	Compare	14700	1 1/4	1.88	7UNC	1.57	3.74	0.79	6.42	2.76	1.61	2.56	160-170
8-252-080-02	Compare	17600	1 1/4	1.88	7UNC	1.97	4.17	0.87	7.91	3.19	1.89	2.95	190-440
8-252-100-02	Compare	22000	1 1/2	2.25	6UNC	1.97	4.17	0.87	7.91	3.19	1.89	2.95	190-440
8-252-125-03	Compare	27500	1 3/4	2.63	5UNC	1.97	4.17	0.87	7.91	3.19	1.89	2.95	190-510
8-252-125-05	Compare	27500	2	3	4.5UNC	1.97	4.17	0.87	7.91	3.19	1.89	2.95	190-510
8-252-170-04	Compare	37400	2	3	4.5UNC	2.76	5	1.26	10.08	4.09	2.28	3.74	250-590
8-252-170-06	Compare	39600	2 1/4	3.38	4.5UNC	2.76	5	1.26	10.08	4.09	2.28	3.74	250-660
8-252-200-01	Compare	44000	2 1/2	3.75	4UNC	2.76	5	1.26	10.08	4.09	2.28	3.74	250-660
8-252-280-01	Compare	61700	2 1/2	3.75	4UNC	3.15	6.85	1.42	12.01	5.08	3.07	4.53	360-730
8-252-350-01	Compare	77100	3 1/2	5.25	4UNC	3.62	7.36	1.77	14.41	5.83	3.27	5.31	360-1030
