Lifting Point 8-231 and 8-232

Lifting Point 8-231 and 8-232

Home Products Chain fittings and Wire Rope Accessories Yellow Point(YP) Lifting Point 8-231 and 8-232
  • ALL_catalog_25I26_E5nAn8NoSv
  • 8-231 (1)
  • ALL_catalog_25I26_E5nAn8NoSv
  • 8-231 (1)
ALL_catalog_25I26_E5nAn8NoSv 8-231 (1)

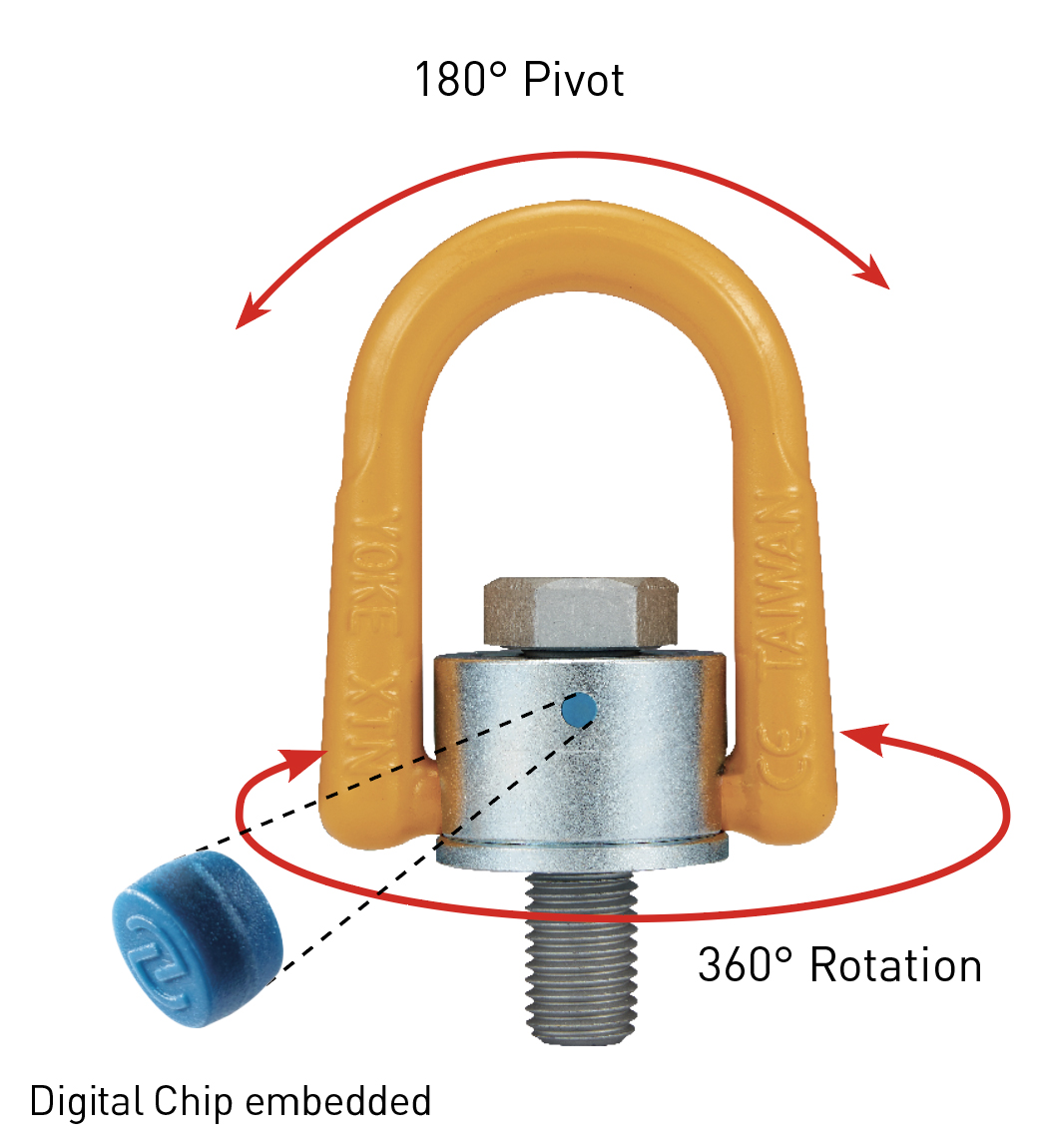

Lifting Point 8-231 and 8-232

Item No.8-231 and 8-232
Compare Datasheet

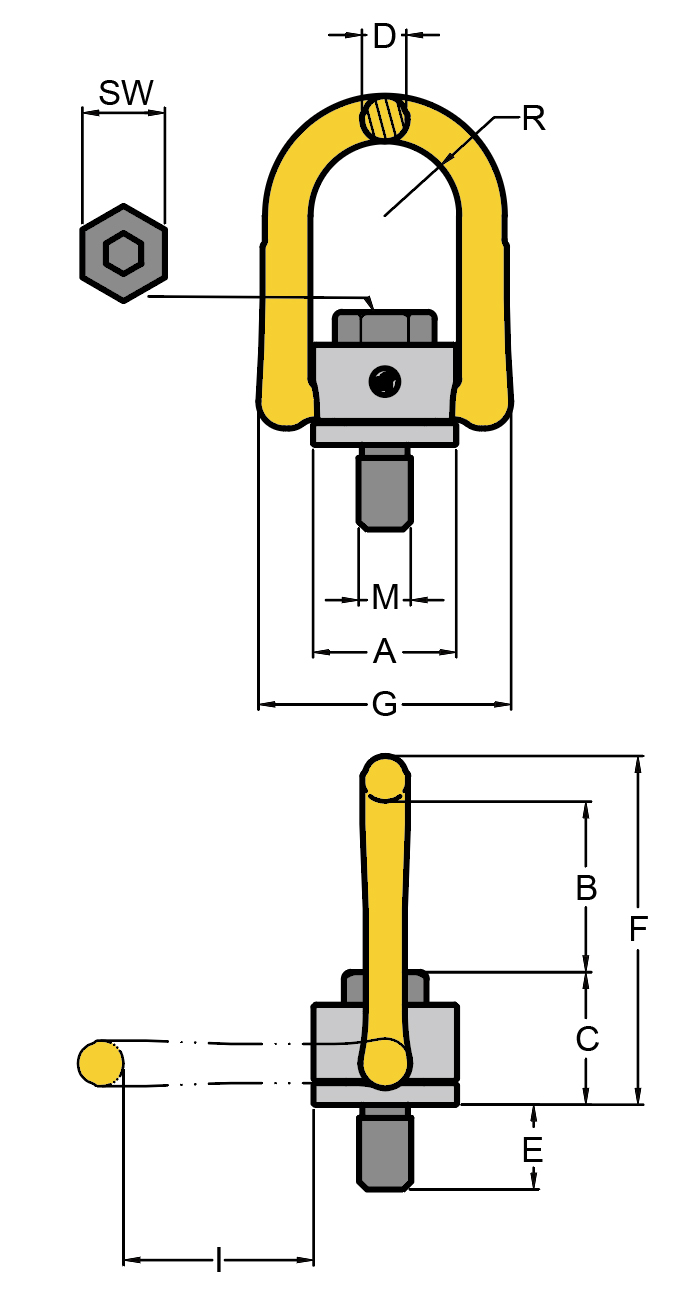

Item NO. Compare Working Load LimitThread versionDimensionsTorque in
tonnesMEPitch DIN13ACDFGHIRSSWNm
8-231-005 Compare 0.5 M 8 12 1.25 33 28 11 80 58 23 44 17 6 13 30
8-231-007 Compare 0.7 M 10 15 1.5 33 29 11 80 58 23 44 17 6 17 60
8-231-010 Compare 1 M 12 20 1.75 33 31 11 80 58 23 44 17 8 19 100
8-231-015 Compare 1.5 M 14 21 2 50 45 17 116 90 36 63 27 10 22 120
8-231-020 Compare 2 M 16 24 2 50 46 17 116 90 36 63 27 10 24 150
8-231-025 Compare 2.5 M 18 27 2.5 65 57 20 155 108 44 86 34 12 30 200
8-231-030 Compare 3 M 20 34 2.5 51 49 17 116 90 36 63 27 12 30 250
8-231-050 Compare 5 M 24 36 3 72 59 25 163 126 45 88 37 14 36 400
8-231-056 Compare 5.6 M 27 38 3 87 79 30 204 148 62 110 46 17 41 400
8-231-078 Compare 7.8 M 30 48 3.5 87 81 30 204 148 62 110 46 17 46 500
8-231-100 Compare 10 M 36 54 4 87 85 30 204 148 62 110 46 22 55 1000
8-231-125 Compare 12.5 M 36 56 4 110 98 36 248 188 82 128 57 22 55 1000
8-231-156 Compare 15.6 M42 63 4.5 110 108 36 248 188 82 128 57 24 65 1500
8-231-200 Compare 20 M48 72 5 110 112 36 248 188 82 128 57 27 75 2000
8-231-220 Compare 22 M56 84 5.5 123 121 36 274 202 91 146 64 27 85 2100
8-231-225 Compare 22.5 M64 100 6 123 126 36 274 202 91 146 64 32 95 2200
Item NO. Compare Working Load LimitThread versionDimensionsTorque in
lbsMETPIACDFGHIRSSWft.lbs
8-232-010 Compare 1700 45659 0.81 13 UNC 1.3 1.2 0.41 3.16 2.29 0.91 1.72 0.67 45793 45720 73
8-232-020 Compare 3500 45785 1.13 11 UNC 1.97 1.81 0.65 4.56 3.54 1.42 2.48 1.06 45724 15/16 110
8-232-030 Compare 5300 45720 1.54 10 UNC 2.01 1.89 0.65 4.56 3.54 1.42 2.46 1.06 45659 1 1/8 185
8-232-038 Compare 6700 45846 1.42 9 UNC 2.81 2.28 0.98 6.42 4.94 1.75 3.45 1.47 45785 1 5/16 221
8-232-050 Compare 8800 1 1.61 8 UNC 2.81 2.34 0.98 6.42 4.94 1.75 3.45 1.47 45785 1 1/2 295
8-232-078 Compare 13700 1 1/4 2.09 7 UNC 3.43 3.23 1.16 8.02 5.82 2.44 4.31 1.79 45846 1 7/8 368
8-232-125 Compare 22000 1 1/2 2.4 6 UNC 4.33 4.05 1.42 9.8 7.4 2.95 5.04 2.24 1 2 1/4 585
8-232-200 Compare 35200 2 3 4.5 UNC 4.33 4.53 1.42 9.8 7.4 3.35 4.88 2.24 1 1/4 3 1476
