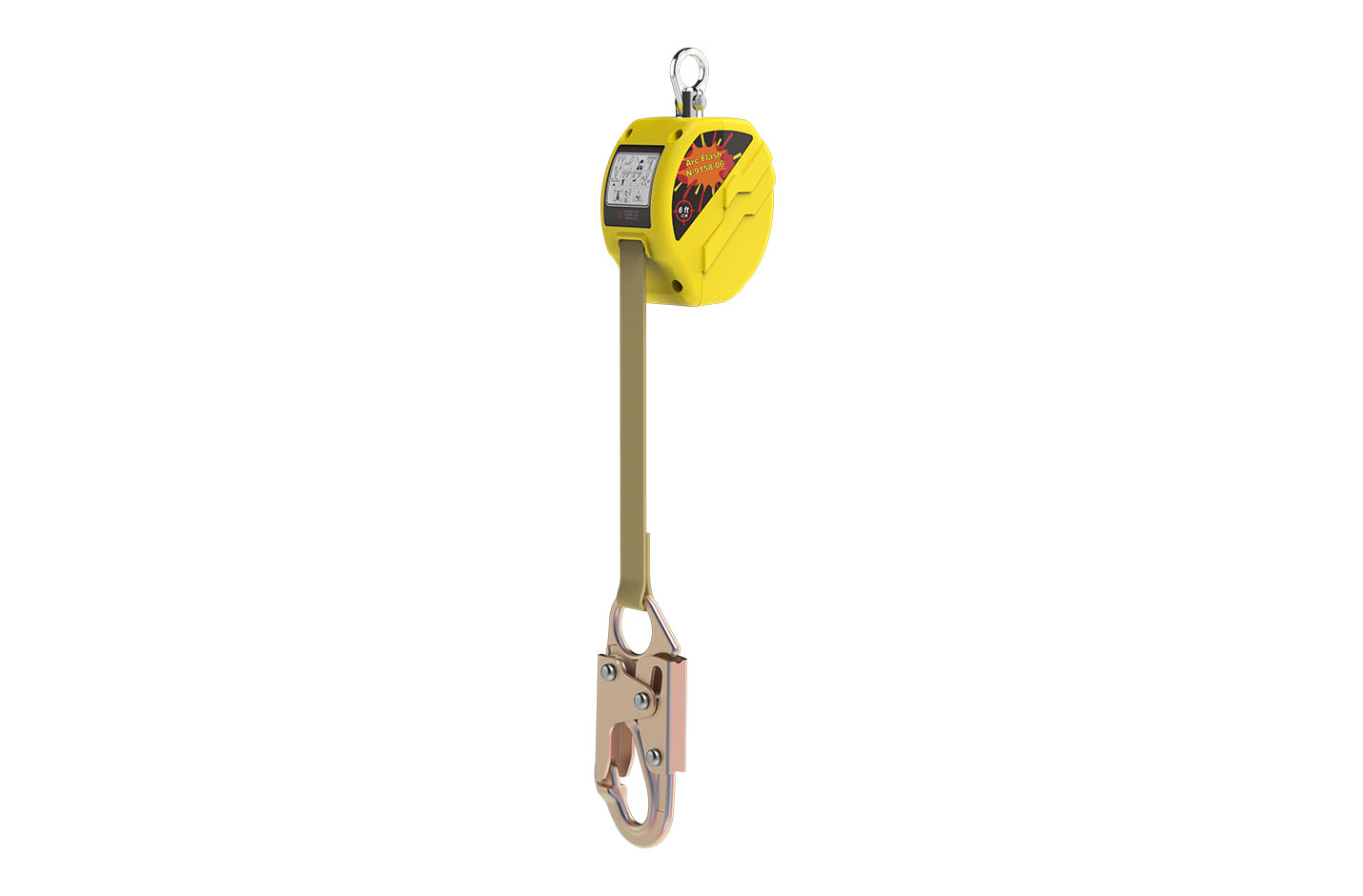

LEAF-Arc Flash Webbing Personal Fall LimiterInternal Shock Absorbing System
Item No.N-9158-06
The innovative design of the energy absorber ensures reliable
performance across various environmental conditions, and it is
equipped with a Kevlar® cover for enhanced arc flash protection.
performance across various environmental conditions, and it is
equipped with a Kevlar® cover for enhanced arc flash protection.
Class 1
| Complies with | ANSI Z359.14-2021 CE EN360-2023 CSA Z259.2.2-17 |
| Housing | Polycarbonate |
| Webbing | 3/4” (19mm) Aramid |
| Working length | 6 ft (1.8 m) |
| Max Arrest Distance | 42 inches |
| Max Arrest Distance(ANSI) | 1350 lbs |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | ||||
| N-9158-06 | Compare | 1.1 | 1.8 | 340 | 89 | 61 | ✔ | ✔ | ✔ | Polycarbonate | 3/4” (19mm) Aramid | 310 lbs | 420 lbs | 140 kgs |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9158-06 | Compare | 2.5 | 6 | 13.4 | 3.5 | 2.4 | ✔ | ✔ | ✔ | Polycarbonate | 3/4” (19mm) Aramid | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
