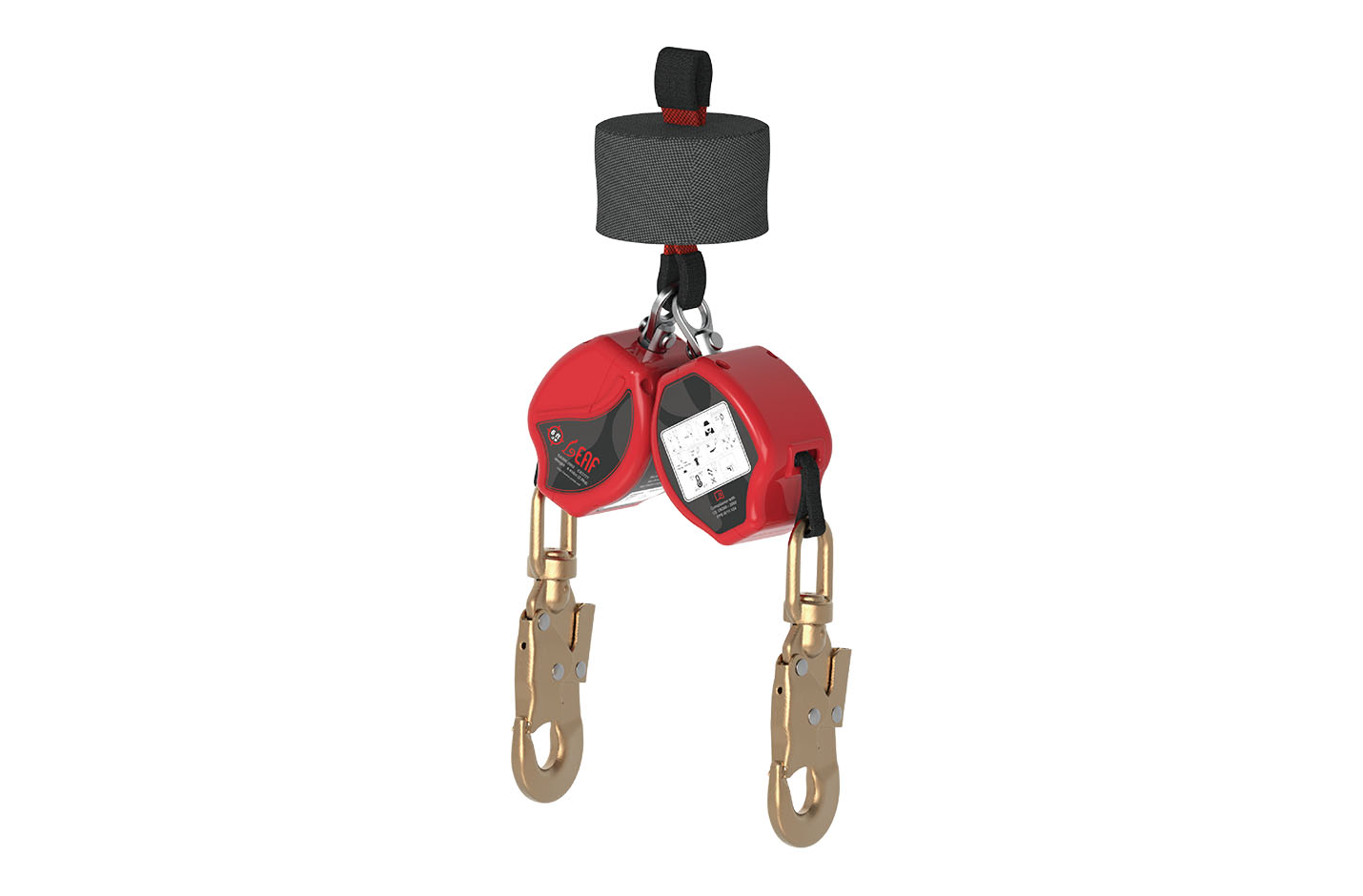

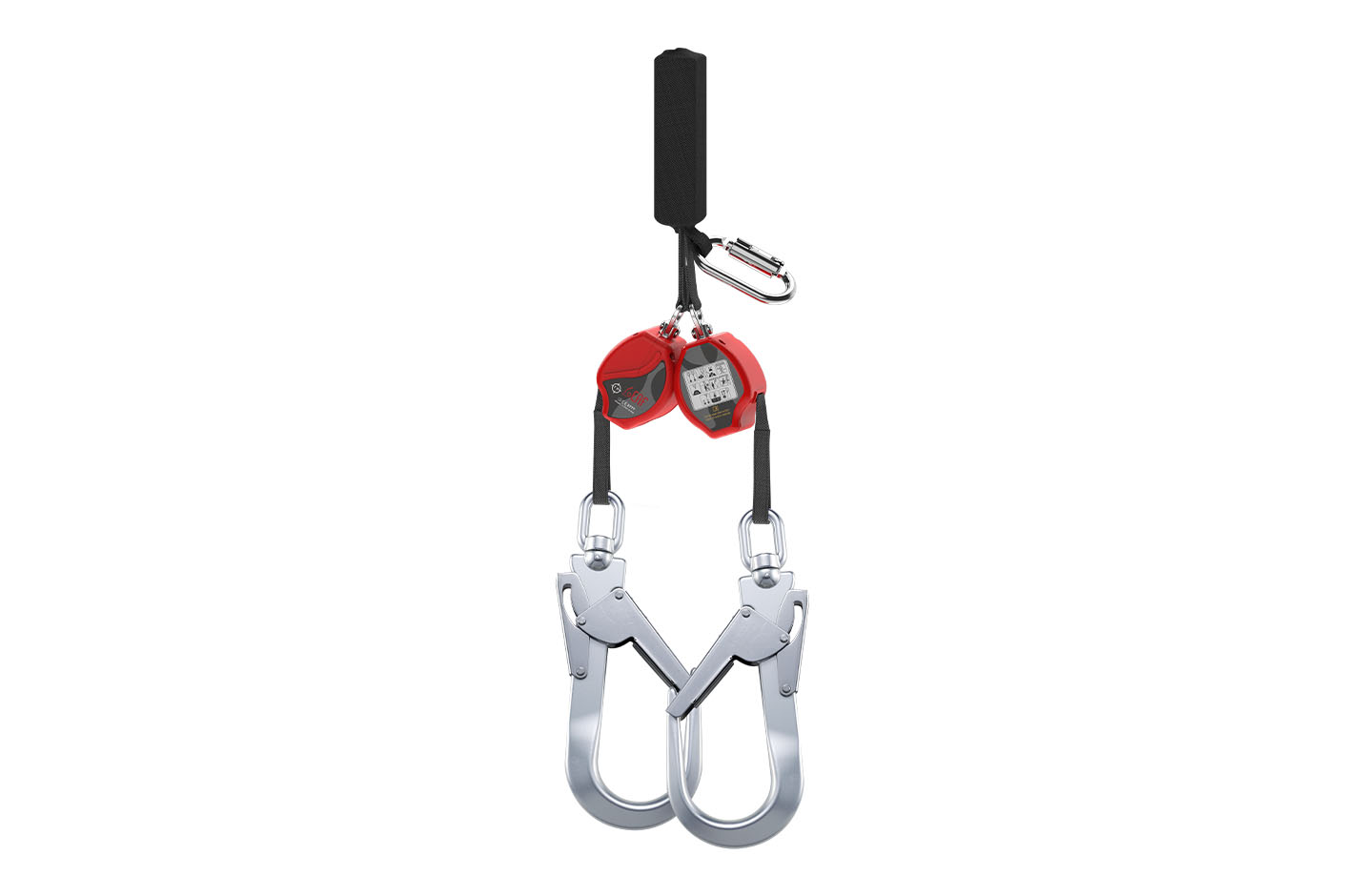

LEAF-Twin Webbing Personal Fall Limiter(PFL)
Item No.N-9327-06UT/N-9327-07UT
In the design of the Twin Webbing Personal Fall Limiter with External Shock Absorbing System, the energy absorber is positioned on the upper section, close to the user’s connection point.
This configuration ensures the shock absorption mechanism is activated at the very first moment of a fall, effectively reducing impact forces on the body and keeping them within the strict limits defined by CE standards (EN360:2023).
This configuration ensures the shock absorption mechanism is activated at the very first moment of a fall, effectively reducing impact forces on the body and keeping them within the strict limits defined by CE standards (EN360:2023).
Class 1
| Complies with |
N-9327-06UT : ANSI Z.359.14-2021/CE EN360-2023/CSA Z259.2.2-17 N-9327-07UT : CE EN360 - 2023 |
| Housing | Polycarbonate |
| Webbing | 3/4” (19mm) UHMWPE |
| Working length |
N-9327-06UT : 6 ft (1.8 m) N-9327-07UT : 7 ft (2.13 m) |
| Max Arrest Distance (ANSI) | 42 inches |
| Max Arrest Force (ANSI) | 1350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arrest Force (EN) | 6 kN |
| Capacity (EN) | 140 kgs |
| Capacity (ANSI) | 310 lbs |
| Capacity (OSHA) | 420 lbs |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | EN | EN | ||||
| N-9327-06UT | Compare | 2 | 1.8 | 300 | 76 | 61 | ✔ | ✔ | ✔ | Polycarbonate | 3/4” (19mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9327-07UT | Compare | 2.4 | 2.1 | 470 | 76 | 61 | - | - | ✔ | Polycarbonate | 3/4” (19mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 2m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9327-06UT | Compare | 4.4 | 6 | 11.8 | 3 | 2.4 | ✔ | ✔ | ✔ | Polycarbonate | 3/4” (19mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9327-07UT | Compare | 5.3 | 7 | 18.5 | 3 | 2.4 | - | - | ✔ | Polycarbonate | 3/4” (19mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
