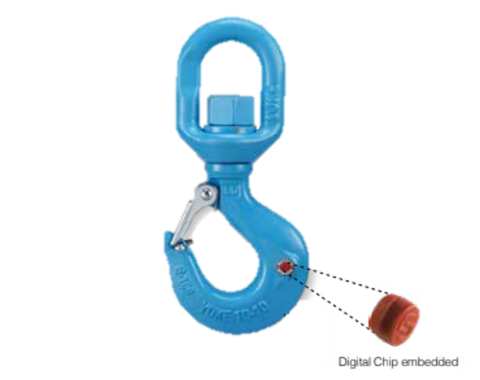

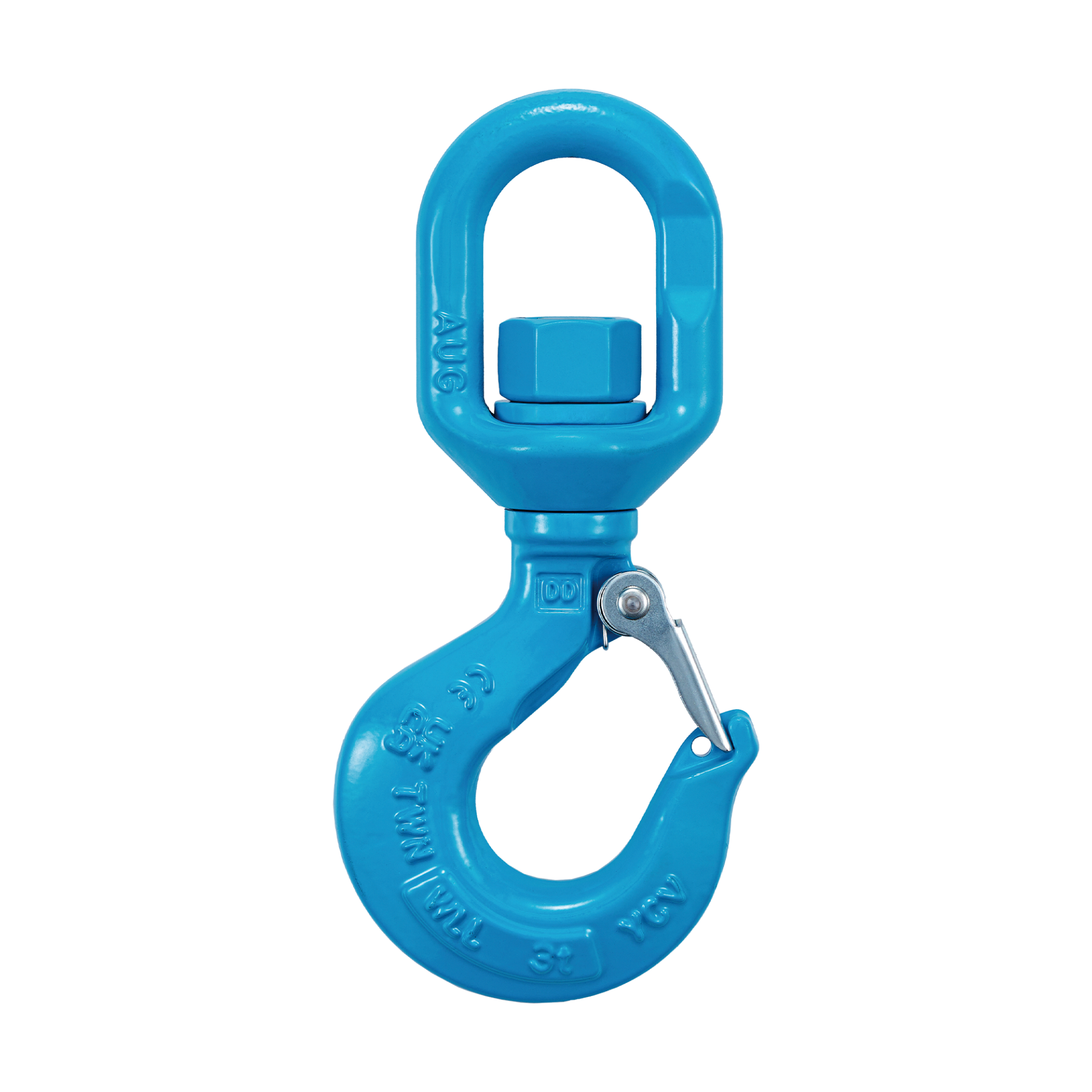

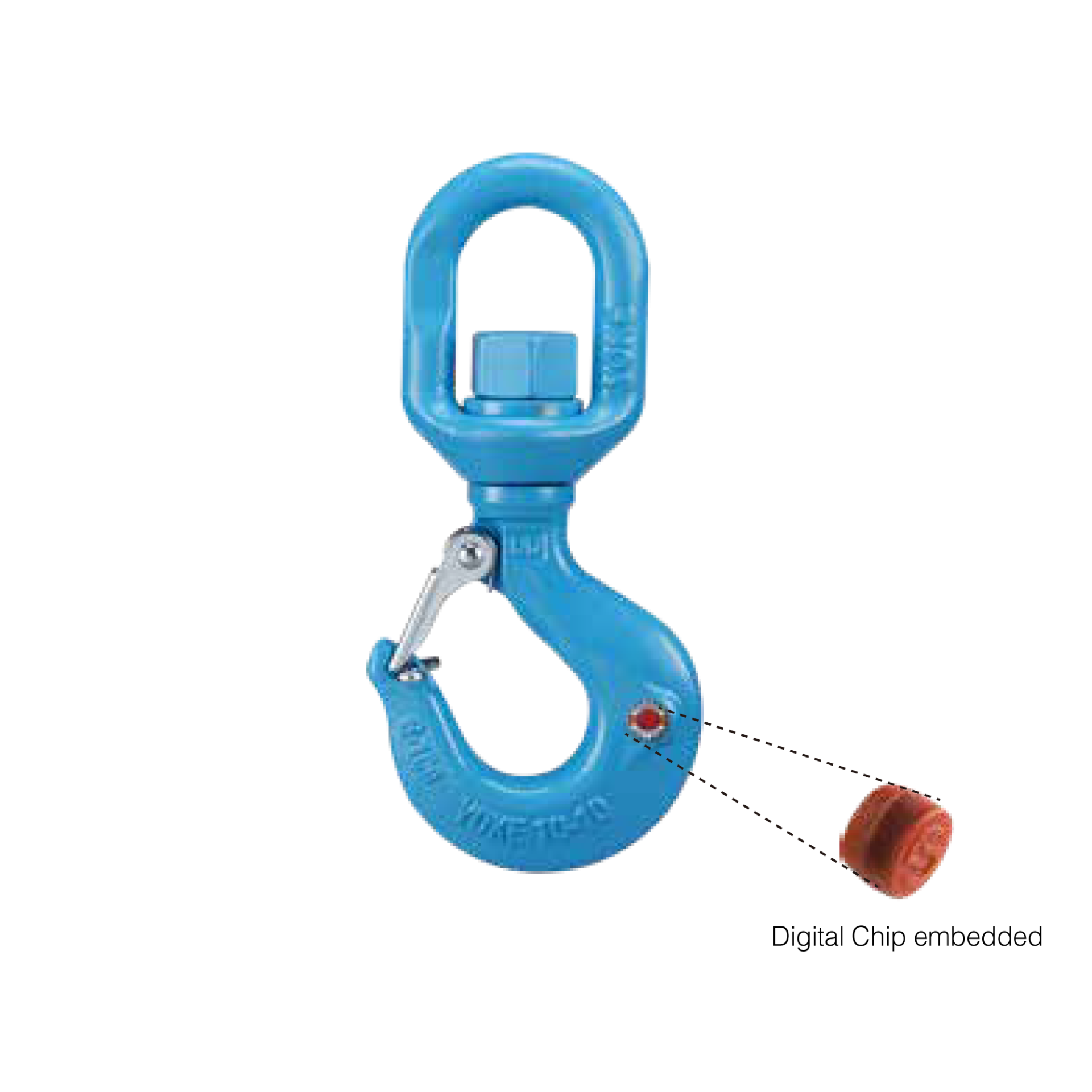

Hoist Hook 8-175
Item No.8-175
• Quenched and Tempered Alloy Steel.
• Proof Load tested at 2 times of 5:1 WLL with
certification for each batch manufactured.
• Fatigue rated to 20,000 cycles at 1.5 times of 5:1
WLL.
• Magnaflux crack detection is performed 100% on
each batch.
• YOKE Swivel Hoist Hooks are Predrilled to accept a
YOKE latch kits.
• Proof Load tested at 2 times of 5:1 WLL with
certification for each batch manufactured.
• Fatigue rated to 20,000 cycles at 1.5 times of 5:1
WLL.
• Magnaflux crack detection is performed 100% on
each batch.
• YOKE Swivel Hoist Hooks are Predrilled to accept a
YOKE latch kits.
WARNING INFORMATION: This hook is a positioning device and is not intended to rotate under load. For swivel hooks designed to rotate underload, see 8-175N.

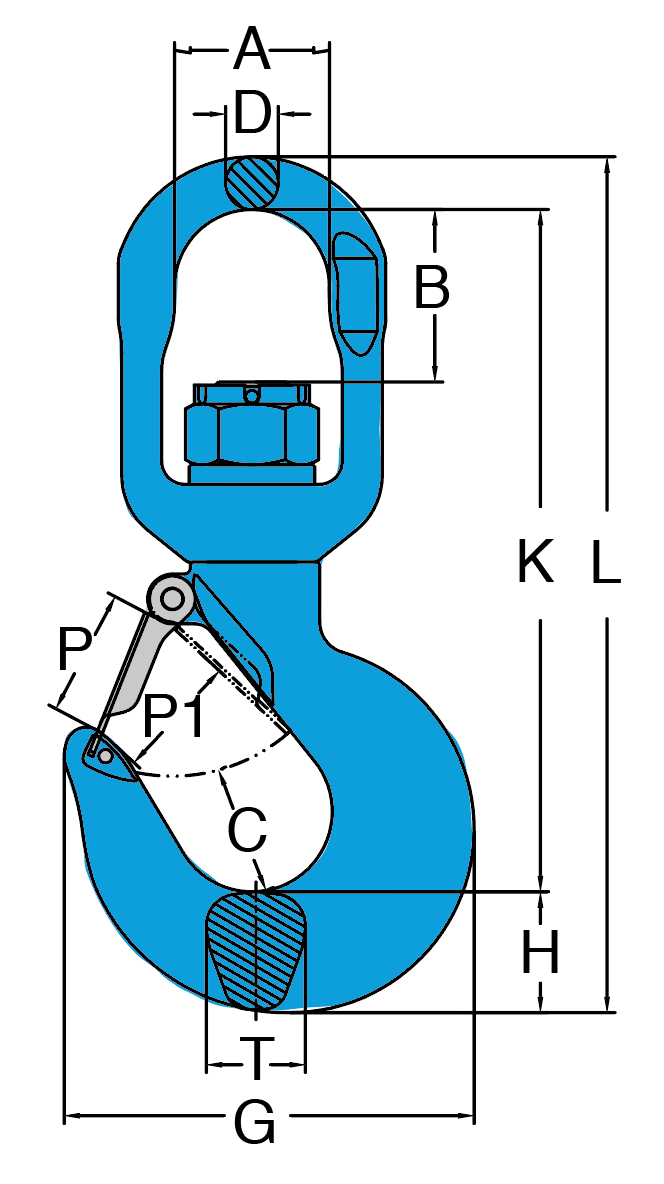

| Item NO. | Compare | Working Load Limit | Hook Feature Code | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | C | D | G | H | K | L | P | P1 | T | |||
| 8-175-01 | Compare | 1 | AA | 32 | 25 | 12 | 78 | 19 | 123 | 154 | 26 | 22 | 16 |
| 8-175-015 | Compare | 1.5 | BB | 32 | 25 | 12 | 81 | 23 | 131 | 165 | 24 | 19 | 17 |
| 8-175-02 | Compare | 2 | CC | 36 | 26 | 13 | 90 | 27 | 145 | 184 | 24 | 20 | 22 |
| 8-175-03 | Compare | 3 | DD | 41 | 29 | 16 | 102 | 29 | 172 | 217 | 28 | 25 | 24 |
| 8-175-05 | Compare | 5 | EE | 46 | 38 | 21 | 122 | 38 | 218 | 277 | 35 | 31 | 31 |
| 8-175-07 | Compare | 7 | FF | 61 | 49 | 23 | 160 | 48 | 261 | 332 | 43 | 39 | 35 |
| 8-175-11 | Compare | 11 | GG | 74 | 62 | 25 | 196 | 56 | 327 | 410 | 61 | 57 | 47 |
| 8-175-15 | Compare | 15 | HH | 97 | 65 | 33 | 221 | 64 | 372 | 471 | 72 | 62 | 56 |
| 8-175-22 | Compare | 22 | JJ | 123 | 71 | 51 | 277 | 76 | 469 | 599 | 86 | 81 | 68 |
| 8-175-30 | Compare | 30 | KK | 123 | 87 | 51 | 353 | 93 | 503 | 651 | 89 | 83 | 76 |
| Item NO. | Compare | Working Load Limit | Hook Feature Code | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | C | D | G | H | K | L | P | P1 | T | |||
| 8-175-01 | Compare | 1 | AA | 1.26 | 0.98 | 0.47 | 3.07 | 0.75 | 4.84 | 6.06 | 1.02 | 0.87 | 0.63 |
| 8-175-015 | Compare | 1.5 | BB | 1.26 | 0.98 | 0.47 | 3.19 | 0.91 | 5.16 | 6.5 | 0.94 | 0.75 | 0.67 |
| 8-175-02 | Compare | 2 | CC | 1.42 | 1.02 | 0.51 | 3.54 | 1.06 | 5.71 | 7.24 | 0.94 | 0.79 | 0.87 |
| 8-175-03 | Compare | 3 | DD | 1.61 | 1.14 | 0.63 | 4.02 | 1.14 | 6.77 | 8.54 | 1.1 | 0.98 | 0.94 |
| 8-175-05 | Compare | 5 | EE | 1.81 | 1.5 | 0.83 | 4.8 | 1.5 | 8.58 | 10.91 | 1.38 | 1.22 | 1.22 |
| 8-175-07 | Compare | 7 | FF | 2.4 | 1.93 | 0.91 | 6.3 | 1.89 | 10.28 | 13.07 | 1.69 | 1.54 | 1.38 |
| 8-175-11 | Compare | 11 | GG | 2.91 | 2.44 | 0.98 | 7.72 | 2.2 | 12.87 | 16.14 | 2.4 | 2.24 | 1.85 |
| 8-175-15 | Compare | 15 | HH | 3.82 | 2.56 | 1.3 | 8.7 | 2.52 | 14.65 | 18.54 | 2.83 | 2.44 | 2.2 |
| 8-175-22 | Compare | 22 | JJ | 4.84 | 2.8 | 2.01 | 10.91 | 2.99 | 18.46 | 23.58 | 3.39 | 3.19 | 2.68 |
| 8-175-30 | Compare | 30 | KK | 4.84 | 3.43 | 2.01 | 13.9 | 3.66 | 19.8 | 25.63 | 3.5 | 3.27 | 2.99 |
