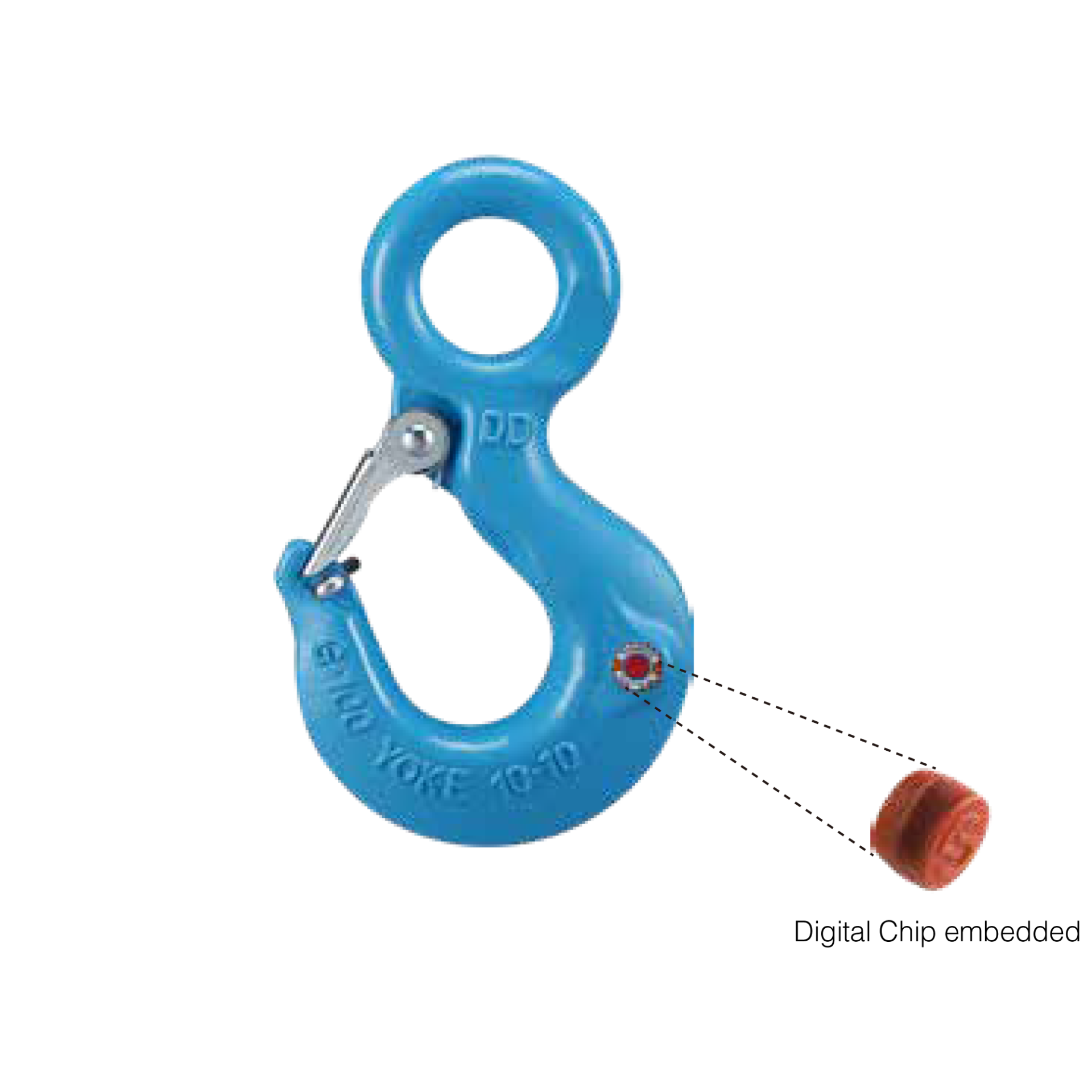

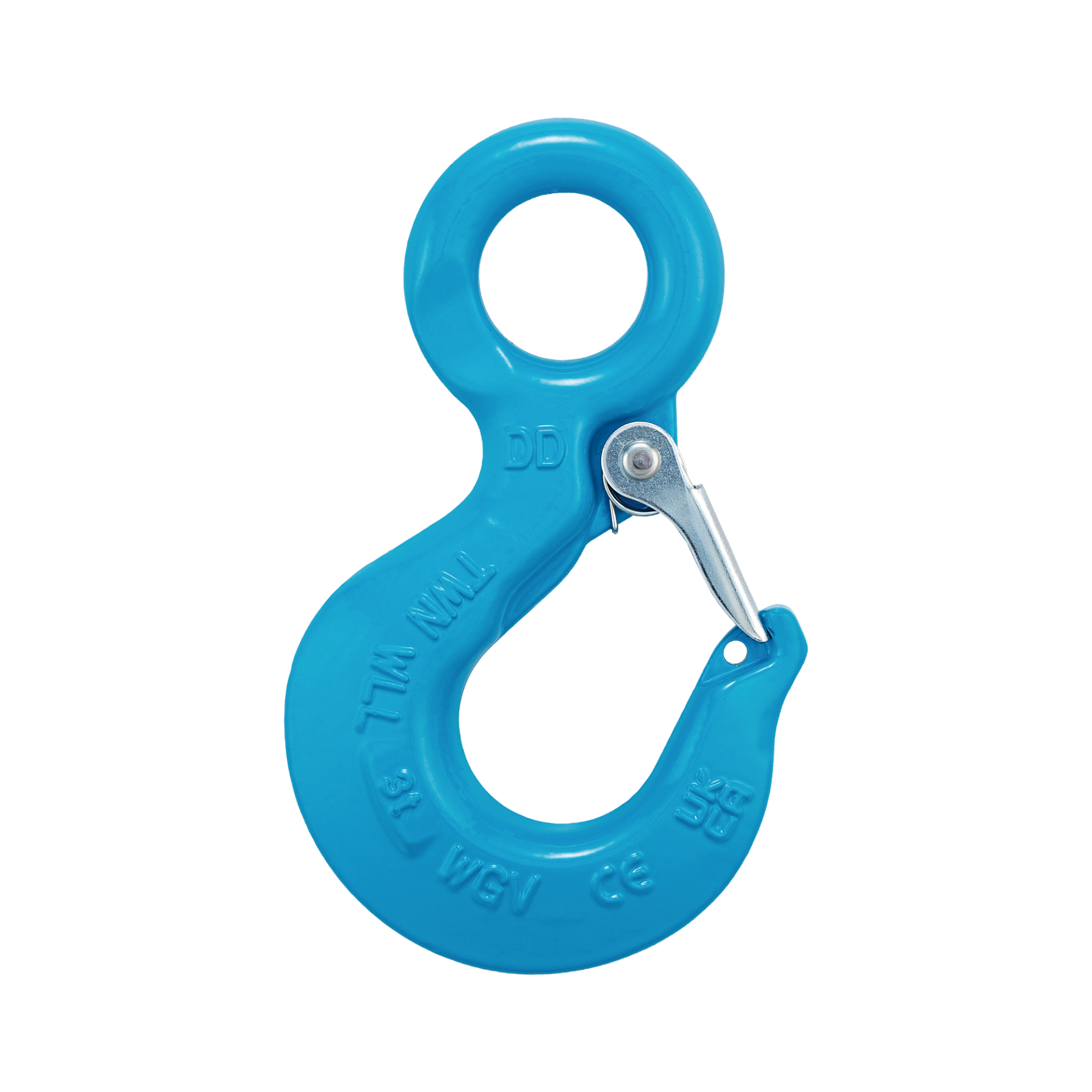

Hoist Hook 8-173
Item No.8-173
• Quenched and Tempered Alloy Steel.
• Proof Load tested at 2 times of 5:1 WLL with
certification for each batch manufactured.
• Fatigue rated to 20,000 cycles at 1.5 times of 5:1
WLL.
• Magnaflux crack detection is performed 100% on
each batch.
• YOKE Eye Hoist Hooks are Predrilled to accept a
YOKE latch kits.
• Proof Load tested at 2 times of 5:1 WLL with
certification for each batch manufactured.
• Fatigue rated to 20,000 cycles at 1.5 times of 5:1
WLL.
• Magnaflux crack detection is performed 100% on
each batch.
• YOKE Eye Hoist Hooks are Predrilled to accept a
YOKE latch kits.

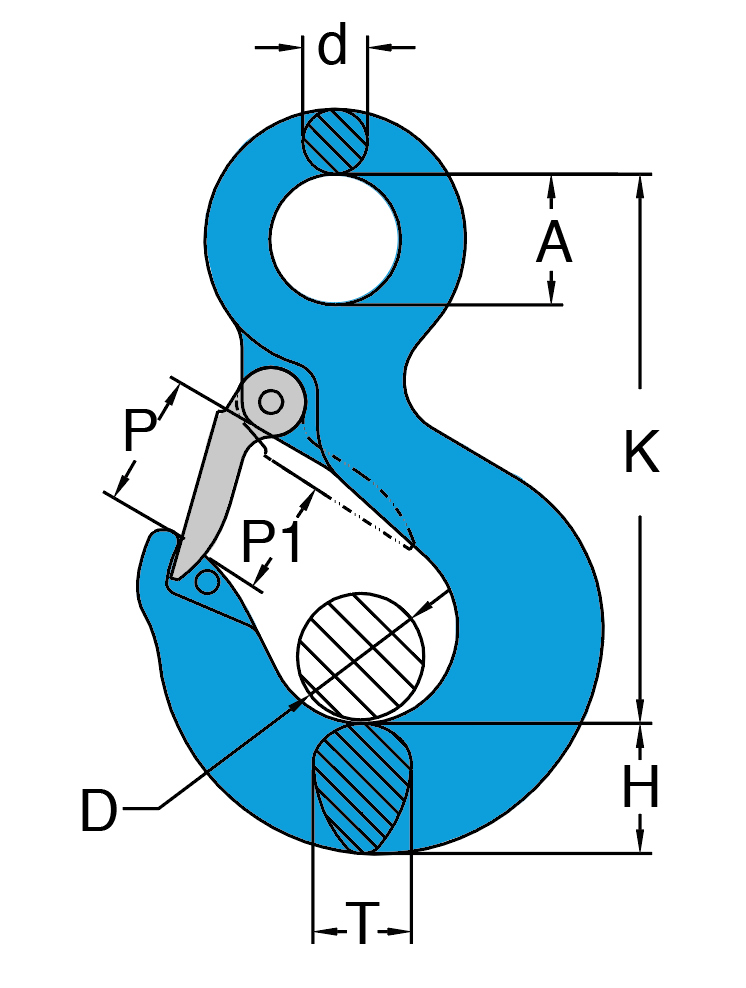

| Item NO. | Compare | Working Load Limit | Hook Feature Code | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | D | d | H | K | P | P1 | T | |||
| 8-173-01 | Compare | 1 | AA | 23 | 22 | 10 | 19 | 83 | 26 | 22 | 15 |
| 8-173-015 | Compare | 1.5 | BB | 23 | 19 | 11 | 21 | 95 | 26 | 19 | 17 |
| 8-173-02 | Compare | 2 | CC | 29 | 20 | 13 | 26 | 106 | 28 | 20 | 21 |
| 8-173-03 | Compare | 3 | DD | 32 | 25 | 15 | 29 | 122 | 31 | 25 | 24 |
| 8-173-05 | Compare | 5 | EE | 40 | 31 | 18 | 37 | 149 | 37 | 31 | 31 |
| 8-173-07 | Compare | 7 | FF | 51 | 39 | 24 | 47 | 192 | 46 | 39 | 37 |
| 8-173-11 | Compare | 11 | GG | 62 | 57 | 28 | 58 | 232 | 61 | 57 | 48 |
| 8-173-15 | Compare | 15 | HH | 72 | 62 | 32 | 66 | 256 | 68 | 62 | 56 |
| 8-173-22 | Compare | 22 | JJ | 90 | 81 | 40 | 76 | 318 | 92 | 81 | 68 |
| 8-173-30 | Compare | 30 | KK | 90 | 83 | 45 | 93 | 357 | 89 | 83 | 76 |
| Item NO. | Compare | Working Load Limit | Hook Feature Code | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | D | d | H | K | P | P1 | T | |||
| 8-173-01 | Compare | 1 | AA | 0.91 | 0.87 | 0.39 | 0.75 | 3.27 | 1.02 | 0.87 | 0.59 |
| 8-173-015 | Compare | 1.5 | BB | 0.91 | 0.75 | 0.43 | 0.83 | 3.74 | 1.02 | 0.75 | 0.67 |
| 8-173-02 | Compare | 2 | CC | 1.14 | 0.79 | 0.51 | 1.02 | 4.17 | 1.1 | 0.79 | 0.83 |
| 8-173-03 | Compare | 3 | DD | 1.26 | 0.98 | 0.59 | 1.14 | 4.8 | 1.22 | 0.98 | 0.94 |
| 8-173-05 | Compare | 5 | EE | 1.57 | 1.22 | 0.71 | 1.46 | 5.87 | 1.46 | 1.22 | 1.22 |
| 8-173-07 | Compare | 7 | FF | 2.01 | 1.54 | 0.94 | 1.85 | 7.56 | 1.81 | 1.54 | 1.46 |
| 8-173-11 | Compare | 11 | GG | 2.44 | 2.24 | 1.1 | 2.28 | 9.13 | 2.4 | 2.24 | 1.89 |
| 8-173-15 | Compare | 15 | HH | 2.83 | 2.44 | 1.26 | 2.6 | 10.08 | 2.68 | 2.44 | 2.2 |
| 8-173-22 | Compare | 22 | JJ | 3.54 | 3.19 | 1.57 | 2.99 | 12.52 | 3.62 | 3.19 | 2.68 |
| 8-173-30 | Compare | 30 | KK | 3.54 | 3.27 | 1.77 | 3.66 | 14.06 | 3.5 | 3.27 | 2.99 |
