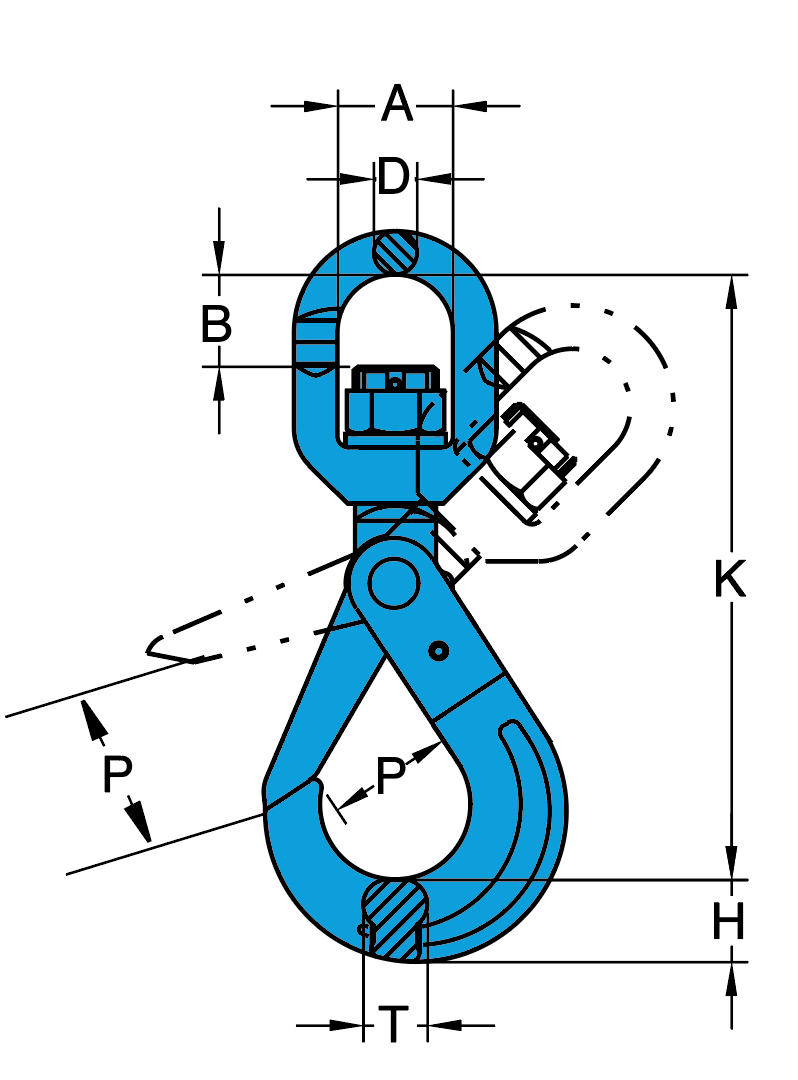

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | D | H | K | P | T | ||
| X-027-06 | Compare | 1.4 | - | 32 | 12 | 19 | 149 | 28 | 15 |
| X-027-07 | Compare | 2.5 | 6 | 36 | 13 | 24 | 186 | 34 | 20 |
| X-027-10 | Compare | 4 | 7,8 | 41 | 16 | 30 | 218 | 44 | 26 |
| X-027-13 | Compare | 6.7 | 10 | 46 | 21 | 39 | 276 | 51 | 30 |
| X-027-16 | Compare | 10 | 13 | 61 | 23 | 49 | 329 | 60 | 36 |
| X-027-20 | Compare | 16 | 16 | 74 | 25 | 65 | 403 | 70 | 48 |
| X-027-22 | Compare | 19 | 20 | 97 | 33 | 63 | 454 | 80 | 49 |
| X-027-26 | Compare | 26.5 | 22 | 123 | 51 | 69 | 535 | 99 | 56 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| lbs | mm | inch | A | D | H | K | P | T | ||
| X-027-06 | Compare | 3200 | 26 | 7/32 | 1.26 | 0.47 | 0.75 | 5.87 | 1.1 | 0.59 |
| X-027-07 | Compare | 5700 | - | 1/4-5/16 | 1.42 | 0.51 | 0.94 | 7.32 | 1.34 | 0.79 |
| X-027-10 | Compare | 8800 | - | 45724 | 1.61 | 0.63 | 1.18 | 8.58 | 1.73 | 1.02 |
| X-027-13 | Compare | 15000 | - | 45659 | 1.81 | 0.83 | 1.54 | 10.87 | 2.01 | 1.18 |
| X-027-16 | Compare | 22600 | - | 45785 | 2.4 | 0.91 | 1.93 | 12.95 | 2.36 | 1.42 |
| X-027-20 | Compare | 35300 | - | 45720 | 2.91 | 0.98 | 2.56 | 15.87 | 2.76 | 1.89 |
| X-027-22 | Compare | 42700 | - | 45846 | 3.82 | 1.3 | 2.48 | 17.87 | 3.15 | 1.93 |
| X-027-26 | Compare | 59700 | - | 1 | 4.84 | 2.01 | 2.72 | 21.06 | 3.9 | 2.2 |
