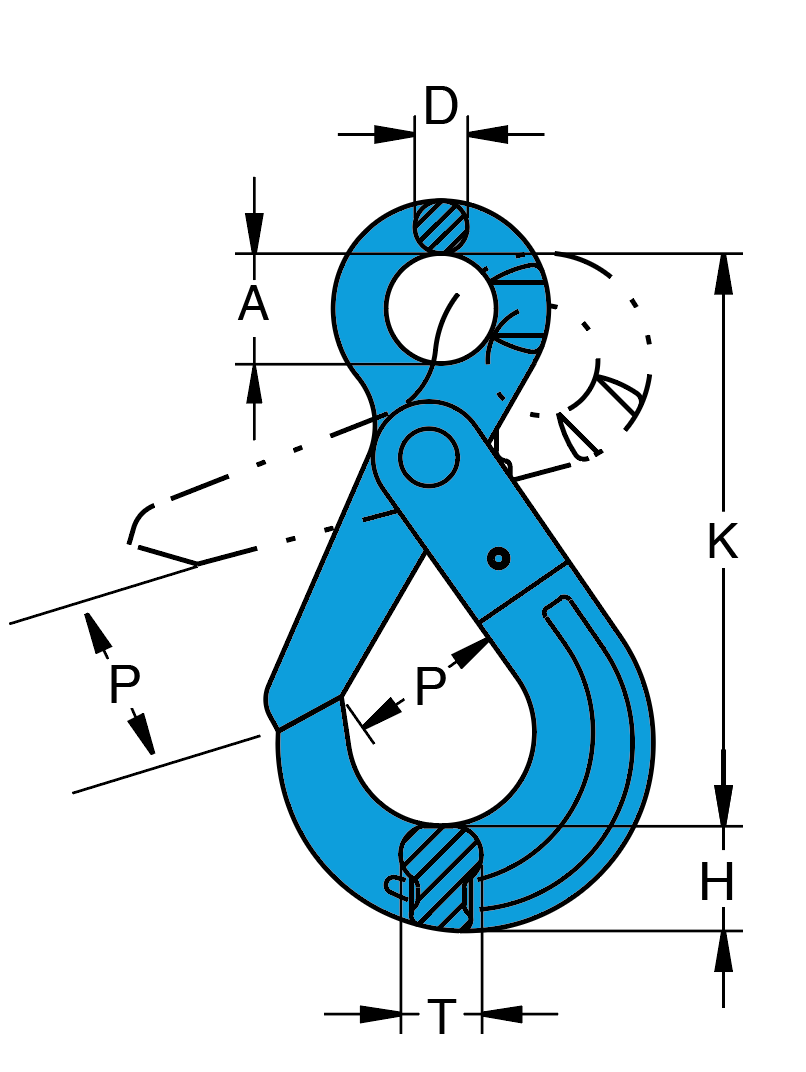

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | D | H | K | P | T | ||
| X-025-06 | Compare | 1.4 | 6 | 21 | 10 | 19 | 110 | 28 | 15 |
| X-025-07 | Compare | 2.5 | 7.8 | 25 | 11 | 24 | 136 | 34 | 20 |
| X-025-10 | Compare | 4 | 10 | 32 | 13 | 30 | 167 | 44 | 26 |
| X-025-13 | Compare | 6.7 | 13 | 40 | 16 | 39 | 207 | 51 | 30 |
| X-025-16 | Compare | 10 | 16 | 50 | 21 | 49 | 252 | 60 | 36 |
| X-025-20 | Compare | 16 | 20 | 60 | 23 | 65 | 293 | 70 | 48 |
| X-025-22 | Compare | 19 | 22 | 70 | 24 | 63 | 319 | 80 | 49 |
| X-025-26 | Compare | 26.5 | 26 | 80 | 25 | 69 | 343 | 99 | 56 |
| X-025-28 | Compare | 31.25 | 28 | 92 | 28 | 81 | 405 | 123 | 63 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | inch | A | D | H | K | P | T | ||
| X-025-06 | Compare | 3200 | 7/32 | 0.83 | 0.39 | 0.75 | 4.33 | 1.1 | 0.59 |
| X-025-07 | Compare | 5700 | 1/4 - 5/16 | 0.98 | 0.43 | 0.94 | 5.35 | 1.34 | 0.79 |
| X-025-10 | Compare | 8800 | 45724 | 1.26 | 0.51 | 1.18 | 6.57 | 1.73 | 1.02 |
| X-025-13 | Compare | 15000 | 45659 | 1.57 | 0.63 | 1.54 | 8.15 | 2.01 | 1.18 |
| X-025-16 | Compare | 22600 | 45785 | 1.97 | 0.83 | 1.93 | 9.92 | 2.36 | 1.42 |
| X-025-20 | Compare | 35300 | 45720 | 2.36 | 0.91 | 2.56 | 11.54 | 2.76 | 1.89 |
| X-025-22 | Compare | 42700 | 45846 | 2.76 | 0.94 | 2.48 | 12.56 | 3.15 | 1.93 |
| X-025-26 | Compare | 59700 | 1 | 3.15 | 0.98 | 2.72 | 13.5 | 3.9 | 2.2 |
| X-025-28 | Compare | 72300 | 1-1/8 | 3.62 | 1.1 | 3.19 | 15.94 | 4.84 | 2.48 |
