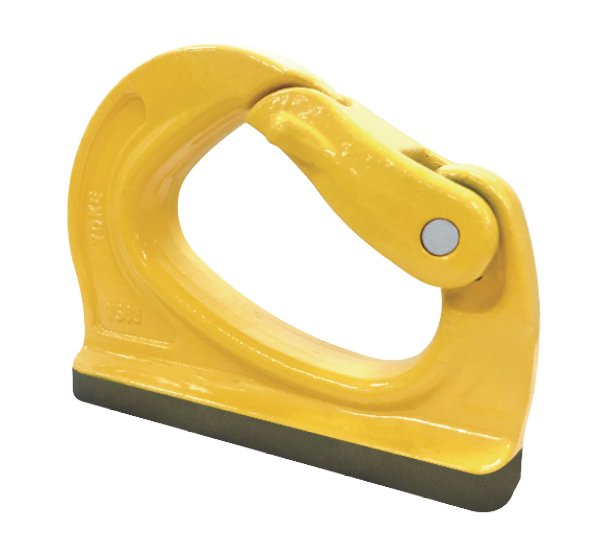

• Manufactured from forged alloy steel, quenched and tempered.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• WLL forged onto each product for quick and easy identification.
• Lugs designed to assist the welding process.

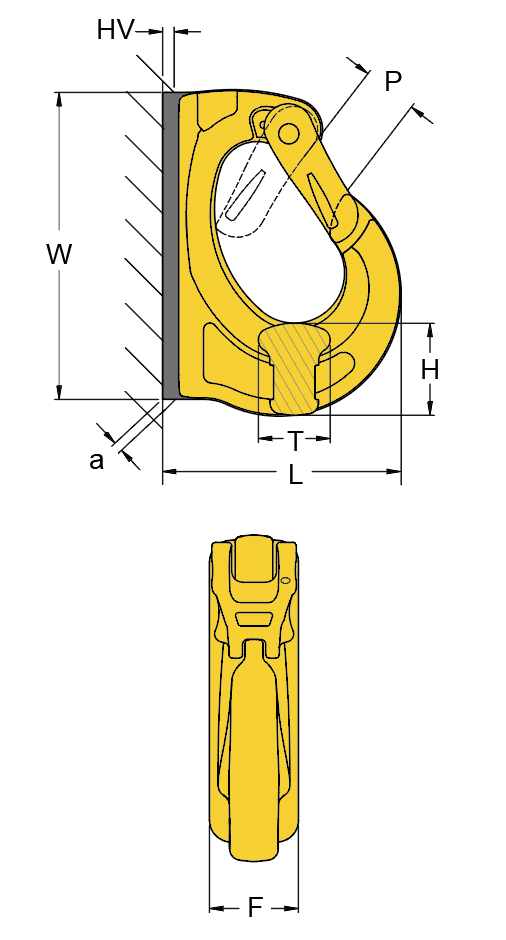

| Item NO. | Compare | Working Load Limit | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | a | F | H | HV | L | P | T | W | ||
| 8-083-0075 | Compare | 0.75 | 3 | 19 | 20 | 5 | 56 | 18 | 13 | 82 |
| 8-083-01 | Compare | 1 | 4 | 25 | 27 | 6 | 72 | 20 | 17 | 95 |
| 8-083-02 | Compare | 2 | 5 | 30 | 30 | 8 | 86 | 27 | 20 | 114 |
| 8-083-03 | Compare | 3 | 6 | 35 | 32 | 10 | 105 | 29 | 23 | 132 |
| 8-083-04 | Compare | 4 | 7 | 42 | 38 | 11 | 112 | 30 | 29 | 140 |
| 8-083-05 | Compare | 5 | 8 | 45 | 47 | 12 | 131 | 32 | 30 | 165 |
| 8-083-08 | Compare | 8 | 9 | 50 | 51 | 13 | 133 | 34 | 40 | 172 |
| 8-083-10 | Compare | 10 | 10 | 55 | 57 | 14 | 170 | 51 | 43 | 220 |
| 8-083-15 | Compare | 15 | 12 | 60 | 67 | 15 | 191 | 53 | 50 | 240 |
| Item NO. | Compare | Working Load Limit | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| lbs | a | F | H | HV | L | P | T | W | ||
| 8-083-0075 | Compare | 1600 | 0.12 | 0.75 | 0.79 | 0.2 | 2.2 | 0.71 | 0.51 | 3.23 |
| 8-083-01 | Compare | 2200 | 0.16 | 0.98 | 1.06 | 0.24 | 2.83 | 0.79 | 0.67 | 3.74 |
| 8-083-02 | Compare | 4400 | 0.2 | 1.18 | 1.18 | 0.31 | 3.39 | 1.06 | 0.79 | 4.49 |
| 8-083-03 | Compare | 6600 | 0.24 | 1.38 | 1.26 | 0.39 | 4.13 | 1.15 | 0.91 | 5.2 |
| 8-083-04 | Compare | 8800 | 0.28 | 1.65 | 1.5 | 0.43 | 4.41 | 1.18 | 1.14 | 5.51 |
| 8-083-05 | Compare | 11000 | 0.31 | 1.77 | 1.85 | 0.47 | 5.16 | 1.26 | 1.18 | 6.5 |
| 8-083-08 | Compare | 17600 | 0.35 | 1.97 | 2.01 | 0.51 | 5.24 | 1.34 | 1.57 | 6.77 |
| 8-083-10 | Compare | 22000 | 0.39 | 2.17 | 2.24 | 0.55 | 6.69 | 2.01 | 1.69 | 8.66 |
| 8-083-15 | Compare | 33000 | 0.47 | 2.36 | 2.64 | 0.59 | 7.52 | 2.09 | 1.97 | 9.45 |
