DA Swivel Point DA-271 and DA-272
Item No.DA-271 and DA-272

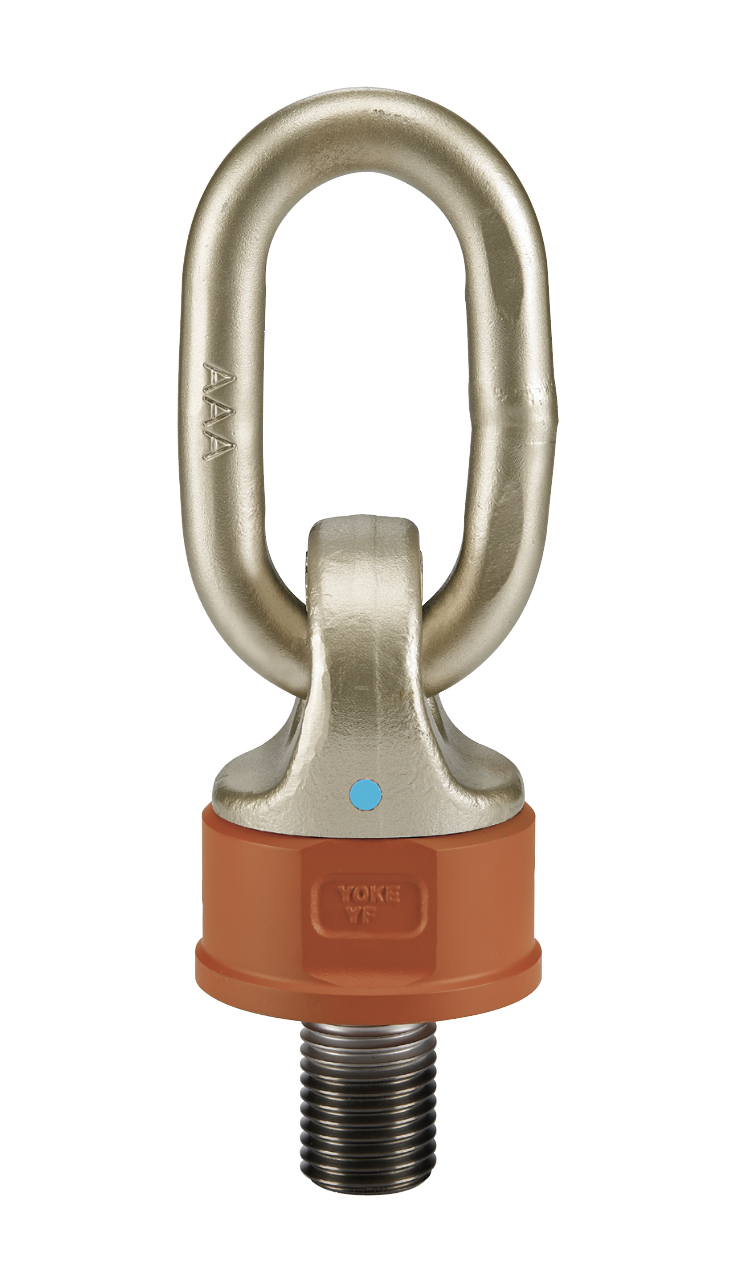

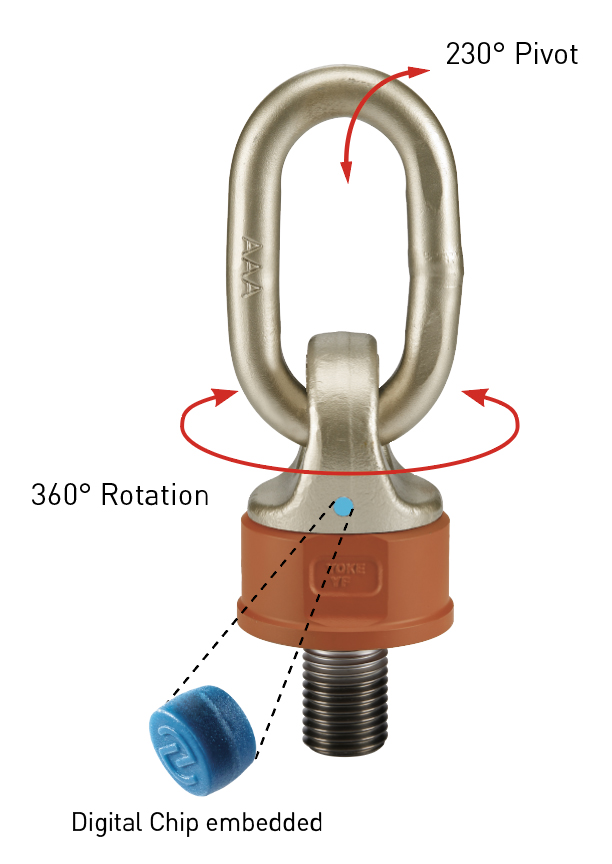

• Pivots to 230°, rotates through 360° due to its
unique ball bearing design.
• Manufactured from forged alloy steel,
quenched, and tempered.
• Tested in accordance with DNV–ST-0378, EN
1677-1 and EN 1677-4.
• Certified by DNV-ST-0378.
• Individual forged parts and traceability code
links to Test Certificate and quality traceability.
• Bolts are Metric thread.
• Design factor 4:1
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• Magnaflux crack detection is performed 100%
on each batch.
• All YOKE Lifting points meet or exceed all the
requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged
hexagon shaped body of the DA Swivel Point.
• Capable of rotating under load. Do not turn
continuously in 90-degree direction at full load.
unique ball bearing design.
• Manufactured from forged alloy steel,
quenched, and tempered.
• Tested in accordance with DNV–ST-0378, EN
1677-1 and EN 1677-4.
• Certified by DNV-ST-0378.
• Individual forged parts and traceability code
links to Test Certificate and quality traceability.
• Bolts are Metric thread.
• Design factor 4:1
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• Magnaflux crack detection is performed 100%
on each batch.
• All YOKE Lifting points meet or exceed all the
requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged
hexagon shaped body of the DA Swivel Point.
• Capable of rotating under load. Do not turn
continuously in 90-degree direction at full load.
» United States Patent: 10607128
» UK Patent: 3627396
» German Patent: 602018032891.2
» Italy Patent: 3627396
» Japan Patent: 3219858

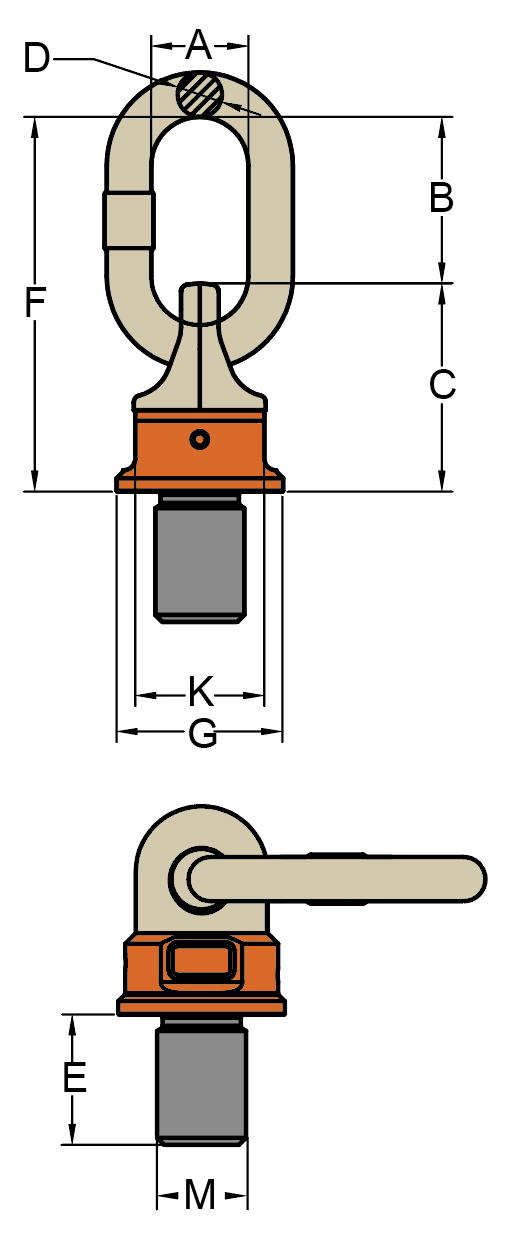

| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | C | D | F | G | K | Nm | ||
| DA-271-003 | Compare | 0.4 | M8 | 12 | 1.25 | 29 | 40 | 8 | 72 | 35 | 30 | 10 |
| DA-271-004 | Compare | 0.6 | M 10 | 15 | 1.5 | 29 | 40 | 8 | 72 | 35 | 30 | 10 |
| DA-271-006 | Compare | 0.7 | M 12 | 18 | 1.75 | 35 | 45 | 10 | 95 | 40 | 36 | 10 |
| DA-271-013 | Compare | 1.5 | M 16 | 24 | 2 | 36 | 54 | 13 | 104 | 46 | 41 | 30 |
| DA-271-020 | Compare | 2.5 | M 20 | 30 | 2.5 | 36 | 68 | 13 | 122 | 62 | 55 | 70 |
| DA-271-035 | Compare | 4 | M 24 | 36 | 3 | 41 | 88 | 19 | 154 | 78 | 70 | 150 |
| DA-271-060 | Compare | 6 | M 30 | 45 | 3.5 | 50 | 120 | 22 | 206 | 90 | 80 | 350 |
| DA-271-080 | Compare | 10 | M 36 | 54 | 4 | 50 | 120 | 22 | 206 | 90 | 80 | 410 |
| DA-271-120 | Compare | 13 | M 42 | 63 | 4.5 | 67 | 122 | 25 | 235 | 98 | 84 | 550 |
| DA-271-130 | Compare | 14 | M 48 | 72 | 5 | 67 | 122 | 25 | 235 | 98 | 84 | 550 |
| DA-271-140 | Compare | 20 | M 52 | 78 | 5 | 72 | 150 | 32 | 270 | 120 | 94 | 750 |
| DA-271-160 | Compare | 20 | M 56 | 84 | 5.5 | 72 | 150 | 32 | 270 | 120 | 94 | 800 |
| DA-271-161 | Compare | 20 | M 64 | 96 | 6 | 72 | 150 | 32 | 270 | 120 | 94 | 800 |
| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | M | E | TPI | A | C | D | F | G | K | ft.lbs | ||
| DA-272-006 | Compare | 1550 | 45659 | 0.75 | 13UNC | - | 1.77 | 0.39 | 3.74 | 1.57 | 1.42 | 7 |
| DA-272-013 | Compare | 3300 | 45785 | 0.94 | 11UNC | 1.42 | 2.13 | 0.51 | 4.09 | 1.81 | 1.61 | 20 |
| DA-272-018 | Compare | 4400 | 45720 | 1.13 | 10UNC | 1.42 | 2.68 | 0.51 | 4.09 | 1.81 | 1.61 | 20 |
| DA-272-020 | Compare | 5500 | 45846 | 1.31 | 9UNC | 1.42 | 2.68 | 0.51 | 4.8 | 2.44 | 2.17 | 50 |
| DA-272-035 | Compare | 8800 | 1 | 1.5 | 8UNC | 1.61 | 3.46 | 0.75 | 6.06 | 3.07 | 2.76 | 110 |
| DA-272-060 | Compare | 13200 | 1 1/4 | 1.88 | 7UNC | 1.97 | 4.72 | 0.87 | 8.11 | 3.54 | 3.15 | 250 |
| DA-272-080 | Compare | 22000 | 1 1/2 | 2.25 | 6UNC | 1.97 | 4.72 | 0.87 | 8.11 | 3.54 | 3.15 | 300 |
| DA-272-120 | Compare | 28600 | 1 3/4 | 2.63 | 5UNC | 2.64 | 4.8 | 0.98 | 9.25 | 3.86 | 3.31 | 400 |
| DA-272-130 | Compare | 30800 | 2 | 3 | 4.5UNC | 2.64 | 4.8 | 0.98 | 9.25 | 3.86 | 3.31 | 400 |
| DA-272-140 | Compare | 44000 | 2 1/4 | 3.38 | 4.5UNC | 2.83 | 5.91 | 1.26 | 10.63 | 4.72 | 3.7 | 550 |
| DA-272-160 | Compare | 44000 | 2 1/2 | 3.75 | 4UNC | 2.83 | 5.91 | 1.26 | 10.63 | 4.72 | 3.7 | 590 |
