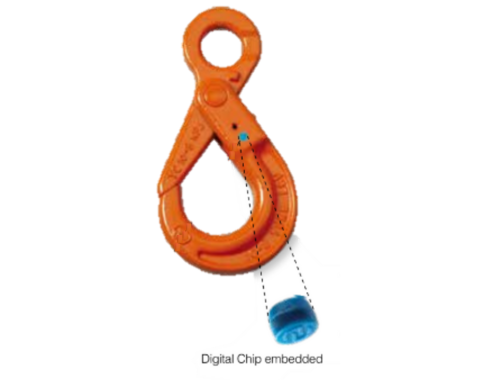

DA Eye Self Locking Hook DA-025
Item No.DA-025
● Forged alloy steel quenched and tempered.
● Tested and manufactured in accordance with DNV-ST-0378 and
EN 1677-3.
● Charpy tested in accordance with DNV-ST-0378.
● Certified by DNV-ST-0378.
● Design factor 4:1 and 5:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL at
Design factor 4:1).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load
Limit (WLL at Design factor 4:1).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -20°C (-4°F).
● Designed with recessed trigger, providing the locking
mechanism being protected against inadvertent opening due to
entanglement with any obstruction during lifting.
● Latch mechanism is self-locking under loading.
● Tested and manufactured in accordance with DNV-ST-0378 and
EN 1677-3.
● Charpy tested in accordance with DNV-ST-0378.
● Certified by DNV-ST-0378.
● Design factor 4:1 and 5:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL at
Design factor 4:1).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load
Limit (WLL at Design factor 4:1).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -20°C (-4°F).
● Designed with recessed trigger, providing the locking
mechanism being protected against inadvertent opening due to
entanglement with any obstruction during lifting.
● Latch mechanism is self-locking under loading.
| Item NO. | Compare | Working Load Limit | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes 5:1 | tonnes 4:1 | A | D | H | K | P | T | ||
| DA-025-13 | Compare | 5.3 | 6.7 | 40 | 16 | 16 | 207 | 52 | 52 |
| DA-025-16 | Compare | 8 | 10 | 50 | 21 | 21 | 252 | 60 | 60 |
| DA-025-20 | Compare | 12.8 | 16 | 61 | 23 | 23 | 293 | 70 | 70 |
| DA-025-22 | Compare | 15.2 | 19 | 70 | 24 | 24 | 319 | 80 | 80 |
| DA-025-26 | Compare | 21.2 | 26.5 | 80 | 25 | 25 | 343 | 99 | 99 |
| DA-025-32 | Compare | 25.2 | 31.5 | 90 | 28 | 28 | 401 | 120 | 120 |
| DA-027N-13W | Compare | 5.3 | 6.7 | 61 | 23 | 39 | 295 | 51 | 30 |
| Item NO. | Compare | Working Load Limit | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|
| lbs 5:1 | lbs 4:1 | A | D | H | K | P | T | ||
| DA-025-13 | Compare | 12000 | 15000 | 1.57 | 0.63 | 1.54 | 8.15 | 2.05 | 1.18 |
| DA-025-16 | Compare | 18080 | 22600 | 1.97 | 0.83 | 1.93 | 9.92 | 2.36 | 1.42 |
| DA-025-20 | Compare | 28240 | 35300 | 2.4 | 0.91 | 2.56 | 11.54 | 2.76 | 1.89 |
| DA-025-22 | Compare | 34160 | 42700 | 2.76 | 0.94 | 2.48 | 12.56 | 3.15 | 1.93 |
| DA-025-26 | Compare | 47760 | 59700 | 3.15 | 0.98 | 2.72 | 13.5 | 3.9 | 2.2 |
| DA-025-32 | Compare | 57840 | 72300 | 3.54 | 1.1 | 3.19 | 15.79 | 4.72 | 2.48 |
