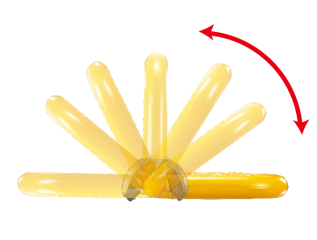

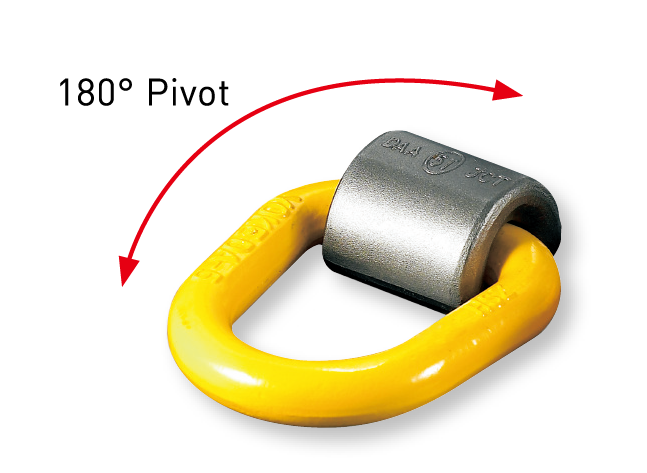

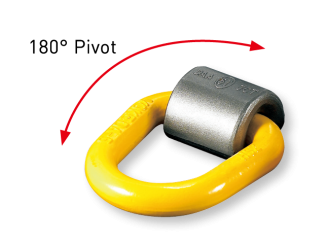

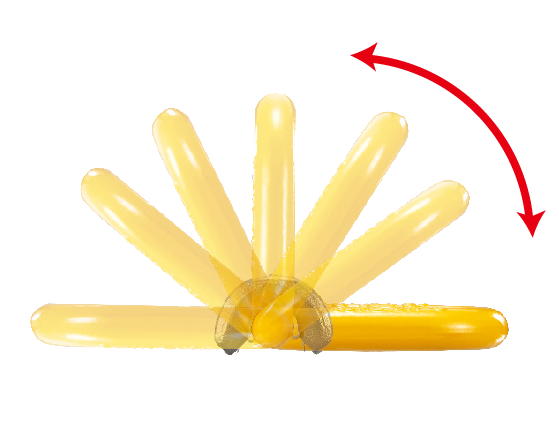

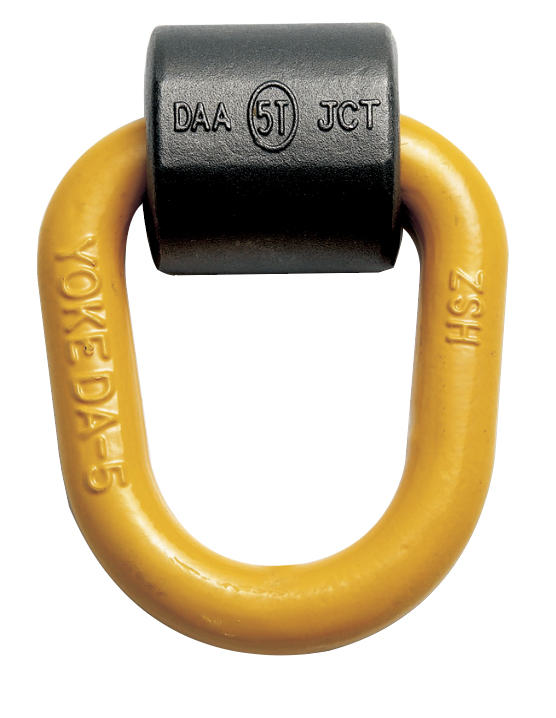

• Pivots through 180°.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN 1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• Proof tested to 2.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• WLL forged onto each product for quick and easy identification.
• Lugs designed to assist the welding process.
• Never apply load except in the same direction with the pivot direction.

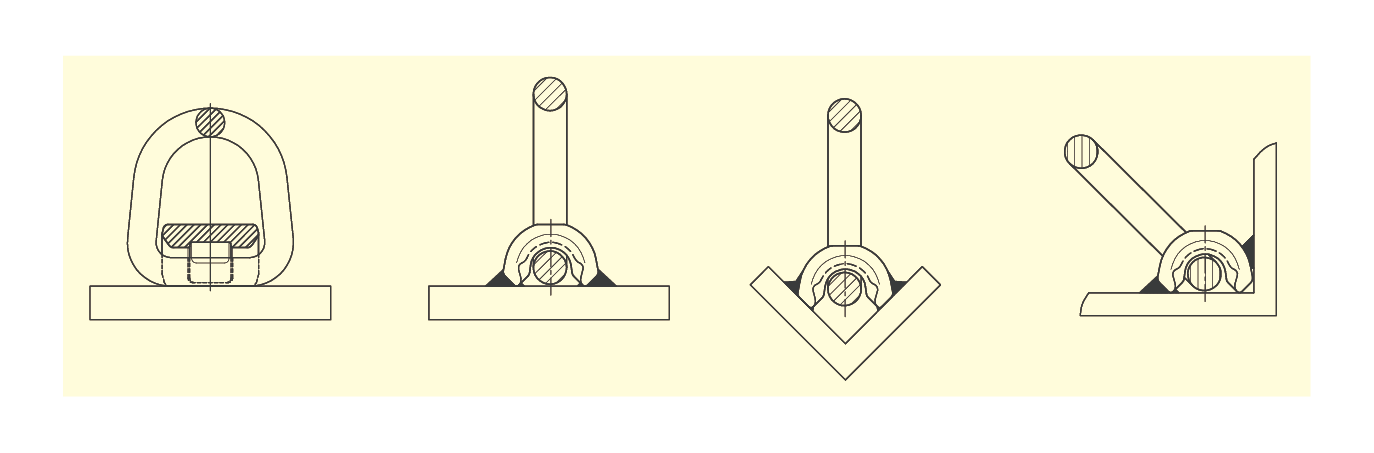

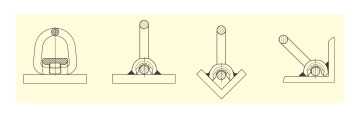

8-0573-01/8-0573-03/8-0573-05 →O type
8-0573-10/8-0573-20/8-0573-30 →I type

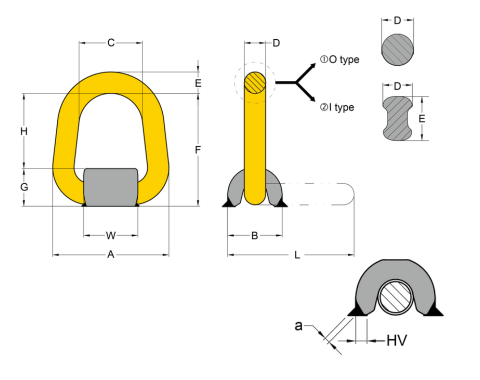

| Item NO. | Compare | Working Load Limit | Dimensions | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | a | C | D | E | F | G | H | HV | L | W | kg | ||
| 8-0573-30 | Compare | 30.0** | 254 | 4 | 150 | 35 | 45 | 241 | 84 | 157 | 20 | 317 | 127 | 17.2 |
| 8-0573-20 | Compare | 20.0** | 186 | 4 | 100 | 25 | 37 | 175 | 70 | 105 | 20 | 234 | 91 | 6.5 |
| 8-0573-10 | Compare | 10 | 146 | 4 | 82 | 20 | 30 | 139 | 47 | 92 | 10 | 189 | 70 | 2.8 |
| 8-0573-08 | Compare | 8 | 121 | 4 | 68 | 26 | 26 | 120 | 47 | 73 | 10 | 166 | 55 | 2.4 |
| 8-0573-03 | Compare | 3 | 98 | 3 | 58 | 17 | 17 | 84 | 31 | 53 | 6 | 114 | 54 | 0.9 |
| 8-0573-05 | Compare | 5 | 120 | 3 | 66 | 22 | 22 | 117 | 39 | 78 | 7 | 154 | 56 | 1.3 |
| 8-0573-01 | Compare | 1 | 83 | 3 | 48 | 14 | 14 | 84 | 25 | 59 | 5 | 108 | 46 | 0.5 |
| Item NO. | Compare | Working Load Limit | Dimensions | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | A | a | C | D | E | F | G | H | HV | L | W | lbs | ||
| 8-0573-30 | Compare | 66000** | 10.00 | 0.16 | 5.91 | 1.38 | 1.77 | 9.49 | 3.31 | 6.18 | 0.79 | 12.48 | 5 | 37.9 |
| 8-0573-20 | Compare | 44000** | 7.32 | 0.16 | 3.94 | 0.98 | 1.46 | 6.89 | 2.76 | 4.13 | 0.79 | 9.21 | 3.58 | 14.3 |
| 8-0573-10 | Compare | 22000 | 5.75 | 0.16 | 3.23 | 0.79 | 1.18 | 5.47 | 1.85 | 3.62 | 0.39 | 7.44 | 2.76 | 6.2 |
| 8-0573-08 | Compare | 17600 | 4.76 | 0.16 | 2.68 | 1.02 | 1.02 | 4.72 | 1.85 | 2.87 | 0.39 | 6.54 | 2.17 | 5.3 |
| 8-0573-05 | Compare | 11000 | 4.72 | 0.12 | 2.60 | 0.87 | 0.87 | 4.61 | 1.54 | 3.07 | 0.28 | 6.06 | 2.2 | 2.9 |
| 8-0573-01 | Compare | 2200 | 3.27 | 0.12 | 1.89 | 0.55 | 0.55 | 3.31 | 0.98 | 2.32 | 0.20 | 4.25 | 1.81 | 1.1 |
| 8-0573-03 | Compare | 6600 | 3.86 | 0.12 | 2.28 | 0.67 | 0.67 | 3.31 | 1.22 | 2.09 | 0.24 | 4.49 | 2.13 | 2 |
