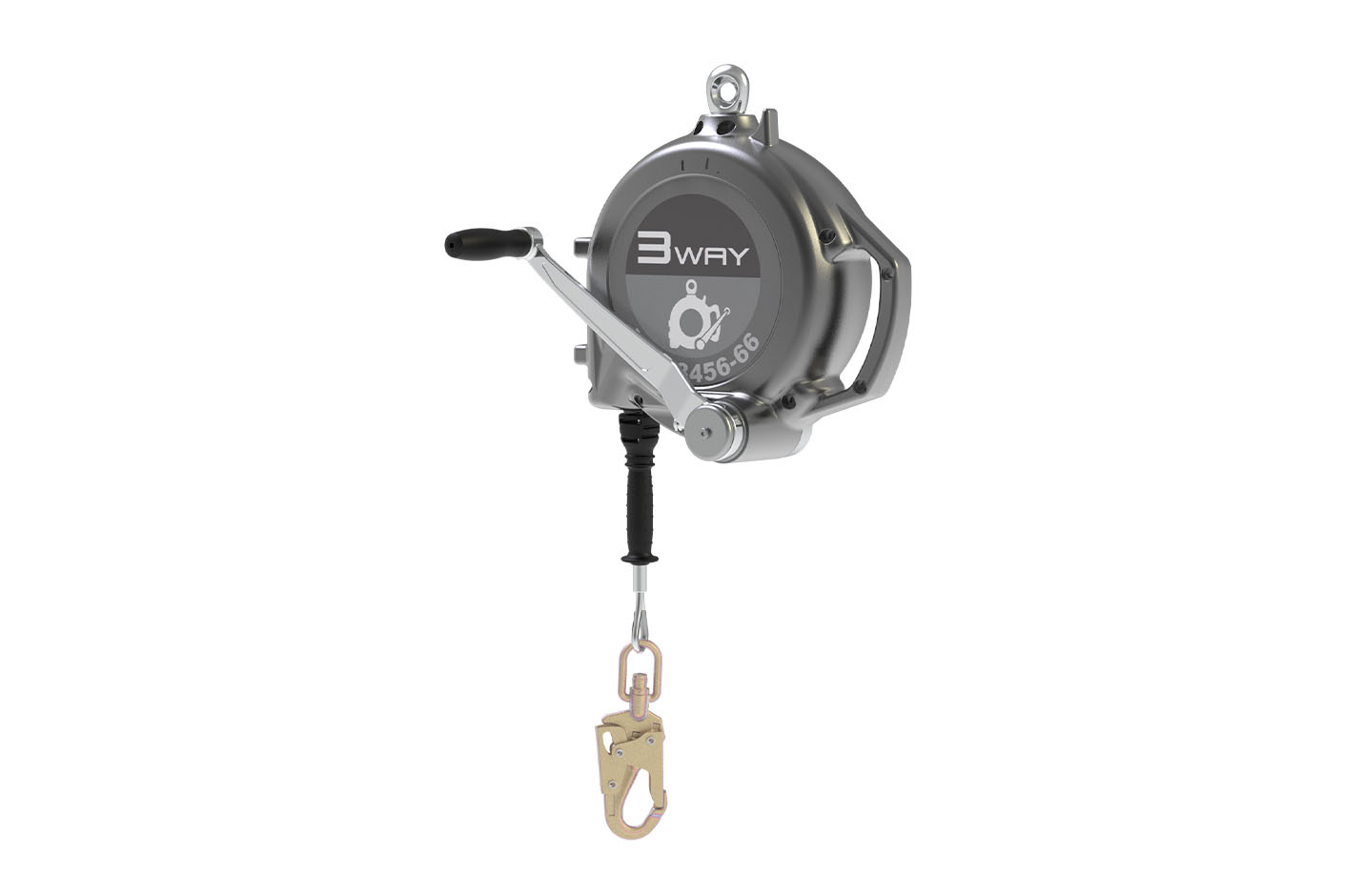

3-Way SRL-R
Item No.N-TR3465-66
Our tripod systems are designed to support safe entry and exit in confined spaces such as utility manholes, silos, wells, sewers, storage containers, pits, pipelines, and tunnels, ensuring you can work comfortably in restricted areas. These portable tripods can be set up by a single worker and are easy to transport. They are compatible with various winches and fall arrest devices and come equipped with features like locking legs, detent pin adjustments, quick-mount brackets, safety chains, and padded feet to minimize movement.
As a vital component of any rescue plan, the tripod system ensures the safe retrieval of an incapacitated worker, with customizable lifeline types and lengths to suit different needs.
As a vital component of any rescue plan, the tripod system ensures the safe retrieval of an incapacitated worker, with customizable lifeline types and lengths to suit different needs.
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ||||
| N-TR3465-66 | Compare | 16 | 20 | 420 | 333 | 163 | ✔ | ✔ | ✔ | Aluminum | 3/16” (4.8mm) Galvanized Steel |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ||||
| N-TR3465-66 | Compare | 35.3 | 66 | 16.5 | 13.1 | 6.4 | ✔ | ✔ | ✔ | Aluminum | 3/16” (4.8mm) Galvanized Steel |
