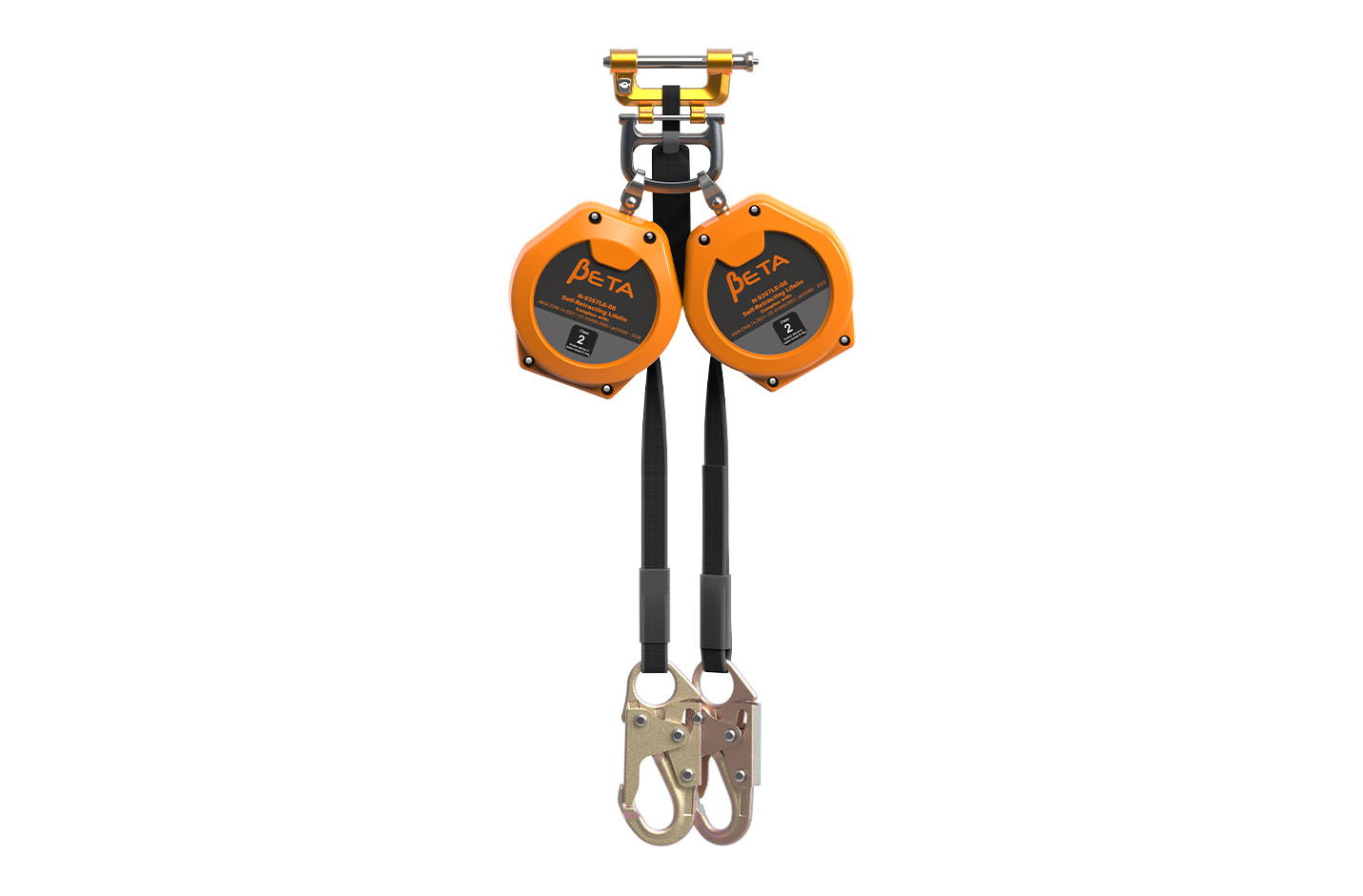

BETA-Twin Webbing Personal Fall Limiter(PFL)
Item No.N-9357LE-08UT
Equipped with a movable, patent-pending BRACKET design, the BETA series is easy to install and offers convenient mobility. Despite its lightweight design, it meets ANSI CLASS 2 standards and is embedded with a Digital Chip for added functionality.
Class 2
| Complies with | ANSI Z359.14-2021 CE EN360-2023 CSA 2259.2.2-17 |
| Housing | Polycarbonate |
| Webbing | 3/4” (24.5mm) UHMWPE |
| Max Arresting Distance(ANSI) | 42 inches |
| Avg Arresting Force(ANSI) | 1,350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arresting Force (EN) | 6 kN |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | EN | EN | ||||
| N-9357LE-08UT | Compare | 3.7 | 2.4 | 800 | 132 | 76 | ✔ | ✔ | ✔ | Polycarbonate | 3/4” (24.5mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9357LE-08UT | Compare | 8.2 | 8 | 31.5 | 5.2 | 3 | ✔ | ✔ | ✔ | Polycarbonate | 3/4” (24.5mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
