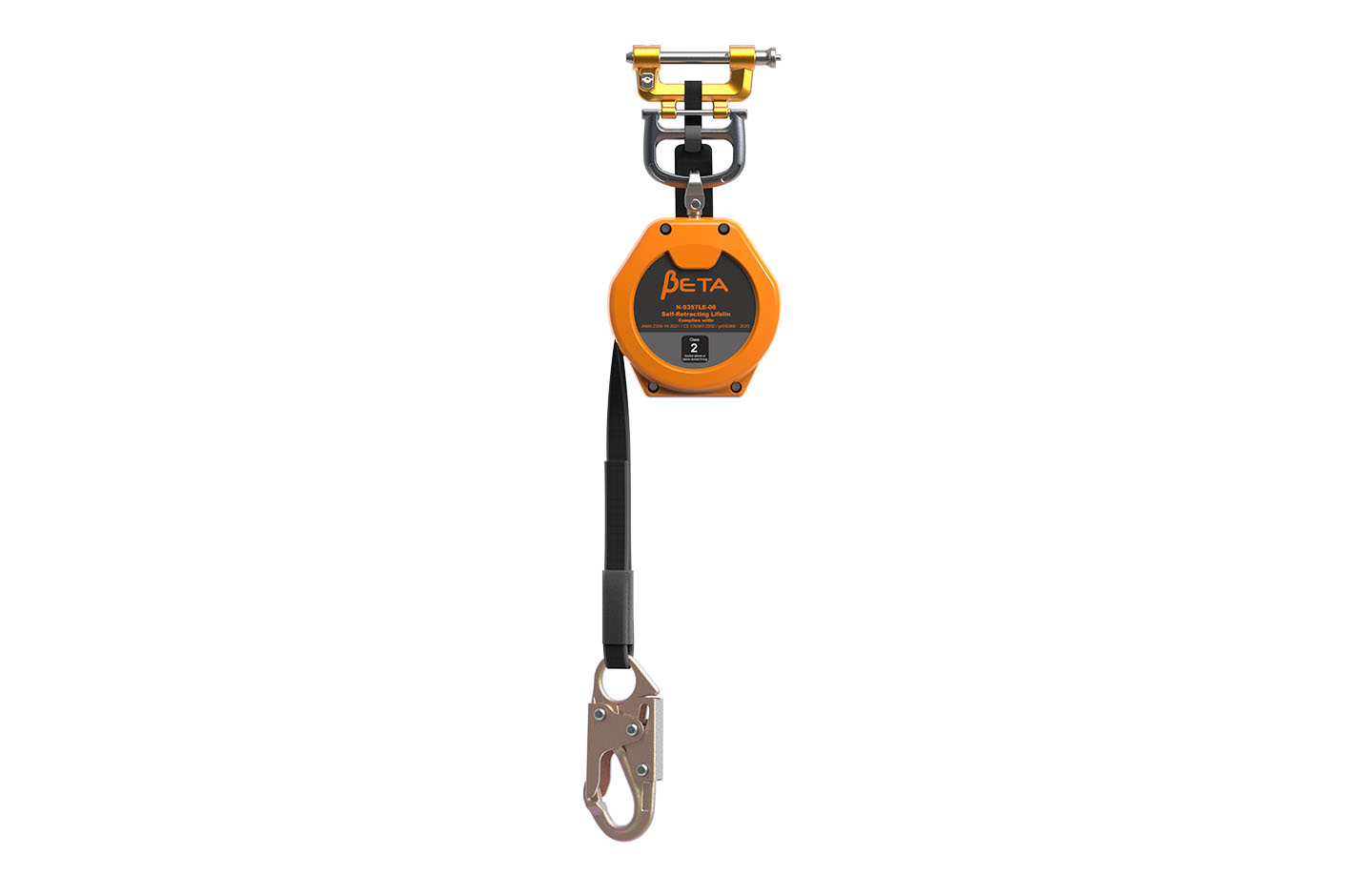

BETA-Webbing Personal Fall LimiterExternal Shock Absorbing System

Item No.N-9357LE-08U

Equipped with a movable, patent-pending BRACKET design, the BETA series is easy to install and offers convenient mobility. Despite its lightweight design, it meets ANSI CLASS 2 standards and is embedded with a Digital Chip for added functionality.

Compare Datasheet

Class 2

**Specifications**
Complies with	ANSI Z359.14-2021 CE EN360-2023 CSA 2259.2.2-17
Housing	Polycarbonate
Webbing	3/4” (24.5mm) UHMWPE
Max Arresting Distance(ANSI)	42 inches
Avg Arresting Force(ANSI)	1,350 lbs
Max Arrest Distance (EN)	1.4 m
Max Arresting Force (EN)	6 kN
Capacity(ANSI)	310 lbs
Capacity(OSHA)	420 lbs
Capacity(EN)	140 kgs

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Working Length	Dimension(A)	Dimension(B)	Dimension(C)	Meets			Housing	Webbing	Capacity			Max Arresting Distance	Max Arresting Force
		kg	M	mm	mm	mm	ANSI Z359.14-2021	CSA Z259.2.2-17	EN360-2023			ANSI	OSHA	EN	EN	EN
N-9357LE-08U	Compare	2	2.4	800	132	76	✔	✔	✔	Polycarbonate	3/4” (24.5mm) UHMWPE	310 lbs	420 lbs	140 kgs	1.4 m	6 kN

Item NO.	Compare	Net Weight	Working Length	Dimension(A)	Dimension(B)	Dimension(C)	Meets			Housing	Webbing	Capacity			Max Arresting Distance	Max Arresting Force
		lbs	ft	Inches	Inches	Inches	ANSI Z359.14-2021	CSA Z259.2.2-17	EN360-2023			ANSI	OSHA	EN	ANSI	ANSI
N-9357LE-08U	Compare	4.3	8	31.5	5.2	3	✔	✔	✔	Polycarbonate	3/4” (24.5mm) UHMWPE	310 lbs	420 lbs	140 kgs	42 inches	1,350 lbs
