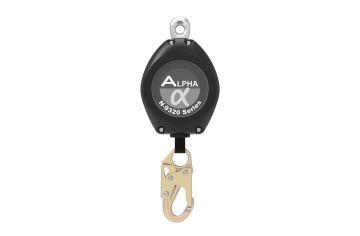

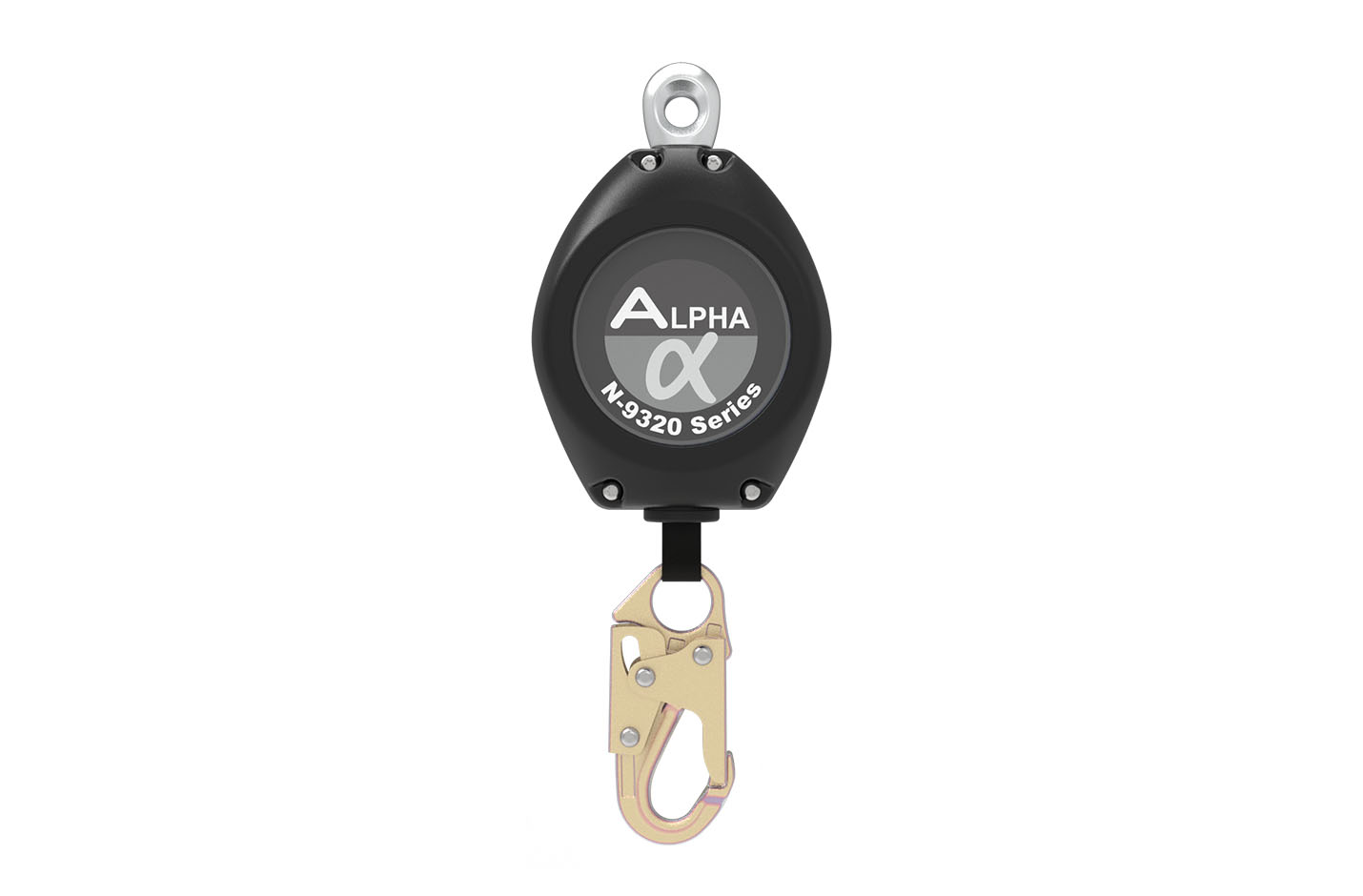

Webbing Self-Retracting Device (PFL)
Item No.N-9310/N-9320

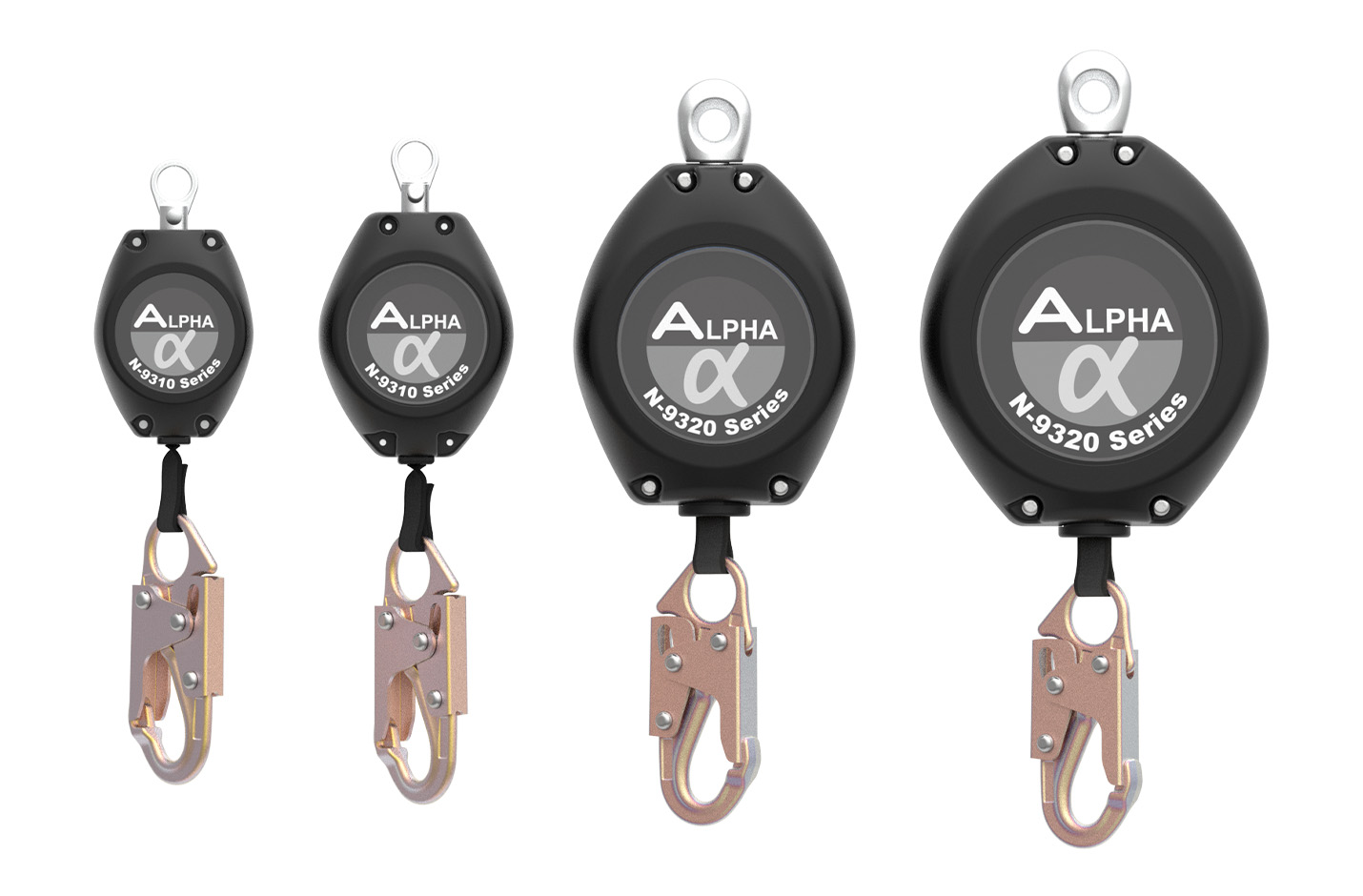

The ALPHA-Webbing Self-Retracting Device (PFL) is a lightweight and durable fall protection solution designed for working at height.
Complies with：ANSI Z359.14-2021/CE EN360-2023/CSA Z259.2.2-17
Working length：07/11/20/30 ft
Complies with：ANSI Z359.14-2021/CE EN360-2023/CSA Z259.2.2-17
Working length：07/11/20/30 ft
Class1
| Complies with | ANSI Z359.14-2021 CE EN360-2023 CSA Z259.2.2-17 |
| Housing | N-9310:Aluminum N-9320:Thermoplastic |
| Webbing | 1” (25mm) UHMWPE |
| Max Arresting Distance(ANSI) | 42 inches |
| Max Arresting Force(ANSI) | 1,350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arresting Force (EN) | 6 kN |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | EN | EN | ||||
| N-9310-07 | Compare | 1.3 | 2.1 | 396 | 86 | 71 | ✔ | ✔ | ✔ | Aluminum | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9310-11 | Compare | 1.7 | 3.3 | 414 | 104 | 76 | ✔ | ✔ | ✔ | Aluminum | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9320-20 | Compare | 2.3 | 6 | 450 | 140 | 81 | ✔ | ✔ | ✔ | Thermoplastic | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9320-30 | Compare | 3.3 | 9.1 | 470 | 180 | 86 | ✔ | ✔ | ✔ | Thermoplastic | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9320-33 | Compare | 3.7 | 10 | 470 | 180 | 86 | ✔ | ✔ | ✔ | Thermoplastic | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Webbing | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9310-07 | Compare | 2.8 | 7 | 15.6 | 3.4 | 2.8 | ✔ | ✔ | ✔ | Aluminum | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9310-11 | Compare | 3.3 | 11 | 16.3 | 4.1 | 3 | ✔ | ✔ | ✔ | Aluminum | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9320-20 | Compare | 5.1 | 20 | 17.7 | 5.5 | 3.2 | ✔ | ✔ | ✔ | Thermoplastic | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9320-30 | Compare | 7.2 | 30 | 18.5 | 7.1 | 3.4 | ✔ | ✔ | ✔ | Thermoplastic | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9320-33 | Compare | 8.1 | 33 | 18.5 | 7.1 | 3.4 | ✔ | ✔ | ✔ | Thermoplastic | Webbing:1” (25mm) UHMWPE | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
