Class 2
| Complies with | ANSI Z359.14-2021 |
| Housing | Thermoplastic |
| Cable | 7/32” (5.6 mm) Galvanized Steel |
| Max Arresting Distance(ANSI) | 42 inches |
| Max Arresting Force(ANSI) | 1,350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arresting Force (EN) | 6 kN |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |

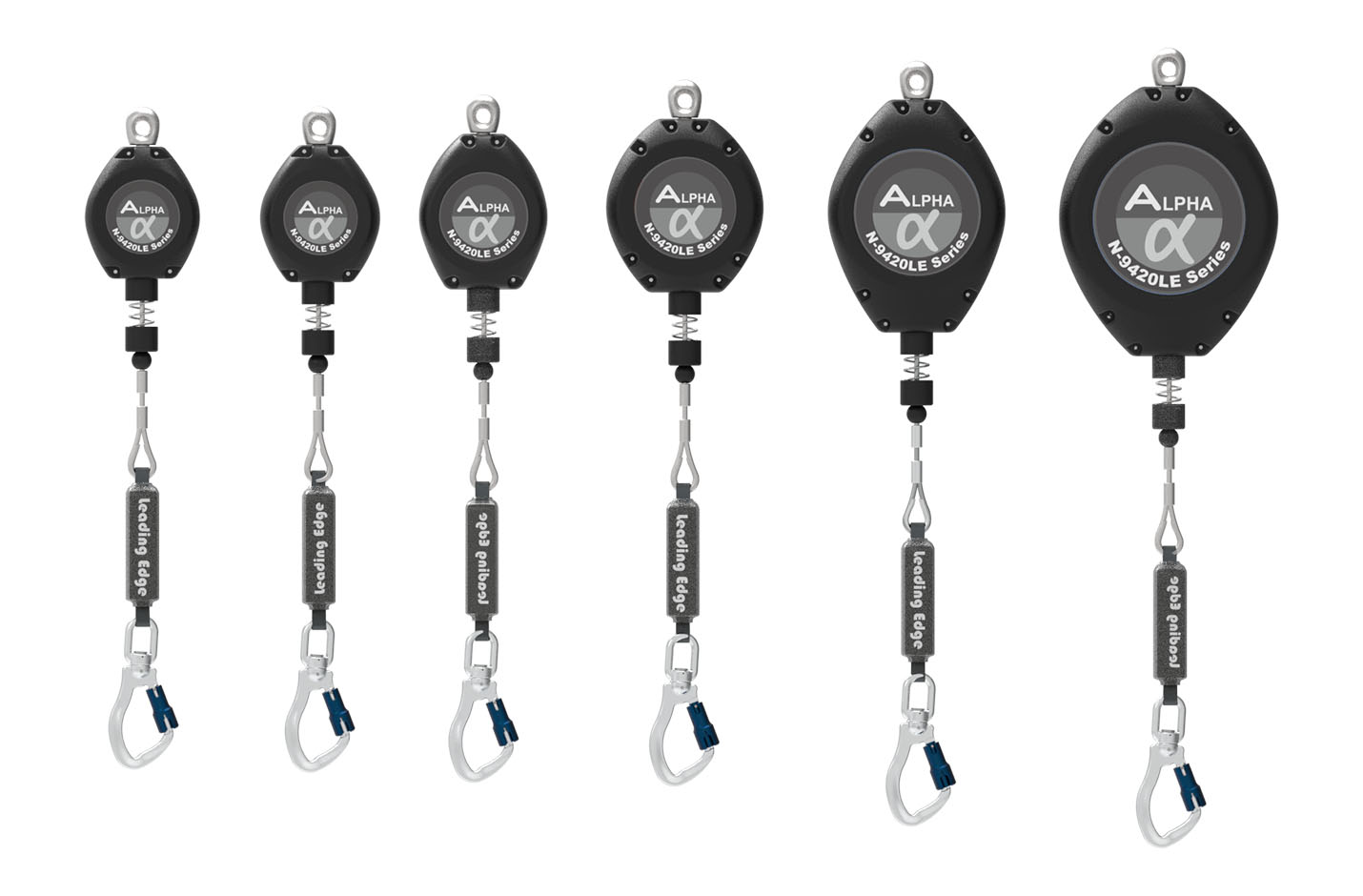

| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | Capacity | Max Arresting Distance | Max Arresting Force | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | ANSI | OSHA | EN | EN | EN | ||||
| N-9420LELW-11 | Compare | 2.7 | 3.3 | 861 | 119 | 81 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LELW-15 | Compare | 2.8 | 4.5 | 882 | 140 | 81 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LELW-20 | Compare | 3.3 | 6 | 889 | 180 | 86 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LELW-30 | Compare | 3.8 | 9.1 | 904 | 191 | 89 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LELW-50 | Compare | 6.7 | 15 | 985 | 236 | 97 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LELW-66 | Compare | 9 | 20 | 1026 | 259 | 97 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | Capacity | Max Arresting Distance | Max Arresting Force | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | ANSI Z359.14-2021 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9420LELW-11 | Compare | 6 | 11 | 33.9 | 4.7 | 3.2 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LELW-15 | Compare | 6.2 | 15 | 34.7 | 5.5 | 3.2 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LELW-20 | Compare | 7.2 | 20 | 35 | 7.1 | 3.4 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LELW-30 | Compare | 8.3 | 30 | 35.6 | 7.5 | 3.5 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LELW-50 | Compare | 14.8 | 50 | 38.8 | 9.3 | 3.8 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LELW-66 | Compare | 19.8 | 66 | 40.4 | 10.2 | 3.8 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
