| Complies with | CE EN360-2023 |
| Housing | Thermoplastic |
| Cable | 3/16” (4.8mm) Galvanized Steel |
| Max Arresting Distance(ANSI) | 42 inches |
| Max Arresting Force(ANSI) | 1,350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arresting Force (EN) | 6 kN |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |

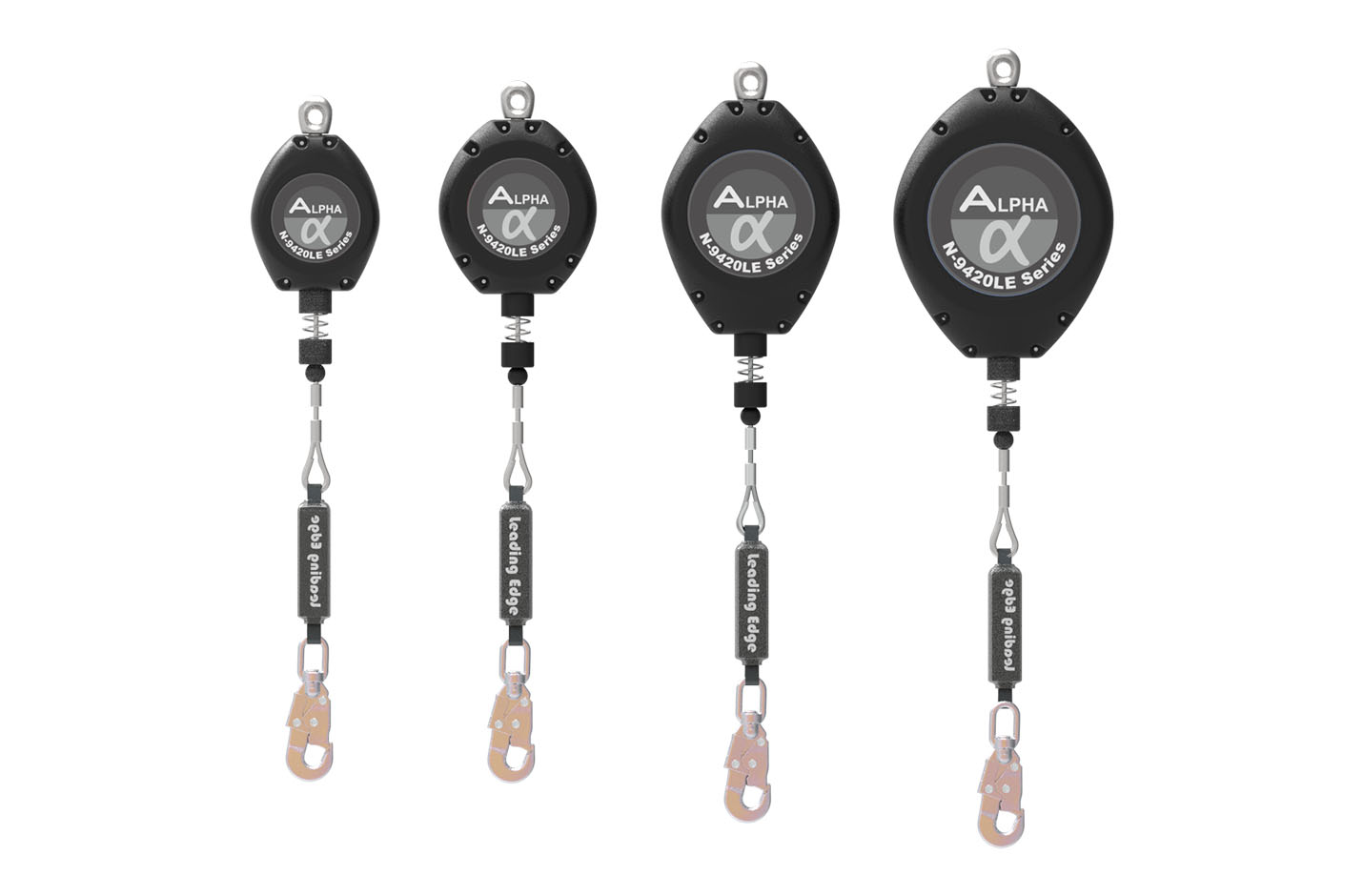

| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | Capacity | Max Arresting Distance | Max Arresting Force | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | EN360-2023 | ANSI | OSHA | EN | EN | EN | ||||
| N-9420LECE-20 | Compare | 3.5 | 6 | 889 | 180 | 86 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LECE-33 | Compare | 4 | 10 | 904 | 191 | 89 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LECE-50 | Compare | 7 | 15 | 985 | 236 | 97 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9420LECE-66 | Compare | 9.2 | 20 | 1026 | 259 | 97 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | Capacity | Max Arresting Distance | Max Arresting Force | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | EN360-2023 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9420LECE-20 | Compare | 7.7 | 20 | 35 | 7.1 | 3.4 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LECE-33 | Compare | 8.8 | 33 | 35.6 | 7.5 | 3.5 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LECE-50 | Compare | 15.4 | 50 | 38.8 | 9.3 | 3.8 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9420LECE-66 | Compare | 20.3 | 66 | 40.4 | 10.2 | 3.8 | ✔ | Thermoplastic | 7/32” (5.6 mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
