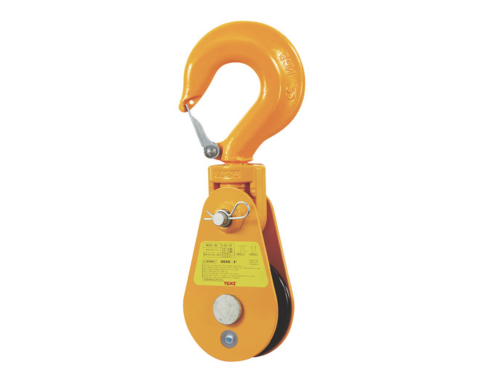

Alloy Snatch Block with Hook
Item No.8-562
● YOKE Alloy Snatch Blocks are manufactured from high-quality alloy steel
● Available with a capacity of 12 tonnes, suitable for wire rope sizes 3/4" to 7/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available with a capacity of 12 tonnes, suitable for wire rope sizes 3/4" to 7/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

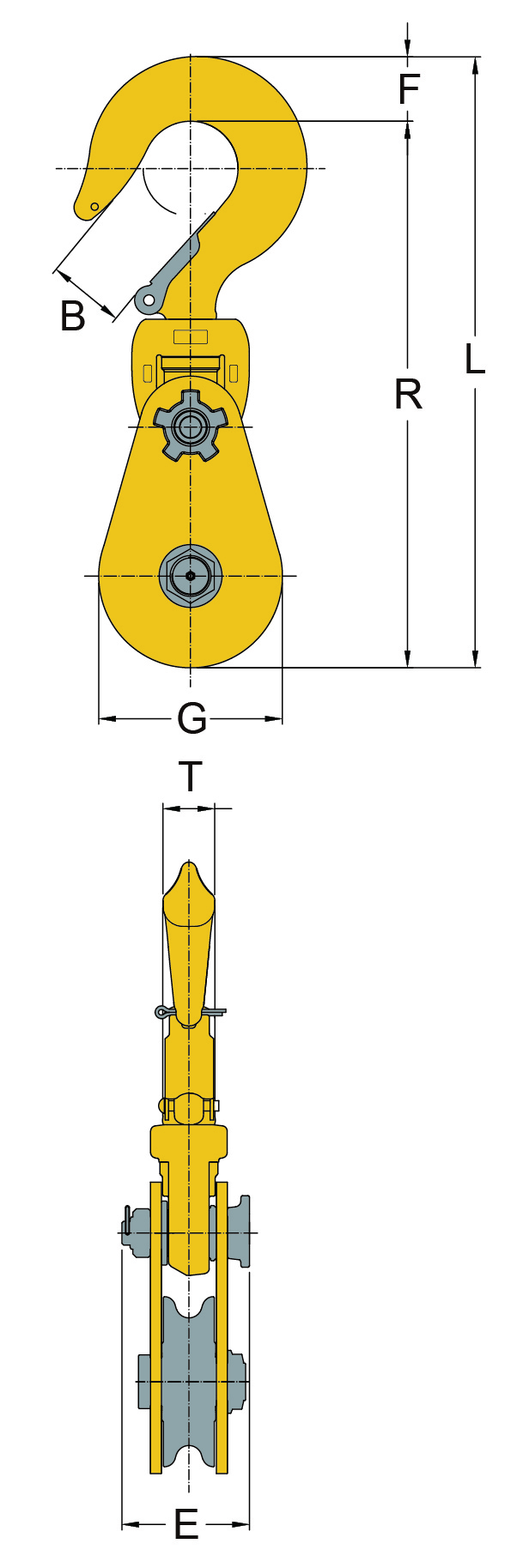

| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | mm | E | F | G | L | R | T | kg | |||
| 8-562-12 | Compare | 12 | 152 | **BB | 19-22 | 112 | 61 | 152 | 488 | 427 | 40 | 14 |
| 8-562-1208 | Compare | 12 | 203 | BB | 19-22 | 112 | 61 | 220 | 559 | 498 | 40 | 17 |
| 8-562-1210 | Compare | 12 | 254 | BB | 19-22 | 112 | 61 | 264 | 604 | 543 | 40 | 21 |
| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | inch | E | F | G | L | R | T | lbs | |||
| 8-562-12 | Compare | 12 | 6 | **BB | 3/4-7/8 | 4.41 | 2.4 | 5.98 | 19.21 | 16.81 | 1.57 | 31 |
| 8-562-1208 | Compare | 12 | 8 | BB | 3/4-7/8 | 4.41 | 2.4 | 8.66 | 22.01 | 19.61 | 1.57 | 37 |
| 8-562-1210 | Compare | 12 | 10 | BB | 3/4-7/8 | 4.41 | 2.4 | 10.39 | 23.78 | 21.38 | 1.57 | 46 |
