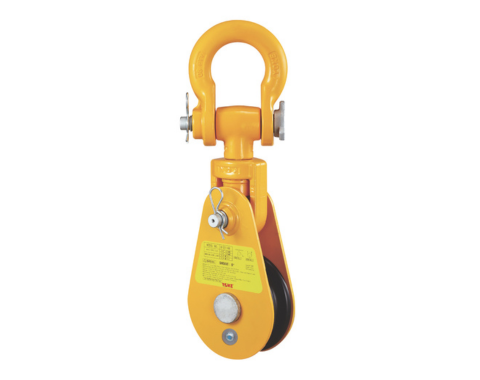

Alloy Snatch Block with Shackle
Item No.8-561
● YOKE Super Snatch Blocks are manufactured from high-quality high-tensile steel
● Available with a capacity of 20 tonnes, suitable for wire rope sizes 1" to 1-1/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available with a capacity of 20 tonnes, suitable for wire rope sizes 1" to 1-1/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

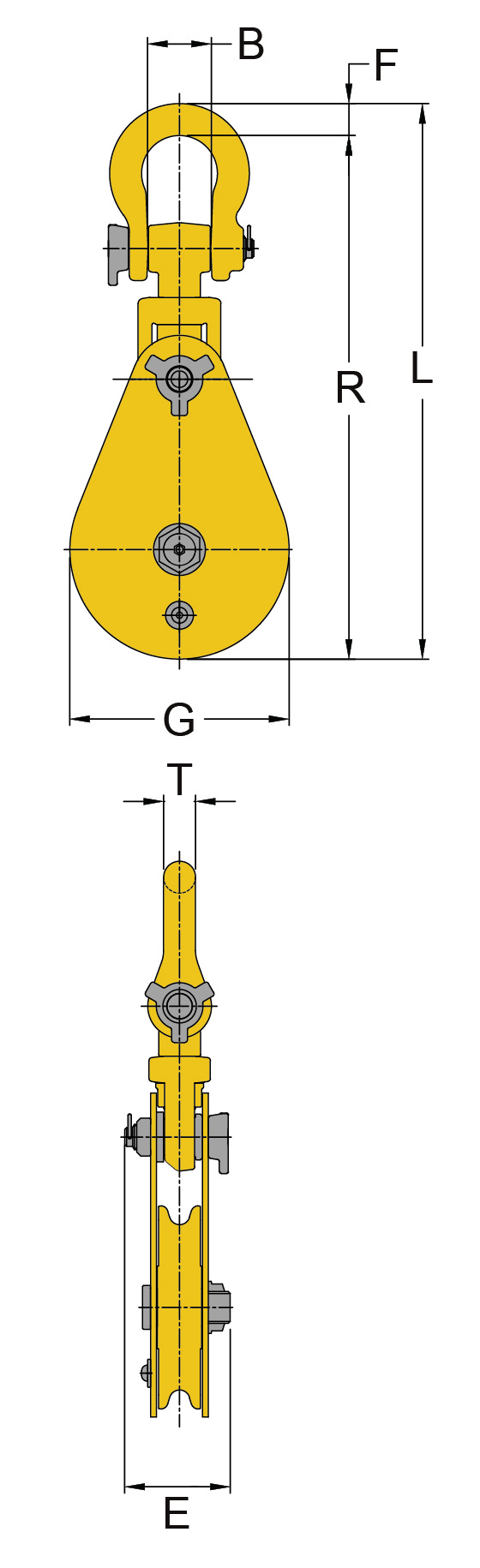

| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | mm | E | F | G | L | R | T | kg | |||
| 8-561-12 | Compare | 12 | 152 | **BB | 19-22 | 112 | 32 | 152 | 483 | 483 | 32 | 13 |
| 8-561-1208 | Compare | 12 | 203 | BB | 19-22 | 112 | 32 | 220 | 554 | 554 | 32 | 17 |
| 8-561-1210 | Compare | 12 | 254 | BB | 19-22 | 112 | 32 | 264 | 598 | 598 | 32 | 21 |
| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | inch | E | F | G | L | R | T | lbs | |||
| 8-561-12 | Compare | 12 | 28 | **BB | 3/4-7/8 | 4.41 | 1.26 | 5.98 | 19.02 | 17.76 | 1.26 | 28 |
| 8-561-1208 | Compare | 12 | 37 | BB | 3/4-7/8 | 4.41 | 1.26 | 8.66 | 21.81 | 20.55 | 1.26 | 37 |
| 8-561-1210 | Compare | 12 | 46 | BB | 3/4-7/8 | 4.41 | 1.26 | 10.39 | 23.54 | 22.28 | 1.26 | 46 |
